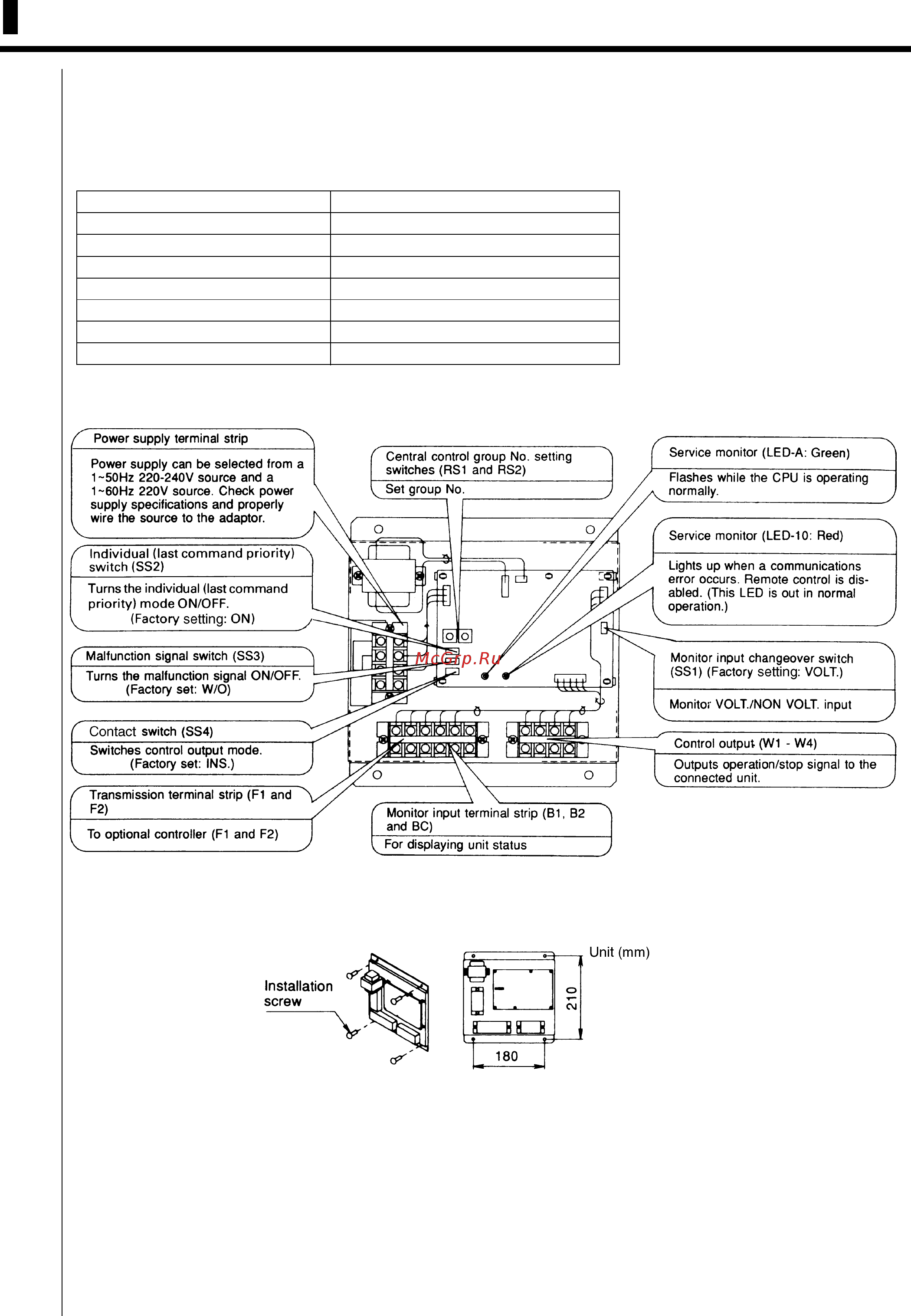

108 2.1 Wiring Adaptor for Other Air Conditioners <DTA103A51>
Adaptor ED721208
2. Adaptor for Other Equipment
2.1 Wiring Adaptor for Other Air Conditioners <DTA103A51>
2.1.1 Function
This kit contains an I/O interface adaptor for centralized control equipment, used when there is a non-connectable air
conditioner and electrical equipment. When connected to the centralized control equipment, this adaptor enables
operation/stop and display of operation/error monitors from the centralized control equipment.
2.1.2 Part Names and Functions
2.1.3 Installation
Securely install the adaptor with the attached installation screw.
Note:
Install the adaptor inside a control box of outer dimensions: 230W × 230D × 60H.
Supply a control box at site with outer dimensions equal to or larger than those shown below. 230W × 230D × 60H.
2PA53853
Item DTA103A51
ON/OFF Possible
Temp. setting Impossible
Airflow rate setting Impossible
Airflow direction setting Impossible
Mode setting Impossible
Filter sign reset Impossible
Inspection/Test operation Operation & Error display only by lamps
