252
Commissioning Manual ED721208
Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
47
(1)

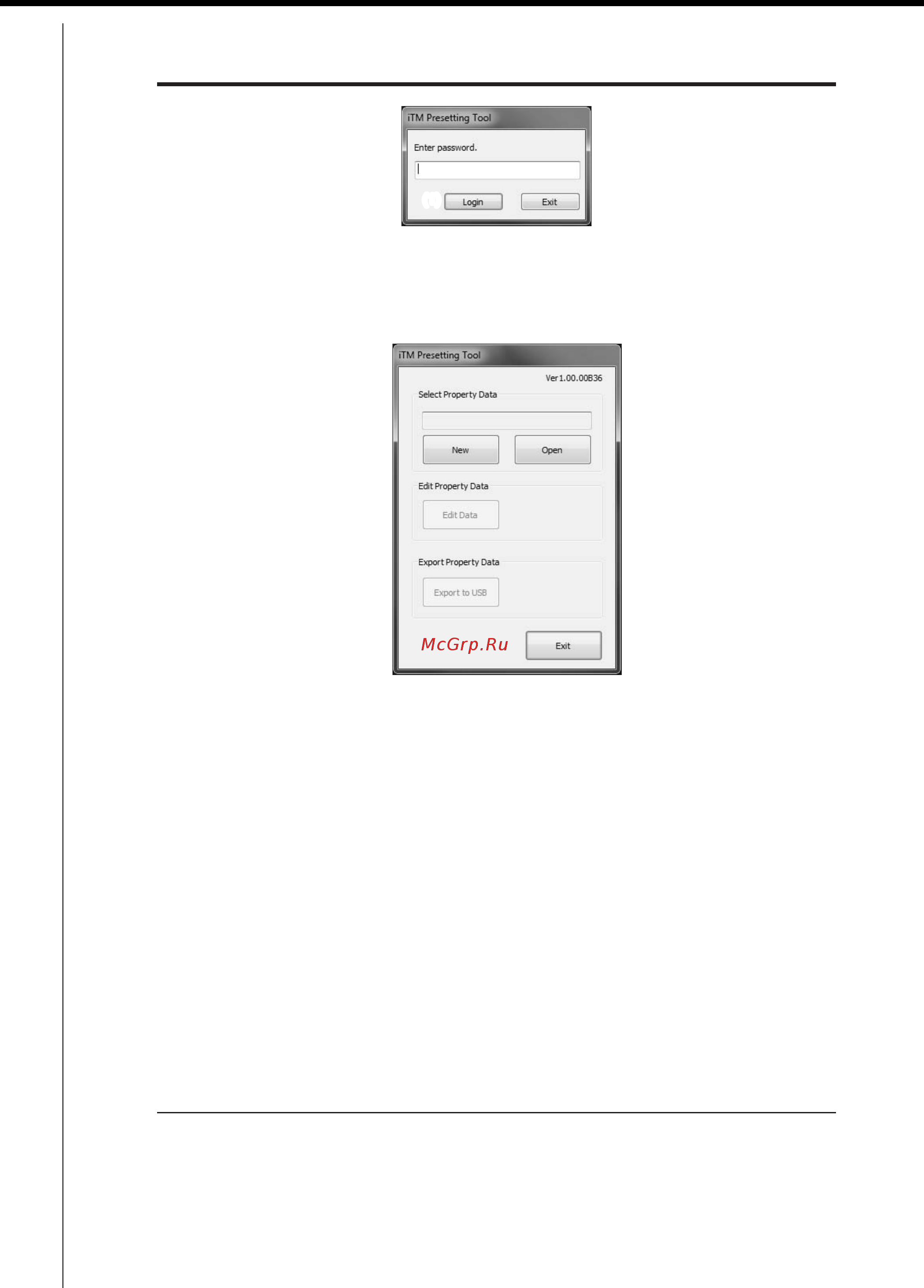

2. On the login screen that appears, enter the password and click the Login button (1).
The iTM Pre-engineering tool main screen appears if the correct password has been provided.
Main screen
