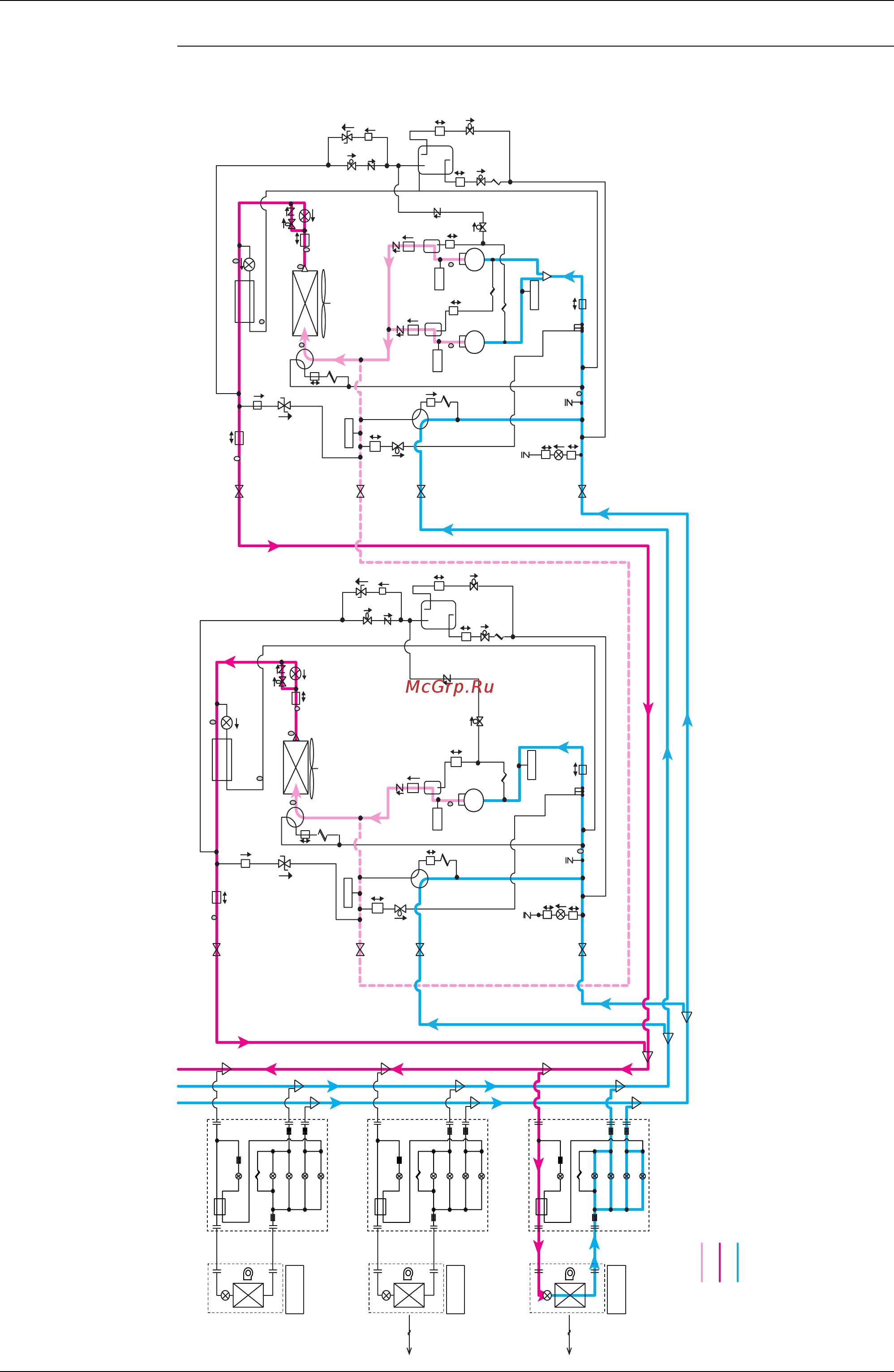

SiBE37-701_B Refrigerant Flow for Each Operation Mode
Refrigerant Circuit 92
REYQ18P, 20P
Cooling Operation
Indoor Unit
Fan "OFF"
Cooling
Unit
Operation "OFF"
BS Unit
Fan "ON"
Operation "ON"
Thermostat "OFF"
Cooling
Unit
Fan "ON"
Cooling
Unit
Operation "ON"
Thermostat "ON"
"High temperature, high pressure gas"
"High temperature, high pressure liquid"
"Low temperature, low pressure"
REMQ8P (Multi 8HP)
Liquid Pipe
Stop Valve Tsc
TL
EVT
Tsh
SVE
Tb
Tg
Tf
EVM
INVFAN
20SA
Equalizing Pipe
Stop Valve
Dual Pressure Gas
Pipe Stop Valve
S1NPH
SVP
20SB
S1PH
Tdi
INV
Suction Pipe
Stop Valve
EVJ
Gau ge
Port
TS_A
S2NPL
SVT
SVL
SVO
Refrigerant
Regulator
SVG
REMQ10, 12P (Multi 10, 12HP)
Liqui d Pipe
Stop Valve
Tsc
TL
EVT
Tsh
Equalizing Pipe
Stop Valve
Dual Pressure Gas Pipe
Stop Valve
S1NPH
SVP
20SB
SVE
Tb
Tf
EVM
INVFAN
Tg
20SA
Suction Pipe
Stop Valve
EVJ
Gau ge
Port
TS_A
S1PH
Tdi
INV
S2NPL
S2PH
Tds1
S1
SVT
SVL
Refrigerant
Regulator
SVG
SVO
EVSC
EVHS
EVH
EVL S
EVL
EVSC
EVHS
EVH
EVL S
EVL
EVSC
EVHS
EVH
EVL S
EVL
