15
GB

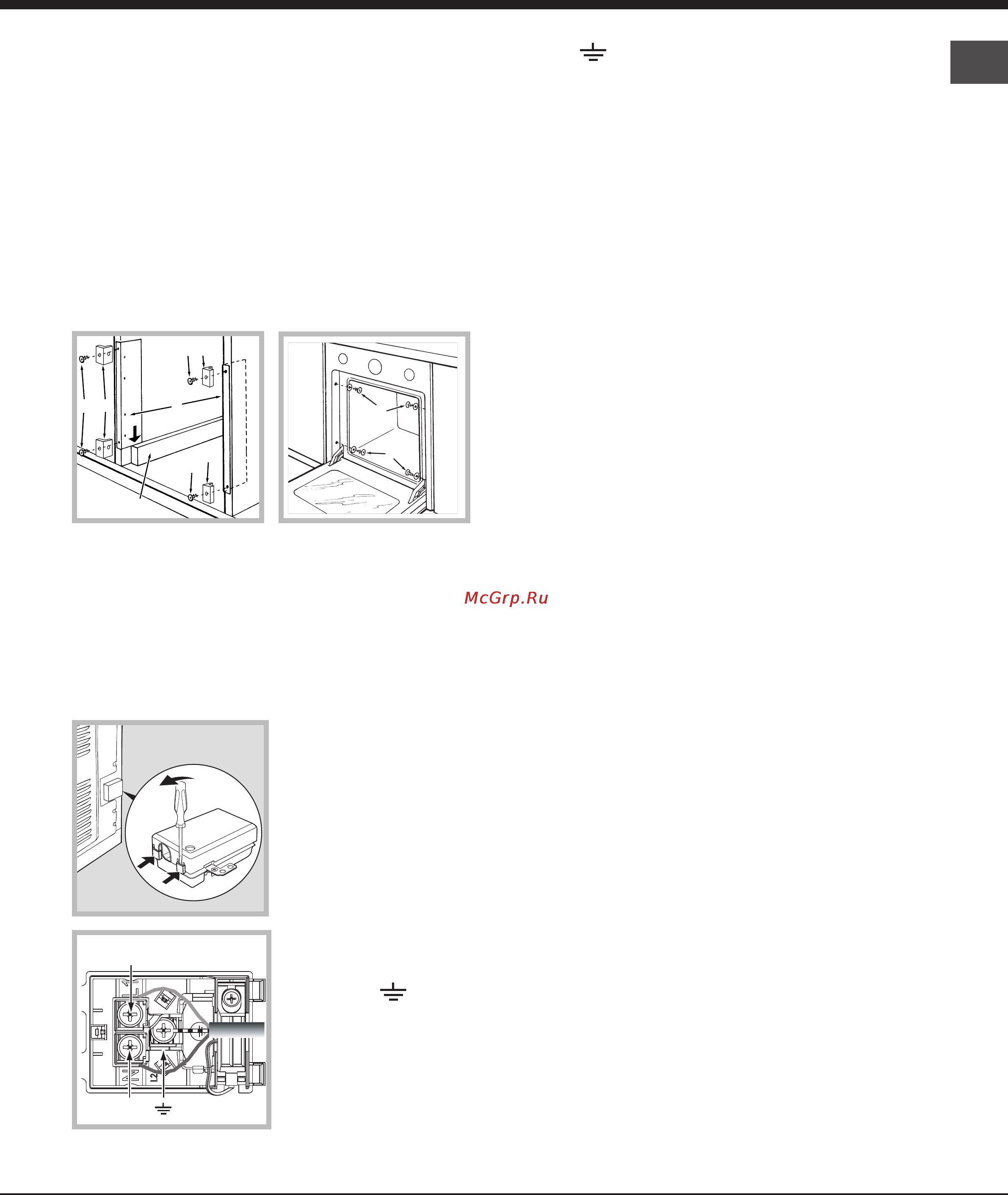

Centring and fixing*
1. Position brackets
“A”“A”
“A”“A”
“A” against oven support
“
BB
BB
B”.
2. Position tabs
“C”“C”
“C”“C”
“C” against brackets
“A” “A”
“A” “A”
“A”. If the
thickness of the cabinet side panel:
• is 16 mm thick: place the tab so that the
number 16 written on it is facing you;
• is 18 mm thick: place the tab so that the part
without any text is facing you;
• is 20 mm thick: do not fit the tab.
3. Fix the brackets and tabs onto the edge of the
cabinet side panel using screws
“D”.“D”.
“D”.“D”.
“D”.
4. Fix the oven to the cabinet using the screws and
plastic washers
“E” “E”
“E” “E”
“E”.
Electrical connections
! Ovens equipped with a three-pole power supply
cable are designed to operate with alternating
current at the voltage and frequency indicated on
the data plate located on the appliance (
see below
).
Fitting the power supply cable
1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(
see diagram
).
2. Install the power
supply cable by
loosening the cable
clamp screw and the
three wire contact
screws L-N-
.
Connect the wires to
the corresponding
terminals: the Blue wire
to the terminal marked
(N), the Brown wire to
the terminal marked (L)
and the Yellow/Green
wire to the terminal
marked
(
see diagram
).
3. Secure the cable by fastening the clamp screw.
4. Close the cover of the terminal board.
Connecting the supply cable to the mains
Install a standardised plug corresponding to the
load indicated on the data plate (
see side
).
The appliance must be directly connected to the mains
using an omnipolar circuit-breaker with a minimum
contact opening of 3 mm installed between the
appliance and the mains, suitable for the load indicated
and complying with current electrical regulations (the
earthing wire must not be interrupted by the circuit-
breaker). The supply cable must not come into contact
with surfaces with temperatures higher than 50°C.
! The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
Before connecting to the power supply, make sure that:
• The appliance is earthed and the plug is compliant
with the law.
• The socket can withstand the maximum power of
the appliance, which is indicated on the data plate
(
see below
).
• The voltage must be in the range between the
values indicated on the data plate (
see below
).
• The socket is compatible with the plug of the
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (
see Assistance
).
! The manufacturer declines any liability should
these safety measures not be observed.
* Only on certain models.
E
E
D
A
B
D
D
16
16
16
16
C
C
C
N
L
