PLANET IP PBX user’s manual

6.2 Voice communication via IP PBX system – IPX-1800N (Auto-config)

In the following sample, we’ll introduce how to integrate the client with our IP PBX system IPX-1800N

via Auto-config feature.

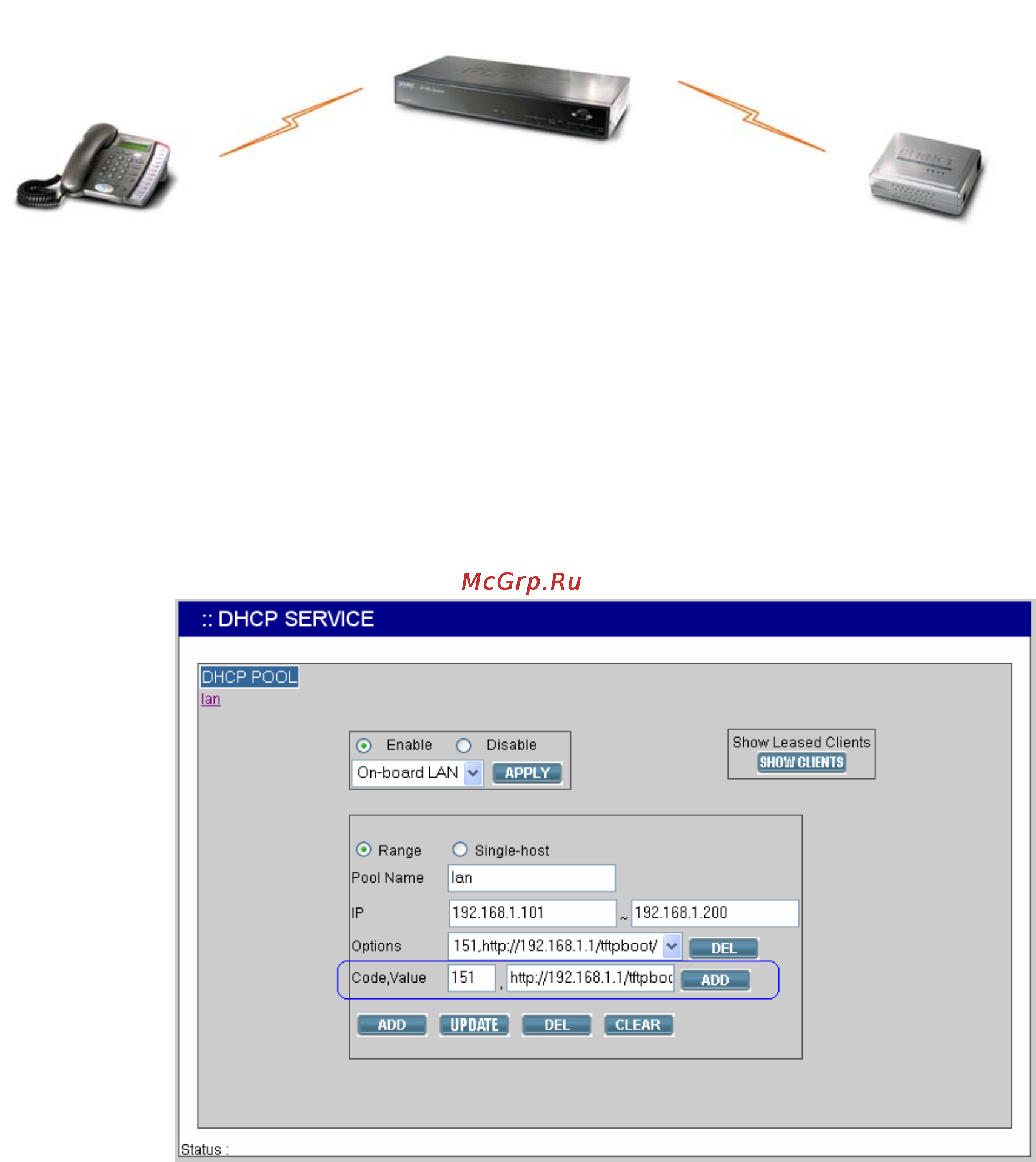

Machine configurations on the IPX-1800N

STEP 1:

configuration.

Code: please insert 151 as the DHCP server option.

Value: http://LAN IP for IPX-1800N/tftpboot

If you’d like to enable auto-config for IP extension features in IPX-1800N, please be sure to setup the

DHCP option code and the value information.

In most case, insert the optional code 151 and the value=http://192.168.1.1/tftpboot/

IPX-1800 LAN IP Address: 192.168.1.1

Registration /

Authentication

Registration /

Authentication

 VIP-153PT IP Address: 192.168.1.2

Line Number: 1001

 VIP-156 IP Address: 192.168.1.3

Line Number: 2002
