“Delete Length” is the number of digits that will be stripped from beginning of the dialed
number.
“Add Digit Number” is the digits that will be added to the beginning of the dialed number.
“Destination IP Address / Domain Name” is the IP address / Domain Name of the
destination gateway that owns this phone number.

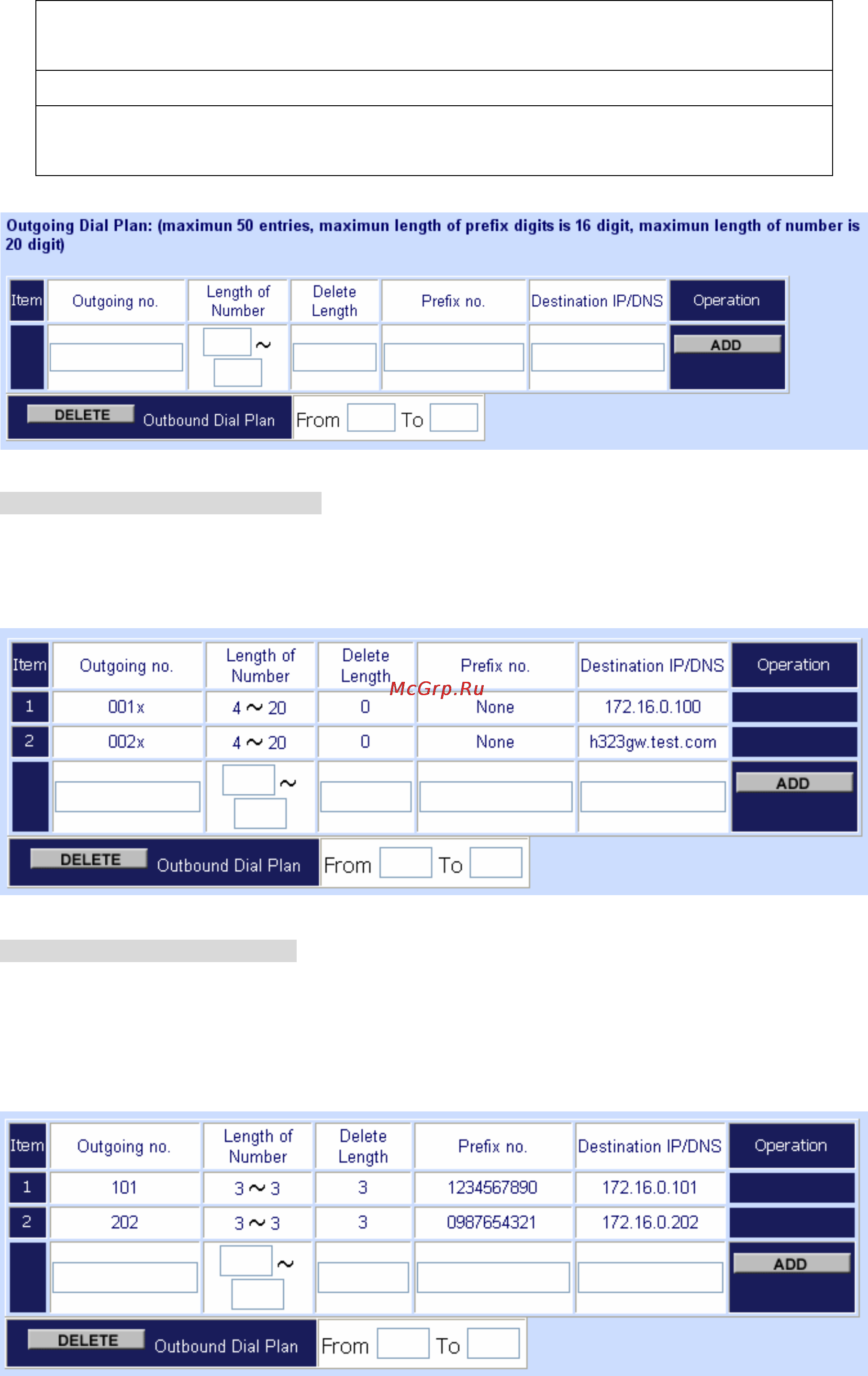

Scenario description: Normally dial
001x leading call out, call to destination IP address: 172.16.0.100
002x leading call out, call to destination domain name: h323gw.test.com
Scenario description: Speed dial
If user dials “101”, the gateway automatically dials “1234567890” to destination IP address:
172.16.0.101
If user dials “202”, the gateway automatically dials “0987654321” to destination IP address:
172.16.0.202
