66

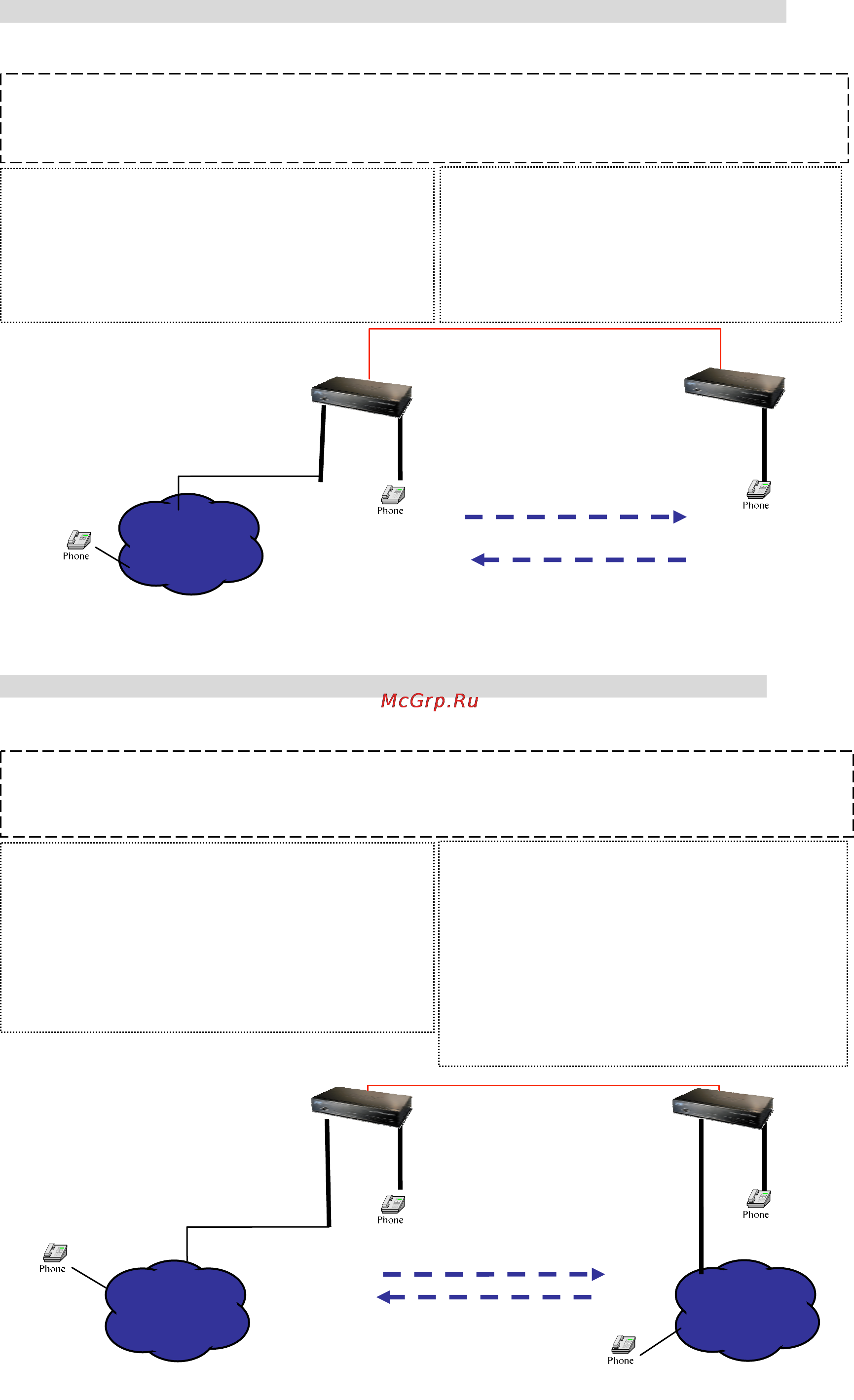

Scenario 17: Gateway 2 to Gateway 1 (Remote Call PSTN number) PLAR connection
Call Method: One-Shot-Dialing
Scenario 18: Gateway 2 to Gateway 1 (PSTN Call PSTN number) PLAR connection
Call Method: One-Shot-Dialing
Gateway#1 Gateway#2
801
02-12345678
Outgoing Dial plan
No: 8x | Digit: 3~3, Des | GW2 IP address
Incoming Dial Plan
No: 02x | Digit: 3~10 | Strip:2 | FXO port
801
WAN
SIP Call (Peer-To-Peer Mode) : Remote Call PSTN number
Method: One-Shot-Dialing
Outgoing Dial plan
No: 9x | Digit: 3~3 | Des: GW1 IP address
No: 6x | Digit: 3~3 | Des: GW1 IP address
No: 02x| Digit: 3~10 | Des: GW 1 IP address
x: wild card
Des: Destination IP
901
PSTN
FXO
02-12345678
Gateway#1 Gateway#2
Outgoing Dial plan
No: 8x | Digit: 3~3, Des | GW2 IP address
No: 04x| Digit: 3~10 | Des: GW2 IP address
Incoming Dial Plan
No: 02x | Digit:3~10 | Strip :2 | FXO port
801
WAN
SIP Call (Peer-To-Peer Mode) : PSTN Call PSTN number
Method: One-Shot-Dialing
Outgoing Dial plan
No: 9x | Digit: 3~3 | Des: GW1 IP address
No: 6x | Digit: 3~3 | Des: GW1 IP address
No: 02x| Digit: 3~10 | Des: GW 1 IP address
Incoming Dial Plan
No: 04x | Digit: 3~10 | Strip:2 | FXO port
x: wild card
Des: Destination IP
901
PSTN
FXO
02-12345678
PSTN
04-12341234
FXO
56785678, 02-12345678
04-12341234
04-56785678
02-87654321
