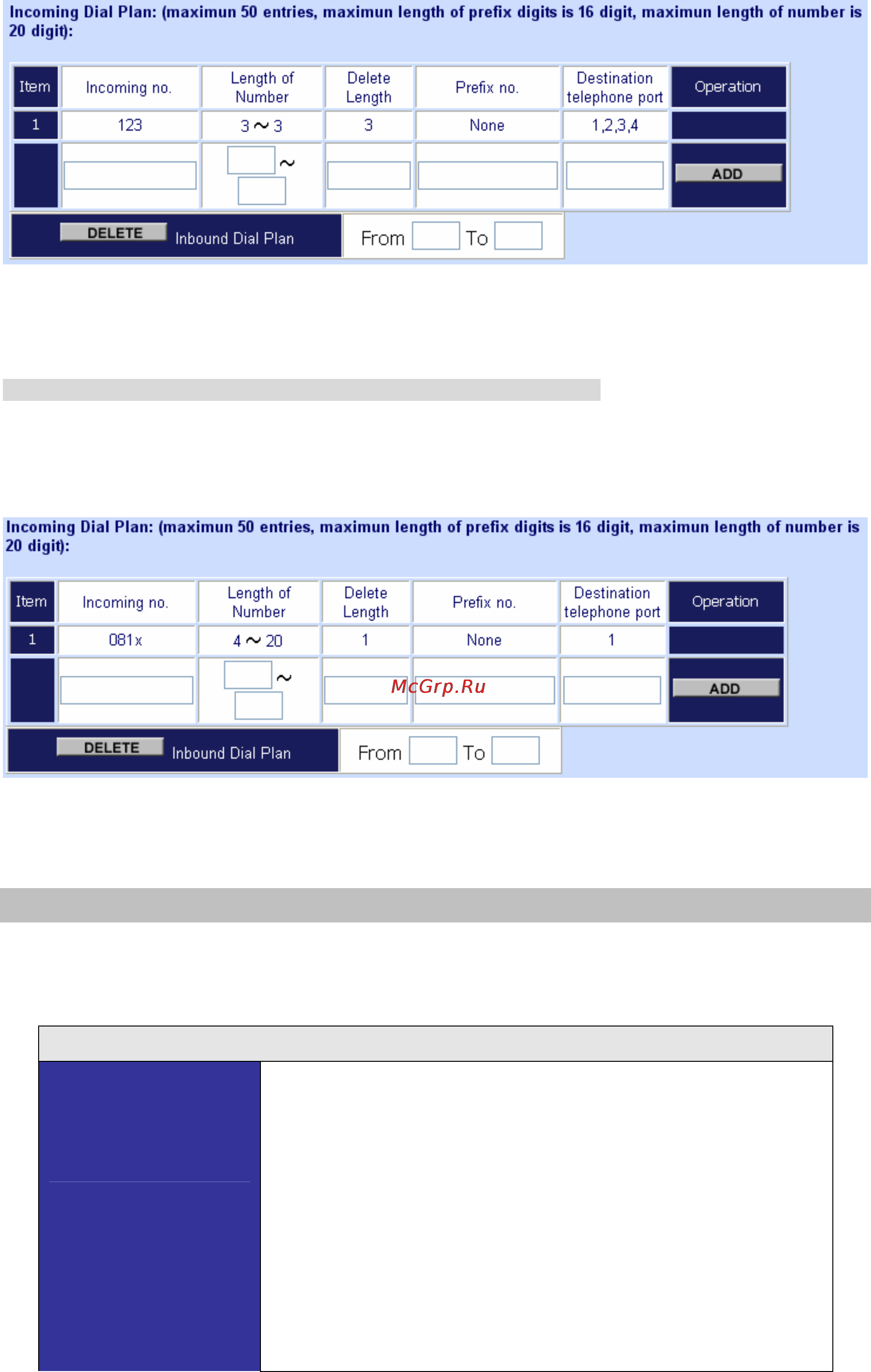

Planet VIP-1680FS [46/91] Advance setting to sip protocol

Note: “123” will be NOT register to SIP proxy server when gateway is registering SIP proxy server

mode

Scenario description: Termination call to FXO for one-shoot call

Port 1: FXO was connected to PSTN (area code is 81xxxxxxxx).

SIP leading number “081x” incoming, and delete the first one digit “0”, and call to PSTN number.

Note: “081x” will be NOT register to SIP proxy server when gateway is registering SIP proxy server

mode.

Advance Setting to SIP protocol

In Advanced Setting, VIP-GW provides user three major parts function to configure:

One is “VoIP Advance”, the other one is “Telephone Advance” and “Network Advance”

SIP VoIP Advance Configurtion

DTMF Method for SIP

After the VoIP call is connected, when you dial a digit, this digit is

sent to the other side by DTMF tone. There are three methods of

sending the DTMF tone. The first one is “in band”, that is, sending

the DTMF tone in the voice packet. The second one is

“RFC2833”, that is, sending the DTMF tone as a RTP payload

signal. The third one is “SIP Info”, that is, sending the DTMF tone

as a SIP signal. Sending DTMF tone as a signal could tolerate

more packet loss caused by the network. If this selection is

enabled, the DTMF tone will be sent as a signal.
