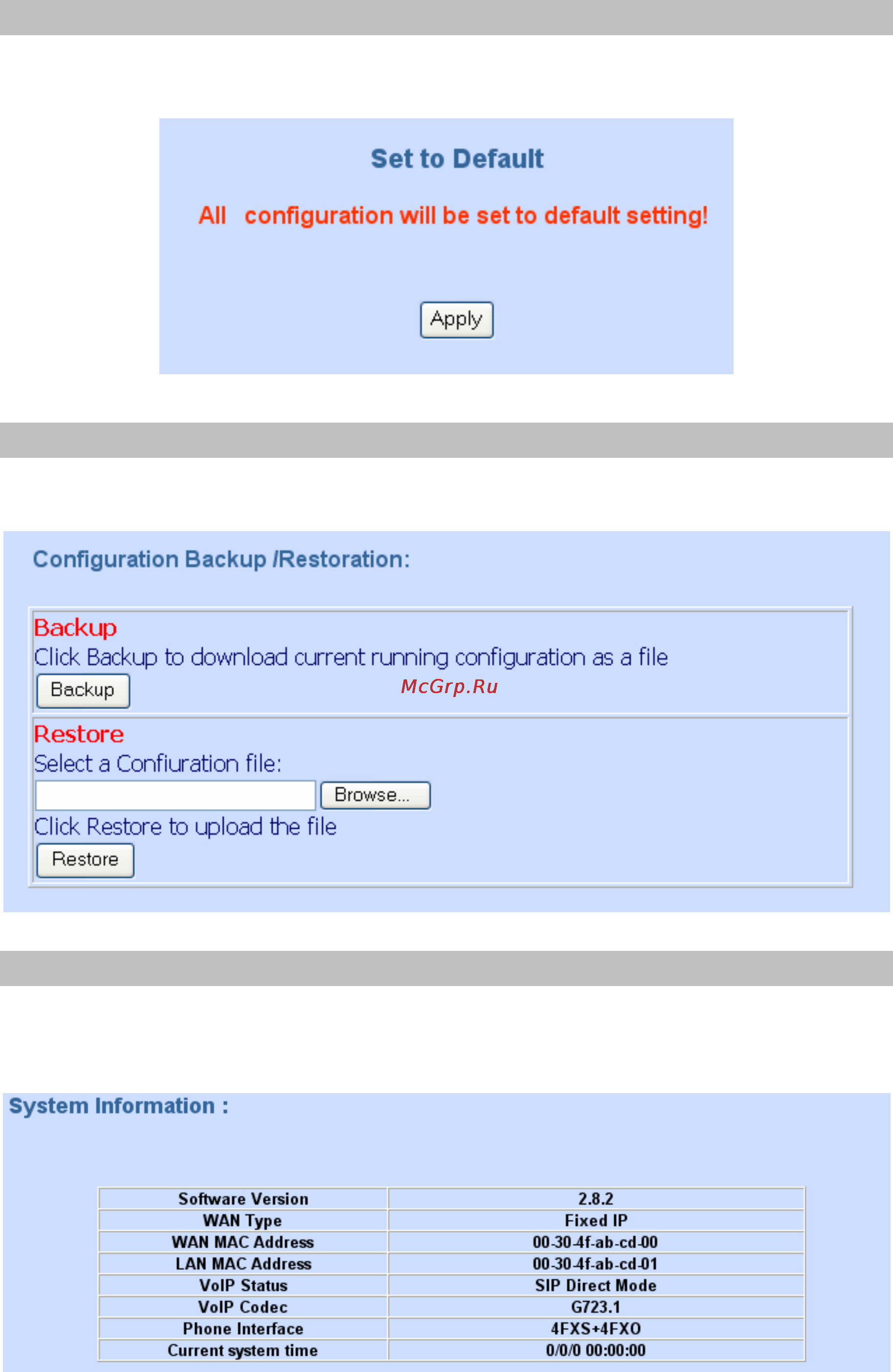

Set To Default Configuration
If you want to reboot the router using factory default configuration, click “Apply” then reset the
router’ s settings to default values.
Backup/Restore Configuration to a File
User can backup the configuration to a File at Microsoft Operation System. And also restore the
configuration file to the VIP-GW from PC.
System Information Display Function
Click System Information Display to open the Online Status page. In the example, on the foll
owing page, both PPPoE connections is up on the WAN interface, H323/SIP Status, MAC addr
ess, Register Status.., etc.
