9
Package Content
The contents of your product should contain the following items:
¾ The VoIP Gateway
¾ Power adapter (2 / 4 / 8-port model) / Power cord (16 / 24-port model)
¾ Quick Installation Guide
¾ User’s Manual CD
¾ RJ-45 cable x 1
¾ RS-232 cable x 1 (8 / 16 / 24-port model)
¾ 25 port Telephone Cable x 1 (16 / 24-port model)
¾ Rack mount brackets x 2 (16 / 24-port model)
Physical Details

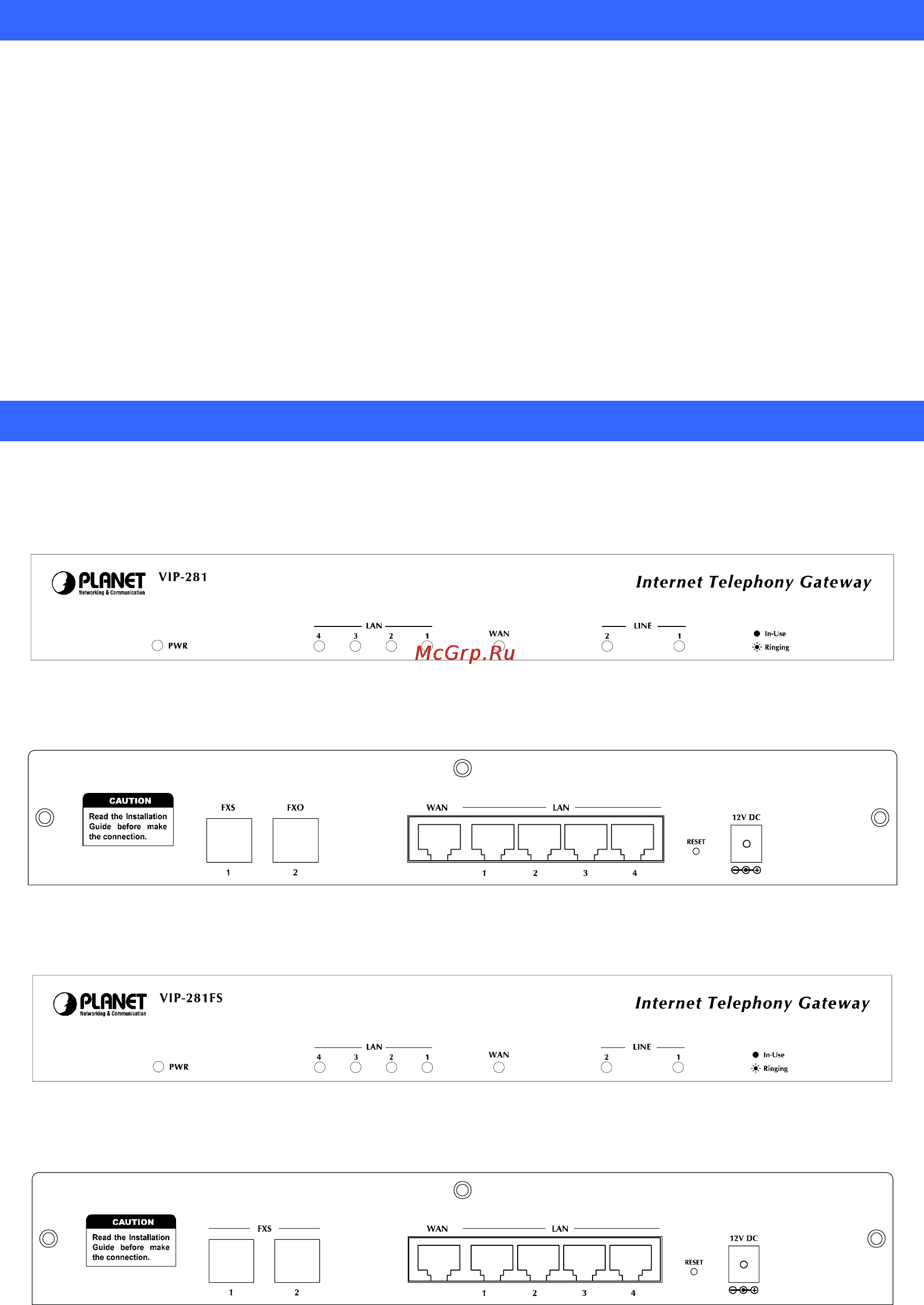

The following figure illustrates the front/rear panel of VIP-GW series:
Front Panel of VIP-281
Rear Panel of VIP-281
Front Panel of VIP-281FS
Rear Panel of VIP-281FS
