Troubleshooting by Indication on the Remote Controller Si34-803_B
301 Troubleshooting
3.32
“
J7
”
Outdoor Unit: Malfunction of Liquid Pipe Thermistor
(R6T)
Remote
Controller
Display
J7
Applicable
Models
RXYQ5P(A)~54P(A)
Method of
Malfunction
Detection
Malfunction is detected according to the temperature detected by liquid pipe thermistor.
Malfunction
Decision
Conditions
When the liquid pipe thermistor is short circuited or open circuited.
Supposed
Causes
Faulty liquid pipe thermistor (R6T)
Faulty outdoor unit PCB
Defect of thermistor connection

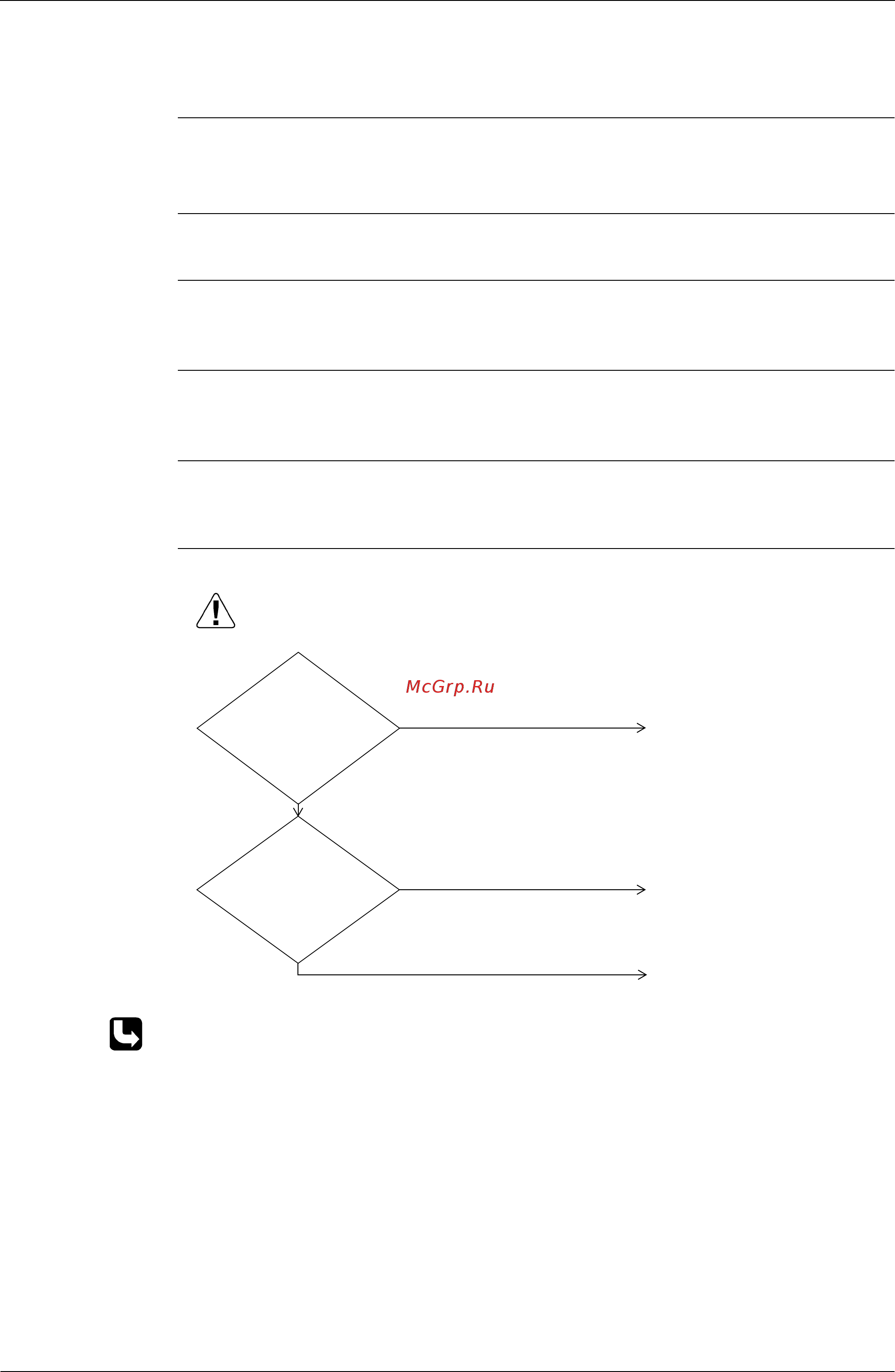

Troubleshooting
∗
Refer to “Thermistor Resistance / Temperature Characteristics” table on P.426.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the
resistance
measured after
removing the thermistor
(R6T) from outdoor unit
PCB normal?
(1.8kΩ to
800kΩ)
Replace the outdoor unit PCB
(A1P).
Connect the connector and
operate the unit again.
NO
NO
Replace the thermistor (R6T).
YES
YES
Is
the connector
for liquid pipe
thermistor connected to
X30A on outdoor
unit PCB
(A1P)?
