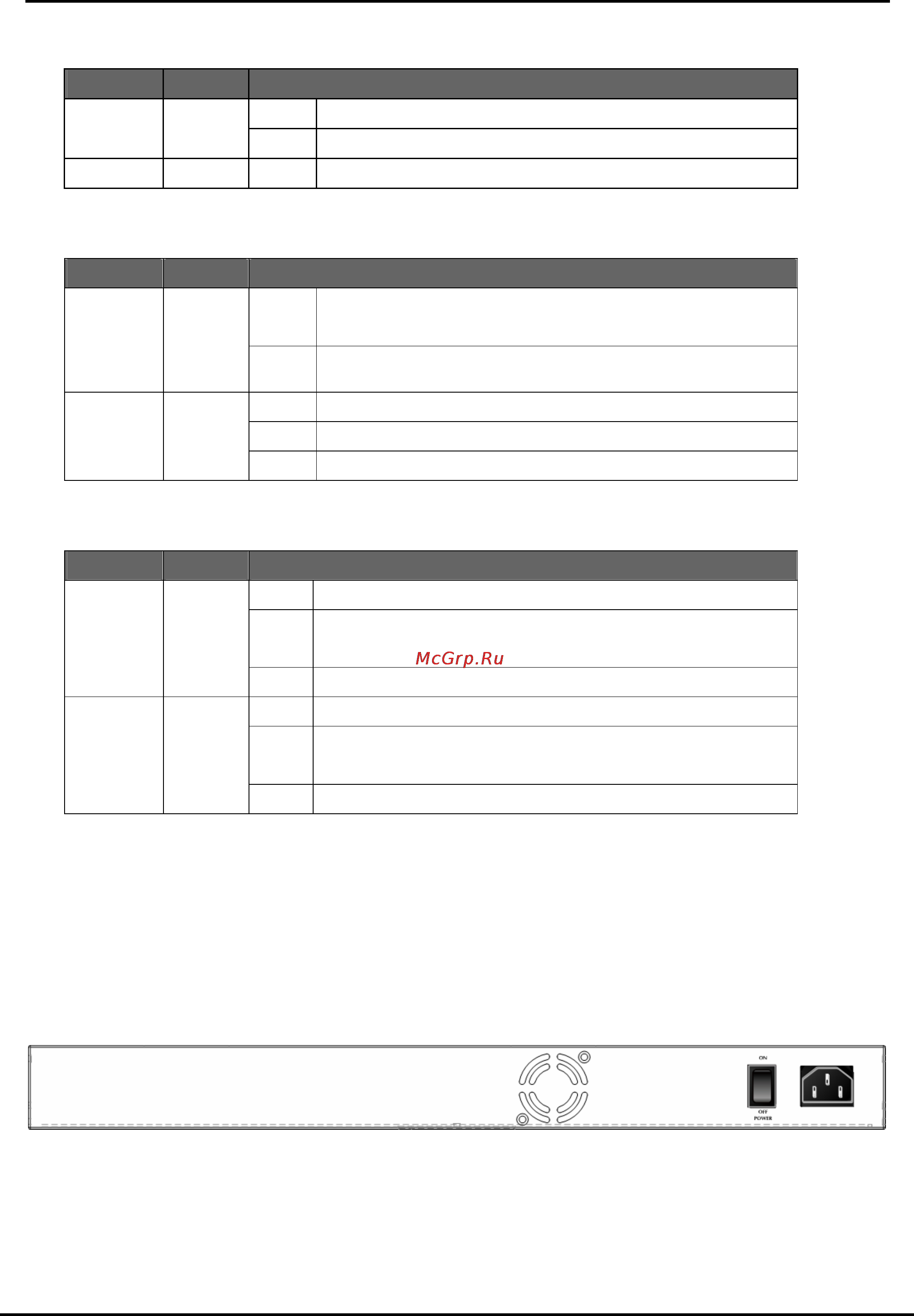

User’s Manual of VC-810S / VC-810S48
12
■ System
LED Color Function
Lit: Indicate that the VDSL2 Switch is powered on.
PWR Green
Off: Indicate that the VDSL2 Switch is powered off.
SYS Orange Lit: Lights to indicate the system is working.
■ Per VDSL Interface ( Port-1 to Port-8)
LED Color Function
Blink:
Indicate that the DATA link is actively sending or receiving data
over that VDSL port.
Data ACT Green
Off: Indicate that the port is link down or no data active on this port.
Lit: Indicate that the VDSL link is established.
Blink: Indicate that the VDSL is at training status with remote CPE.
VDSL
LNK/Sync
Orange
Off: Indicate that the VDSL is link down.
■ 10/100/1000Base-T Copper / 1000Base-SX/LX SFP Interface (Port-9)
LED Color Function
Lit: Indicate that the port is link up.
Blink: Indicate that the VDSL2 Switch is actively sending or receiving data
over that port.
1000
LNK/ACT
Green
Off: Indicate that the port is link down or operate at 10Mbps or 100Mbps.
Lit: Indicate that the port is operating at 100Mbps or 10Mbps.
Blink: Indicate that the VSL2 Switch is actively sending or receiving data
over that port.
10/100
LNK/ACT
Orange
Off: Indicate that the port is link down or 1000Mbps.
2.1.3 Switch Rear Panel
■ VC-810S
The rear panel of the VC-810S contains a power switch and an AC inlet power socket, which accepts input power from
100 to 240VAC, 50-60Hz.
Figure 2-4 Rear Panel of VC-810S
