Planet VC-810S [20/82] Connecting dc power supply

User’s Manual of VC-810S / VC-810S48

2.2.5 Connecting DC Power Supply

The VC-810S48 support -48VDC power input, connect the power cable to the VDSL2 Switch at the input terminal block.

1 The size of the two screws in the terminal block is M3.5.

2 The terminals are marked “-48V”, “FG“.

3 Loosen the two screws so you can slide the DC cable beneath it. Insert the DC cable into the connector first, and

screw it down tight.

4 Connect the power cable to the DC power supply. After power up or reset, the VC-810S48 performs a cold start

procedure.

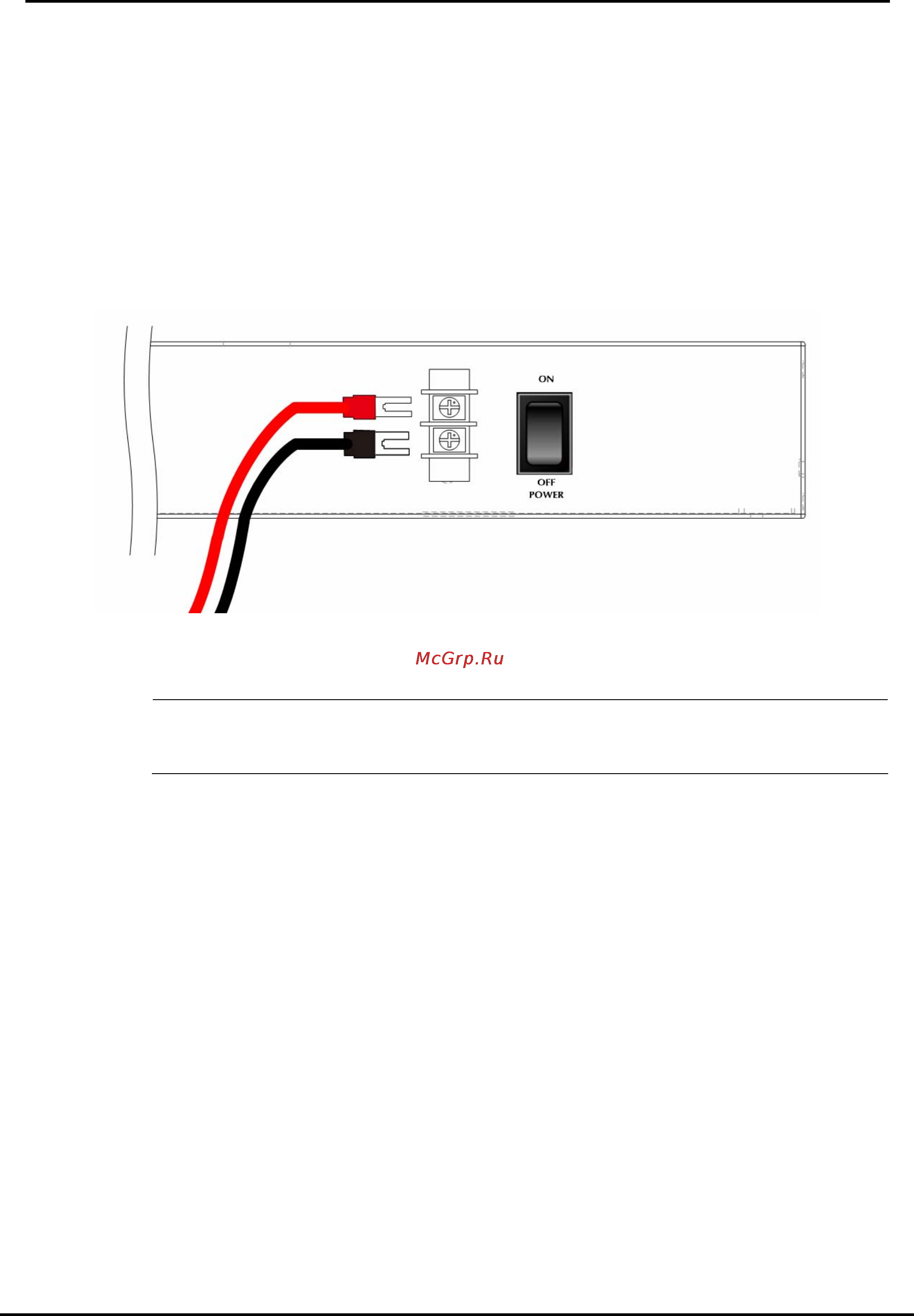

Figure 2-13 -48VDC connector

Warning:

Before connect the DC power cable to the input terminal block of VC-810S48, ensure that the power

switch in the “OFF” position and the DC power is OFF
