User’s Manual of VC-810S / VC-810S48
34
4.3 Port Management
In this chapter, there are three sub-functions can be configure and monitor about network interfaces:
Port Configuration
Port Status
Port Security
There are two kinds of network interface on the VDSL2 Switch:
Port Index. Ethernet Type Connector Type Cable
Port-1 to Port-8
VDSL2 over Ethernet
Screw less Spring
Terminal Block
2-wire twist pair telephone line
Port-9
Gigabit Ethernet TP / SFP Combo
• RJ-45
• Optical Fiber Patch Cord
4.3.1 Port Configuration
This section introduces detail settings of per port on VDSL2 Switch. Via the Port configuration table, you can know status
of each port clear at a glance, like Link Up/Link Down, Enable/Disable, Link Speed, Up/Down Rate, Up/Down SNR,
Duplex mode and Flow Control. The screen in Figure 4-13 appears.

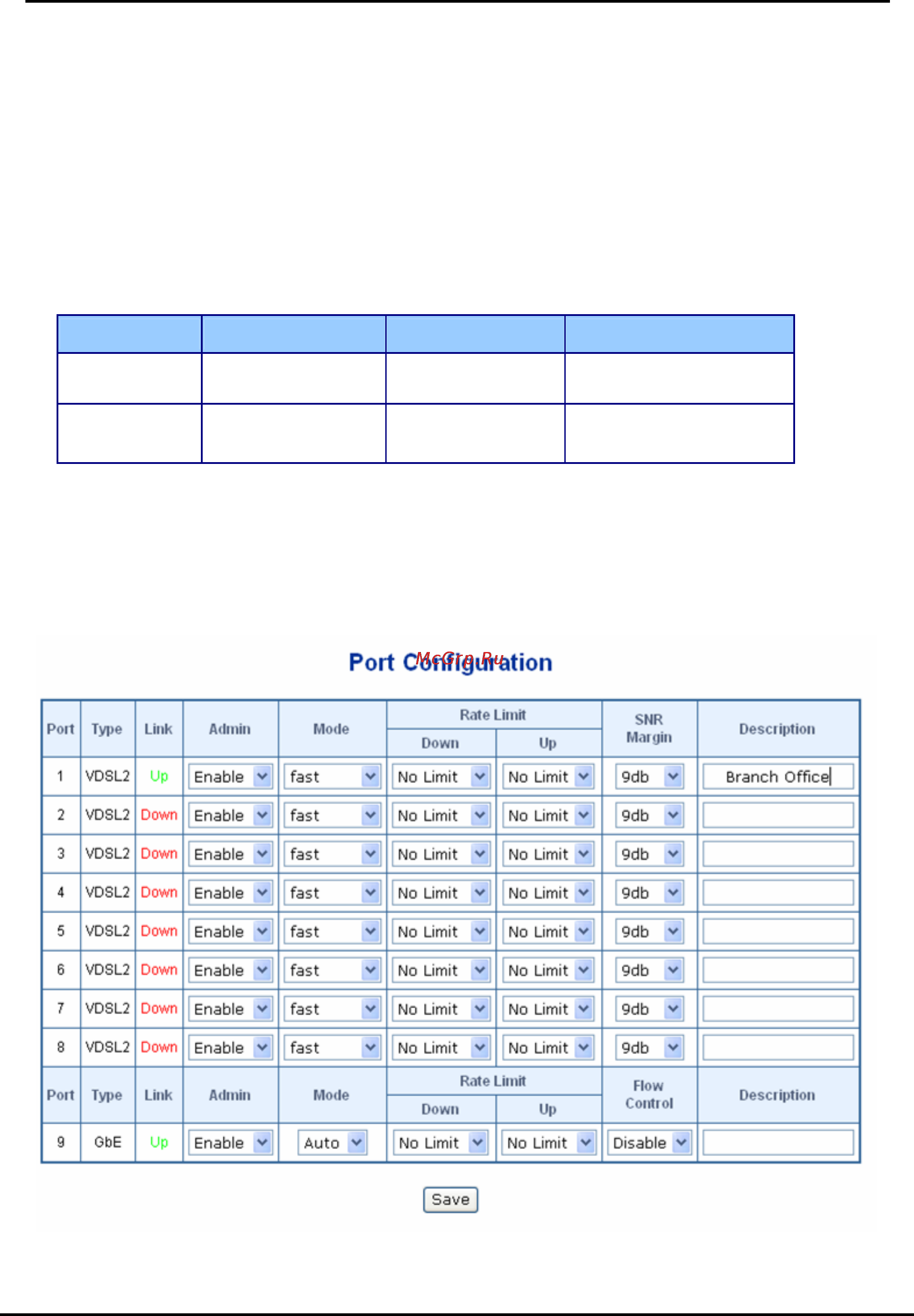

Figure 4-13 Port Configuration screen
