User’s Manual of VC-810S / VC-810S48
10
2. INSTALLATION
This section describes the hardware features and installation of these VDSL2 Switches on the desktop or rack mount. For
easier management and control of the VDSL2 Switch, familiarize yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators. Before start to deploy the VDSL2 Switch, please read this
chapter completely.
2.1 Hardware Description
2.1.1 Switch Front Panel
The unit front panel provides a simple interface monitoring the VDSL2 Switch. Figure 2-1 shows a front panel of VC-810S
/ VC-810S48.

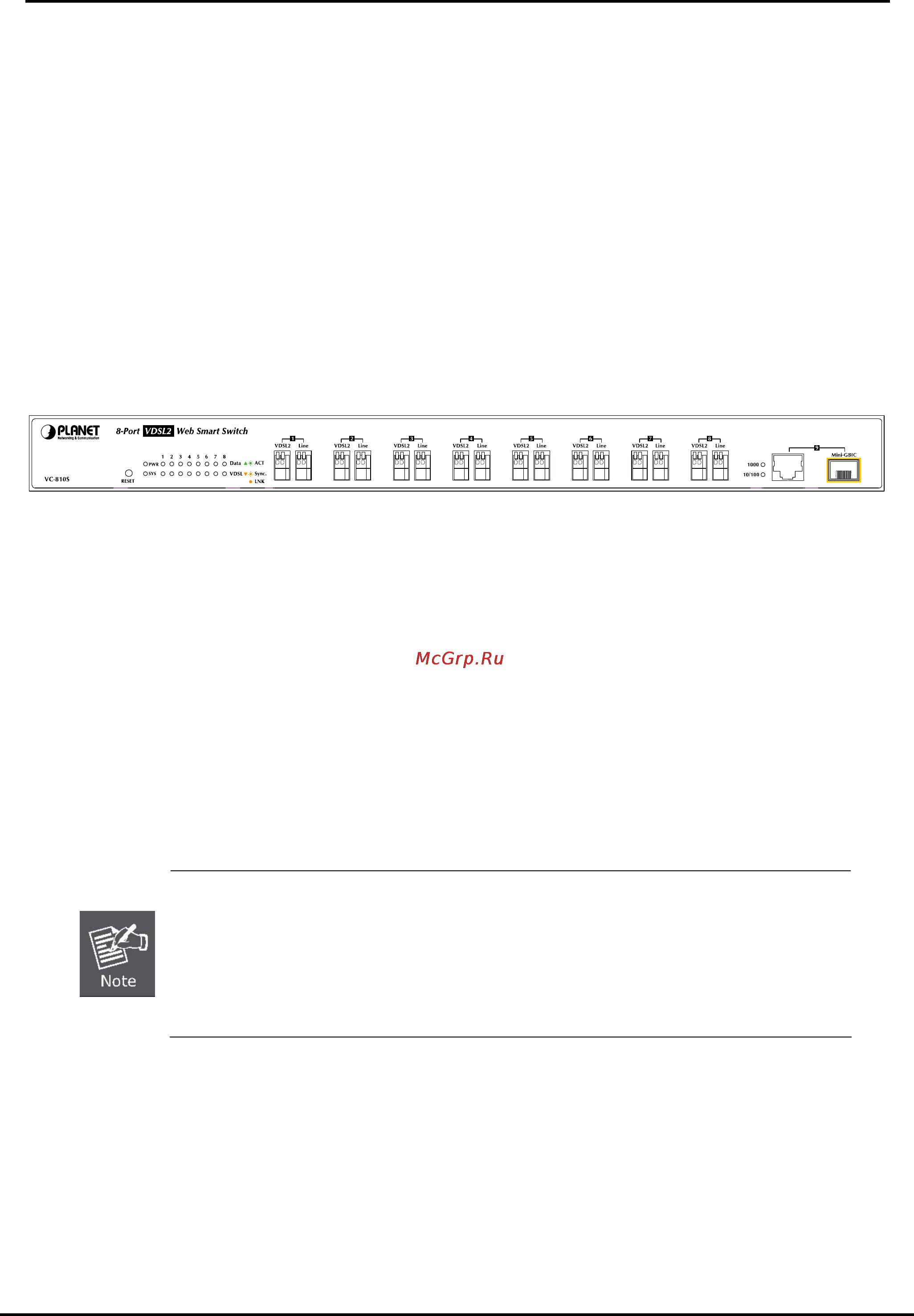

Figure 2-1 PLANET VC-810S / VC-810S48 Front Panel
■ VDSL2 and POTS interface (Port-1~Port-8)
There are 8 VDSL2 ports and 8 POTS ports with Screw less Spring Terminal Block connector on the front panel. The
advantage of Screw less Spring Terminal Block connector is no need to fabricate RJ-11 type phone connector in the
Equipment Room. And no need extra phone line patch panel. Each port is built-in POTS splitter that helps the voice of
telephone and data of network applications transmitting at the same wire without interrupted.
The VDSL2 supports auto detection transmission rate that operate in different band allocation and result in different
upstream and downstream bandwidth.
And Due to different telephone line quality, cross talk or extension distance may affect actual achievable speed; you can
configure individual port in built-in management interface for optimized connectivity.
1. The payload rate is about 9% less than the line rate due to framing overhead.
2. AWG 26 (0.4mm) cable can also be used but the distance is 20% to 40% shorter than
above table.
3. Each terminated bridge tap can reduce the VDSL link distance by 90m.The quality of the
cable, the size of the cable bundles, and the cross talk within the bundle, can also affect
other overall reach.
■ Gigabit TP / SFP Combo interface (Port-9)
The one Gigabit TP/SFP combo interface provides the below link mode:
• 10/100/1000Base-T Copper, RJ-45 Twist-Pair: Up to 100 meters.
• 1000Base-SX/LX mini-GBIC slot, SFP (Small Factor Pluggable) transceiver module: From 550 meters
(Multi-mode fiber), up to 10/30/50/70/120 kilometers (Single-mode fiber).
