User’s Manual of VC-810S / VC-810S48
60
4.5.3 Port-Based Priority Mode
When Port-Based priority is applied, any packets received from a high priority port will be treated as a high priority packet.
Select the QoS mode to Port-Based Priority, the Port ID to queue mapping configuration page appears, as the Figure 4-36
shows.

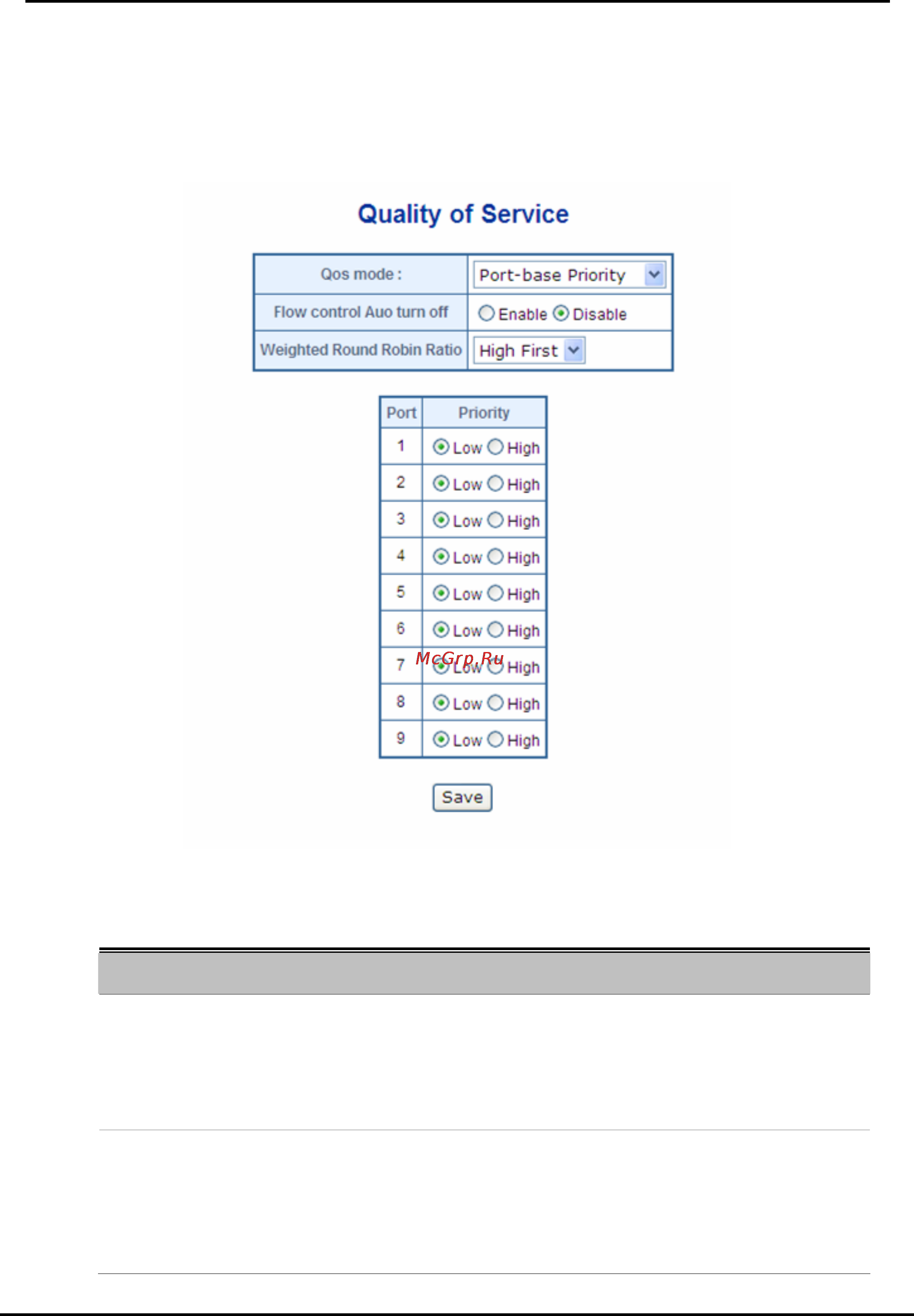

Figure 4-36 QoS – Port-Based Priority Configuration screen
The page includes the following fields:
• Object • Description
• QoS Mode
The draw menu allows customization of QoS mode for Traffic classifiers.
• 802.1p Tag Priority
• TOS / DSCP
• Port-Base Priority
Flow Control Auto
Turn off
Enable – the VDSL2 Switch can automatically turn off IEEE 802.3x flow control
and back pressure flow control for 1~2 seconds whenever the port receives a high
priority packet. Flow control is re-enable when no priority packets are received for
1~2 seconds.
Disable- the flow control ability of this port for any packet will be enabled as it was
