User’s Manual of VC-810S / VC-810S48
53
4.4.3.3 VLAN Trunking between two 802.1Q aware switch
The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to
access with other switches within the same VLAN group. The screen in Figure 4-29 appears.

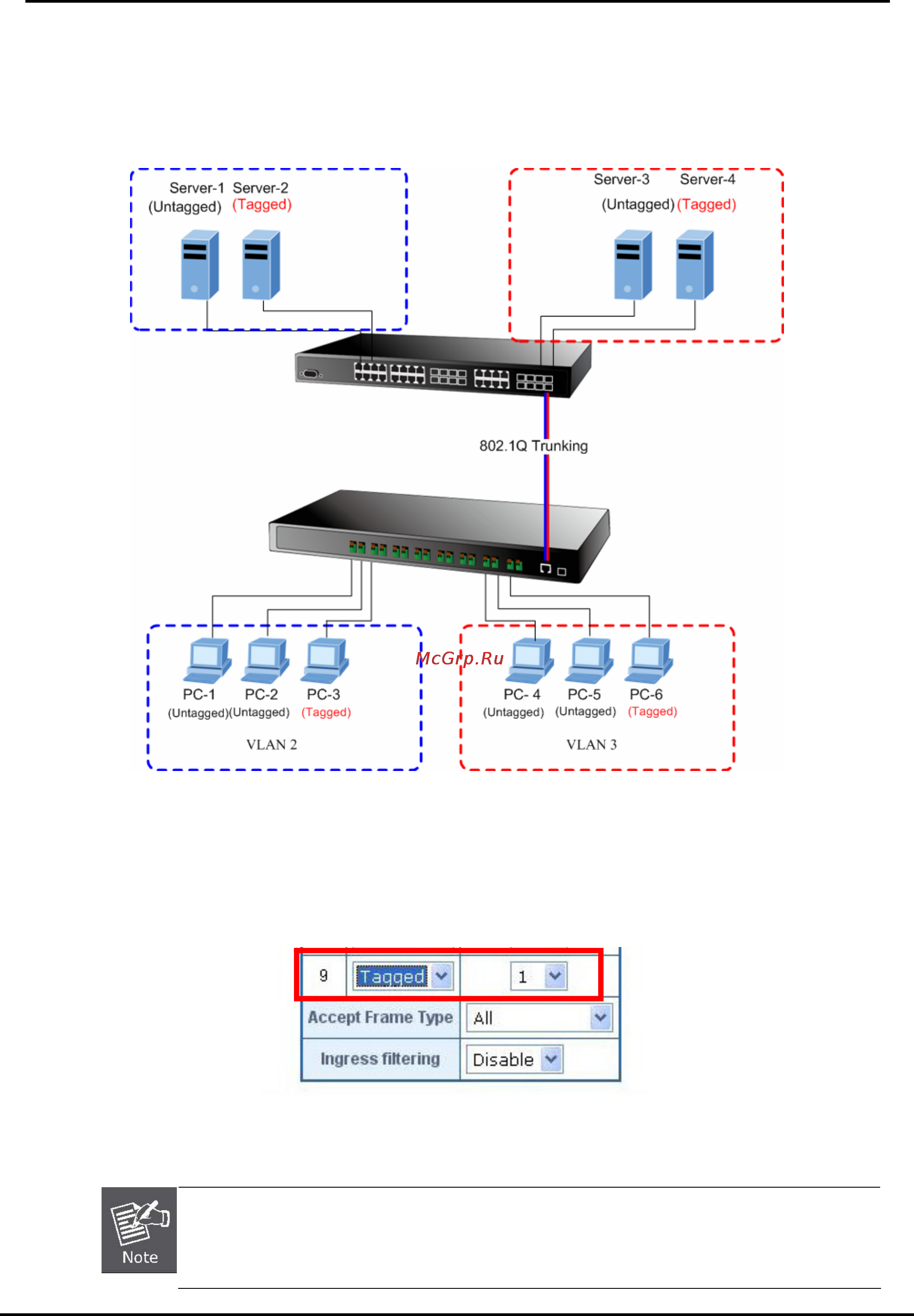

Figure 4-29 802.1Q Trunking with other VLAN aware device
About the VLAN ports connect to the hosts, please refer to 4.4.3.1 and 4.4.3.2 examples. The following steps will focus on
the VLAN Trunk port configuration.
1. Specify Port-9 to be the 802.1Q VLAN Trunk port, and the Trunking port must be a Tagged port while egress. The
Port-8 configuration as the following screen in Figure 4-30.
Figure 4-30 The configuration of VLAN Trunk port
Once [Tag/Untag] setting be set to "Tagged" and be applied, the management connection to the
switch might be lost. Please make sure your client's NIC provided with VLAN Tagged capability
or through other tagged link path.
