User’s Manual of VC-810S / VC-810S48

2. Assign the VLAN Trunk Port to be the member of each VLAN – which wants to be aggregated. At this sample, add

Port-9 to be VLAN 2 and VLAN 3 member port.

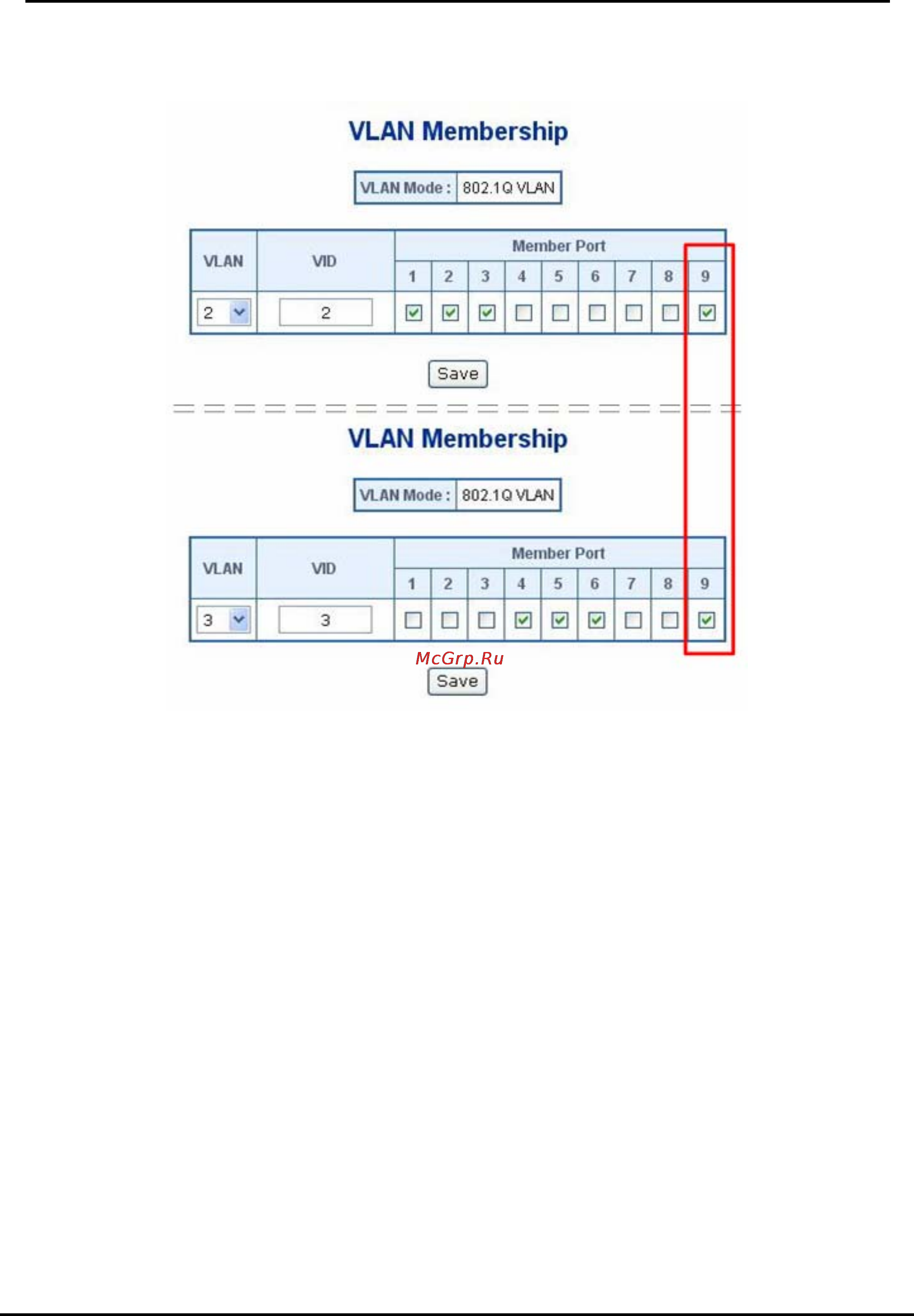

Figure 4-31 Add VLAN Trunk port to each VLAN

3. Repeat Step 1 and Step 2, setup the VLAN Trunk port at the partner switch.

4. To add more VLANs to join the VLAN trunk, repeat Step 2 to assign the Trunk port to the VLANs.
