Инструкция по эксплуатации Страница: 103

Daikin RXYQ96PATJ [103/108] How to set the unit to high esp

EDUS391000-N_a External Static Pressure Setting

102 Installation of Outdoor Units

6.2 208-230V

How to set the unit to high ESP.

(1) Standard external static pressure for VRV is 0.12”wg.

(2) High external static pressure of 0.32”wg is available by field setting as shown below.

In this case a kind of sound proof device should be considered because of

increasing the operation sound.

Set the unit along the operation name plate attached to the face of the switch box.

Содержание

Installation 1
Center of gravity 2
External static pressure setting 7 2
Foundation drawing 3 refnet pipe system 2
Installation 2 2
Installation of outdoor units 2
Refnet pipe system 3 2
Center of gravity 4
Remq72payd 4
Rxyq72 96 108payd remq96payd remq120pydnr 4
Reyq72 96 120payd 5
208 230v 6
Remq72patj 6
Rxyq72 96 108patj remq96patj remq120ptjur 6
Reyq72 96 120patj 7
Foundation drawing 8
Rxyq72 96 108patj rxyq120ptjur reyq72 96 120patj remq72 96patj remq120ptjur 8
Rxyq72 96 108payd rxyq120pydnr reyq72 96 120payd remq72 96payd remq120pydnr 8
Heat pump system 9
Layout example 9
Refnet pipe system 9
Edus391000 n_a refnet pipe system 10
Heat recovery system 10
Installation of outdoor units 9 10
Sample systems 10
Units can be added by connecting them directly to the refnet header or refnet joint further branches cannot be included in the system below the refnet header branch 10
Use of the particular branch fitting appropriate to each individual unit type not only permits the pipes to be laid with ease but also increases the reliability of the system as a whole 10
Field refrigerant piping 11
Heat pump series 11
Heat recovery series 11
Refnet header 12
Refnet joints 12
Refnet joints and headers 12
Edus391000 n_a refnet pipe system 14
Installation of outdoor units 13 14
Khrp26a22t 14
Khrp26a33t 14
Khrp26m72tu 14
Refnet joint branch kit 14
Refnet pipe system 14
Rxyq72 192payd rxyq216 240pydnr 460v rxyq72 192patj rxyq216 240ptjur 208 230v 14
Installation of outdoor units 15
Khrp26m73tu 15
Refnet pipe system edus391000 n_a 15
Discharge gas side liquid side 16
Edus391000 n_a refnet pipe system 16
Installation of outdoor units 15 16
Insulation 16
Insulation insulation 16
Khrp25a22t 16
Khrp25a33t 16
Reyq72 192payd reyq216 240pydnr 460v reyq72 192patj reyq216 240ptjur 208 230v 16
Suction gas side 16
Unit in 16
Installation of outdoor units 17
Khrp25m72tu 17
Khrp25m73tu 17
Refnet pipe system edus391000 n_a 17
Edus391000 n_a refnet pipe system 18
Gas side liquid side 18
Installation of outdoor units 17 18
Khrp26m22h 18
Khrp26m33h 18
Khrp26m72h 18
Refnet header branch kit 18
Rxyq72 192payd rxyq216 240pydnr 460v rxyq72 192patj rxyq216 240ptjur 208 230v 18
Gas side header liquid side header 19
Installation of outdoor units 19
Khrp26m73hu 19
Refnet pipe system edus391000 n_a 19
D3k03633d 20
D3k03634d 20
Edus391000 n_a refnet pipe system 20
Hp lp gas side 20
Installation of outdoor units 19 20
Insulation 20
Insulation insulation liquid side 20
Insulation liquid side 20
Khrp25m33h 20
Khrp25m72h 20
Reyq72 192payd reyq216 240pydnr 460v reyq72 192patj reyq216 240ptjur 208 230v 20
Suction gas side 20
Unit in 20
Installation of outdoor units 21
Khrp25m73hu 21
Refnet pipe system edus391000 n_a 21
Outdoor unit multi connection piping kit 22
Rxyq72 196payd rxyq216 240pydnr 460v rxyq72 196patj rxyq216 240ptjur 208 230v 22
Reyq72 192payd reyq216 240pydnr 460v reyq72 192patj reyq216 240ptjur 208 230v 26
Bhfp26p90u 30
Edus391000 n_a refnet pipe system 30
Installation of outdoor units 29 30
Installation of outdoor units 31
Refnet pipe system edus391000 n_a 31
Bhfp22p100u 32
Edus391000 n_a refnet pipe system 32
Installation of outdoor units 31 32
Installation 33
Installation edus391000 n_a 33
Installation of outdoor units 33
Rxyq72 196payd rxyq216 240pydnr heat pump 460v rxyq72 196patj rxyq216 240ptjur heat pump 208 230v 33
Edus391000 n_a installation 34
Figure 12 2 34
Figure 14 34
Figure 15 figure 13 34
Figure 17 34
Figure 18 1 34
Figure 18 2 figure 16 34
Figure 19 34
Installation of outdoor units 33 34
Figure 20 35
Figure 21 35
Figure 22 35
Figure 23 35
Figure 24 35
Figure 25 35
Installation edus391000 n_a 35
Installation of outdoor units 35
Edus391000 n_a installation 36
Figure 26 36
Figure 27 figure 28 36
Figure 29 figure 30 36
Figure 31 36
Figure 32 36
Installation of outdoor units 35 36
First of all 37
Installation edus391000 n_a 37
Installation of outdoor units 37
Safety considerations 37
1 combination 38
1 special notice of product 38
2 disposal requirements 38
Edus391000 n_a installation 38
Installation of outdoor units 37 38
Introduction 38
2 standard supplied accessories 39
3 option accessory 39
4 technical and electrical specifications 39
5 main components 39
Installation edus391000 n_a 39
Installation of outdoor units 39
Selection of location 39
1 selection of piping material and refrigerant branching kit 40
2 protection against contamination when installing pipes 40
Edus391000 n_a installation 40
Inspecting and handling the unit 40
Installation of outdoor units 39 40
Placing the unit 40
Refrigerant piping 40
3 pipe connection 41
4 connecting the refrigerant piping 41
Installation edus391000 n_a 41
Installation of outdoor units 41
Change to pattern 1 or pattern 2 42
Downward inclination 42
Edus391000 n_a installation 42
Front connections side bottom connections 42
Gas pipe between outside units 42
If 80 in or more 42
If less than 80 in 42
Installation of outdoor units 41 42
Oil remains in the stopping outside unit change to pattern 1 or pattern 2 42
Pattern 1 42
Pattern 2 42
Prohibited pattern 42
To indoor unit 42
5 example of connection 43
Allowable height difference 43
Installation edus391000 n_a 43
Installation of outdoor units 43
Max 295 ft if the outside unit is below 4 43
Maximum allowable length 43
Edus391000 n_a installation 44
Installation of outdoor units 43 44
Outside unit multi connection piping kit and refrigerant branch kit selection 44
Pipe size selection 44
0 75 1 0 21 1 0 81 75 0 40 10 0 15 3 1 45
11 27 11 lb 45
A b 2 c 2 d 2 e 2 f 2 g 2 h i j k l m n 45
A b u r c n s t o p 45
How to calculate the additional refrigerant to be charged 45
Indoor units 1 8 45
Installation edus391000 n_a 45
Installation of outdoor units 45
Outside unit refnet joint a g 45
Round off in units of 0 lb 45
1 power circuit safety device and cable requirements 46
2 wiring connection example for whole system 46
3 leading wire procedure 46
Edus391000 n_a installation 46
Field wiring 46
Installation of outdoor units 45 46
4 transmission wiring connection procedure 47
5 power wiring connection procedure 47
Installation edus391000 n_a 47
Installation of outdoor units 47
Power wire crimp style terminal 47
6 procedure for wiring inside units 48
Air tight test and vacuum drying 48
Crimp style terminal 48
Cup washer 48
Cut out section 48
Edus391000 n_a installation 48
Installation of outdoor units 47 48
Resin hook 48
Terminal block crip style terminal wire narrow wire thick 48
1 selection of piping material and refrigerant branching ki 49
Additional refrigerant charge and check operation 49
Checking of device and installation conditions 49
Installation edus391000 n_a 49
Installation of outdoor units 49
Pipe insulation 49
R410a label 49
1 before working 50
Edus391000 n_a installation 50
Installation of outdoor units 49 50
Stand the tank upright and charge the siphon pipe goes all the way inside so the tank does not need be put upside down charge in liquid form 50
Stand the tank upside down and charge 50
2 procedure of adding refrigerant charging and check operation 51
H h i h h h h 51
Installation edus391000 n_a 51
Installation of outdoor units 51
J h h h h h h 51
J h h h i h i 51
J h h i h h h 51
J h j h j j h 51
2 1 procedure of adding refrigerant charging 52
Cooling mode 52
Edus391000 n_a installation 52
Heating mode 52
Installation of outdoor units 51 52
Outdoor temp 32 f db 109 f db indoor temp 50 f db 90 f db less than above range 52
2 2 procedure of check operation 53
Installation edus391000 n_a 53
Installation of outdoor units 53
1 before test run 54
2 test run 54
3 checks after test run 54
Edus391000 n_a installation 54
Installation of outdoor units 53 54
Onsite settings 54
Test run 54
Caution for refrigerant leaks 55
Edus391000 n_a installation 56
Figure 1 figure 3 figure 2 56
Figure 11 56
Figure 12 56
Figure 4 figure 6 figure 5 56
Figure 7 figure 8 figure 9 figure 10 56
Installation of outdoor units 55 56
Reyq72 120payd heat recovery 460v reyq72 120patj heat recovery 208 230v 56
Installation edus391000 n_a 57
Installation of outdoor units 57
Edus391000 n_a installation 58
Figure 23 58
Figure 24 58
Figure 25 58
Figure 26 58
Figure 27 figure 29 58
Figure 28 58
Figure 30 58
Figure 31 58
Installation of outdoor units 57 58
1 safety considerations 59
First of all 59
Installation edus391000 n_a 59
Installation of outdoor units 59
It is recommended 59
1 combination 60
2 special notice of product 60
2 standard supplied accessories 60
3 disposal requirements 60
Edus391000 n_a installation 60
Installation of outdoor units 59 60
Introduction 60
3 option accessory 61
4 technical and electrical specifications 61
5 main components 61
Installation edus391000 n_a 61
Installation of outdoor units 61
Selection of location 61
1 selection of piping material and refrigerant branching kit 62
2 protection against contamination when installing pipes 62
Edus391000 n_a installation 62
Inspecting and handling the unit 62
Installation of outdoor units 61 62
Placing the unit 62
Refrigerant piping 62
3 pipe connection 63
4 connecting the refrigerant piping 63
Installation edus391000 n_a 63
Installation of outdoor units 63
3 this can be extended to 295 ft with a replacement outdoor unit pcb 4 if the difference between the outdoor unit and indoor unit is greater than 164 ft the liquid line must be increased by one size 64
5 example of connection 64
Allowable height difference 64
Branch selector 64
Edus391000 n_a installation 64
Example of connection connection of 8 indoor units 64
Installation of outdoor units 63 64
Maximum allowable length 64
Installation edus391000 n_a 65
Installation of outdoor units 65
Outside unit multi connection piping kit and refrigerant branch kit selection 65
Pipe size selection 65
0 75 1 0 21 1 0 81 75 0 40 10 0 15 1 2 3 1 66
11 82 11 lb 66
A b 2 c 2 d 2 e 2 f 2 g 2 h i j k l m n 66
A b u r c n s t o p 66
Edus391000 n_a installation 66
How to calculate the additional refrigerant to be charged 66
If the specified pipe diameter is not available onsite do not substitute with a pipe of greater diameter 66
Increase the pipe size as follows 66
Indoor units 1 8 66
Installation of outdoor units 65 66
Outside unit refnet joint a g 66
Required conditions example drawings 66
Round off in units of 0 lb 66
The farthest indoor unit 8 the nearest indoor unit 1 66
Φ 1 1 2 66
1 power circuit safety device and cable requirements 67
2 wiring connection example for whole system 67
3 leading wire procedure 67
Field wiring 67
Installation edus391000 n_a 67
Installation of outdoor units 67
4 transmission wiring connection procedure 68
5 power wiring connection procedure 68
Edus391000 n_a installation 68
Installation of outdoor units 67 68
Power wire crimp style terminal 68
6 procedure for wiring inside units 69
Air tight test and vacuum dry ing 69
Crimp style terminal 69
Cup washer 69
Cut out section 69
Installation edus391000 n_a 69
Installation of outdoor units 69
Resin hook 69
Terminal block crip style terminal wire narrow wire thick 69
1 before working 70
Additional refrigerant charge and check operation 70
Checking of device and instal lation conditions 70
Edus391000 n_a installation 70
Installation of outdoor units 69 70
Pipe insulation 70
R410a label 70
Stand the tank upright and charge the siphon pipe goes all the way inside so the tank does not need be put upside down charge in liquid form 70
Stand the tank upside down and charge 70
2 procedure of adding refrigerant charging and check operation 71
H h i h h h h 71
Installation edus391000 n_a 71
Installation of outdoor units 71
J h h h h h h 71
J h h h i h i 71
J h h i h h h 71
J h j h j j h 71
2 1 procedure of adding refrigerant charging 72
Cooling mode 72
Edus391000 n_a installation 72
H h i h h h h 72
Heating mode 72
Installation of outdoor units 71 72
Outdoor temp 32 f db 109 f db indoor temp 50 f db 90 f db less than above range 72
Installation edus391000 n_a 73
Installation of outdoor units 73
2 2 procedure of check operation 74
Edus391000 n_a installation 74
Installation of outdoor units 73 74
1 before test run 75
2 test run 75
3 checks after test run 75
Calculate the amount of refrigerant lb charged to each system separately 75
Caution for refrigerant leaks 75
Follow local code requirements ashrae 15 2007 ashrae 34 2007 75
Installation edus391000 n_a 75
Installation of outdoor units 75
Introduction 75
Maximum concentration level 75
Onsite settings 75
Pay special attention to the place such as a basement etc where refrigerant can stay since refrigerant is heavier than air 75
Points to note in connection with refrigerant leaks 75
Procedure for checking maximum concentration 75
Test run 75
The installer and system specialist shall secure safety against leakage according to local regulations or standards the following standards may be applicable if local regulations are not available 75
Where a single refrigerant facility is divided into 2 entirely independent refrigerant systems then use the amount of refrigerant with which each separate system is charged 75
Edus391000 n_a installation 76
Figure 1 figure 3 figure 2 76
Figure 11 76
Figure 12 76
Figure 13 76
Figure 4 figure 6 figure 5 76
Figure 7 figure 8 figure 9 figure 10 76
Installation of outdoor units 75 76
Reyq144 192 payd reyq216 240pydnr heat recovery 460v reyq144 192 patj reyq216 240ptjur heat recovery 208 230v 76
Installation edus391000 n_a 77
Installation of outdoor units 77
Edus391000 n_a installation 78
Figure 24 78
Figure 25 78
Figure 26 78
Figure 27 78
Figure 28 78
Figure 29 figure 30 78
Figure 31 78
Figure 32 78
Installation of outdoor units 77 78
1 safety considerations 79
First of all 79
Installation edus391000 n_a 79
Installation of outdoor units 79
When installing the unit in a small room take measures to keep the refrigerant concentration from exceeding allowable safety limits excessive refrigerant leaks in the event of an accident in a closed ambient space can lead to oxygen defi ciency 79
When wiring position the wires so that the terminal box lid can be securely fastened improper positioning of the terminal box lid may result in electric shocks fire or the terminals overheat ing 79
1 combination 80
2 special notice of product 80
3 disposal requirements 80
Edus391000 n_a installation 80
Installation of outdoor units 79 80
Introduction 80
2 standard supplied accessories 81
3 option accessory 81
4 technical and electrical specifications 81
5 main components 81
Installation edus391000 n_a 81
Installation of outdoor units 81
Selection of location 81
1 selection of piping material and refrigerant branching kit 82
Edus391000 n_a installation 82
Inspecting and handling the unit 82
Installation of outdoor units 81 82
Placing the unit 82
Refrigerant piping 82
2 protection against contamination when installing pipes 83
3 pipe connection 83
4 connecting the refrigerant piping 83
Installation edus391000 n_a 83
Installation of outdoor units 83
2 the piping between outside units must be installed level pat tern 1 or with a rise pattern 2 otherwise oil may pool in the pipes 84
3 to avoid the risk of oil detention in the stopping unit always connect the shutoff valve and the piping between outside units as shown a or b in the figure below 84
4 if the piping length between the outside units exceeds 80 in cre ate a rise of 8 in or more in the suction gas and hp lp gas piping under a length of 80 in from the outside unit multi connection pip ing kit 84
Branching the refrigerant piping heed the restrictions below when installing the refrigerant branch ing kit and read the installation instruction manual with the kit improper installation could lead to malfunctioning or breakdown of the outside unit 84
Change as shown in the figure below 84
Change to pattern 1 or pattern 2 84
Connect straightly 84
Downward inclination 84
Edus391000 n_a installation 84
Front connections 84
Front connections side bottom connections 84
If 80 in or more 84
If less than 80 in 84
Install the refnet header so it splits horizontally 84
Install the refnet joint so it splits horizontally or vertically 84
Installation of outdoor units 83 84
Oil remains in piping 84
Oil remains in the stopping outside unit change to pattern 1 or pattern 2 84
Oil remains in the unit a when system stops 84
Pattern 1 84
Pattern 2 84
Prohibited pattern 84
Refer to figure 13 1 warning label 2 horizontal surface 3 15 or less 4 ground 5 onsite pipe 4 3 4 in length or more 6 straight part of 19 5 8 in or more 7 c arrow view 8 d arrow view 84
Refer to figure 14 1 horizontal 2 a arrow view 3 horizontal surface 4 30 or less 5 vertical 84
Refer to figure 15 1 horizontal surface 2 b arrow view 84
Side bottom connections 84
To indoor unit 84
1 indicates the outside unit multi connection piping kit 2 in case of multi outdoor system re read outside unit to the first outside unit multi connection piping kit as seen from the indoor unit 85
3 this can be extended to 295 ft with a replacement outdoor unit pcb 4 if the difference between the outdoor unit and indoor unit is greater than 164 ft the liquid line must be increased by one size 85
5 example of connection 85
Actual and equivalent pipe length 85
Actual pipe length 85
Actual pipe length equivalent length 85
Actual pipe length from first refrigerant branch kit either refnet joint or refnet header to indoor unit 130 ft 2 85
Allowable length after the branch 85
Between outside unit 2 and indoor unit 85
Bold 3 pipes 85
Branch selector unit 85
Branch with refnet joint branch with refnet joint and header branch with refnet header 85
Difference in height between adjacent indoor units h2 49 ft 85
Difference in height between adjacent outside units h3 16 ft 85
Difference in height between outside unit and indoor unit h1 164 ft 3 85
Equivalent pipe length between outside unit 2 and indoor unit 620 ft note 1 85
Equivalent pipe length from first outside unit multi connection piping kit to outside unit 43 ft 85
Example 6 b 130 ft 8 m n p 130 ft example 8 o 130 ft 85
Example 8 a b c d e 540 ft 85
Example 8 a o 540 ft 85
Example 8 b c d e s 130 ft 85
Example of connection connection of 8 indoor units 85
First outside unit multi connection piping kit 85
Indoor unit cool heat selection possible 85
Indoor unit cooling only 85
Indoor unit side 2 pipes 85
Installation edus391000 n_a 85
Installation of outdoor units 85
Multi outside system reyq 144 192 payd reyq 85
Outside unit 85
Outside unit outside unit 85
Outside unit side 3 pipes 85
Payd reyq 7 85
Pipe length between outside unit 2 and indoor unit 540 ft 85
Piping from branch selector unit to indoor unit or piping from refrigerant branch kit to indoor unit used as cooling only 85
Piping from outside unit to branch selector unit 85
Pydnr reyq 144 192 patj reyq 85
Single outside system reyq 7 85
Suction gas pipe hp lp gas pipe liquid pipe 85
Suction gas pipe liquid pipe 85
Thin 2 pipes 85
Total piping length from outside unit 2 to all indoor unit 3280 ft actual pipe length from first outside unit multi connection piping kit to outside unit 33 ft 85
Edus391000 n_a installation 86
Installation of outdoor units 85 86
Outside unit multi connection piping kit and refrigerant branch kit selection 86
Pipe size selection 86
0 75 1 0 21 1 0 81 75 0 40 10 0 15 1 2 2 1 87
11 82 11 lb 87
A b 2 c 2 d 2 e 2 f 2 g 2 h i j k l m n 87
A b u r c n s t o p 87
How to calculate the additional refrigerant to be charged 87
If the specified pipe diameter is not available on site do not substitute with a pipe of greater diameter 87
Indoor units 1 8 87
Installation edus391000 n_a 87
Installation of outdoor units 87
Outside unit refnet joint a g 87
Round off in units of 0 lb 87
1 power circuit safety device and cable requirements 88
2 wiring connection example for whole system 88
Edus391000 n_a installation 88
Field wiring 88
Installation of outdoor units 87 88
3 leading wire procedure 89
4 transmission wiring connection procedure 89
5 power wiring connection procedure 89
Installation edus391000 n_a 89
Installation of outdoor units 89
6 procedure for wiring inside units 90
Air tight test and vacuum dry ing 90
Edus391000 n_a installation 90
Installation of outdoor units 89 90
Power wire crimp style terminal 90
Installation edus391000 n_a 91
Installation of outdoor units 91
Pipe insulation 91
R410a label 91
1 before working 92
Additional refrigerant charge and check operation 92
Checking of device and instal lation conditions 92
Edus391000 n_a installation 92
Installation of outdoor units 91 92
Stand the tank upright and charge the siphon pipe goes all the way inside so the tank does not need be put upside down charge in liquid form 92
Stand the tank upside down and charge 92
2 procedure of adding refrigerant charging and check operation 93
H h i h h h h 93
Installation edus391000 n_a 93
Installation of outdoor units 93
J h h h h h h 93
J h h h i h i 93
J h h i h h h 93
J h j h j j h 93
2 1 procedure of adding refrigerant charging 94
Cooling mode 94
Edus391000 n_a installation 94
Heating mode 94
Installation of outdoor units 93 94
Less than above range 94
Outdoor temp 32 f db 109 f db indoor temp 50 f db 90 f db 94
2 2 procedure of check operation 95
Installation edus391000 n_a 95
Installation of outdoor units 95
1 before test run 96
2 test run 96
Edus391000 n_a installation 96
Installation of outdoor units 95 96
Onsite settings 96
Test run 96
3 checks after test run 97
Caution for refrigerant leaks 97
External static pressure setting 98
How to set the unit to high esp 98
208 230v 103
How to set the unit to high esp 103

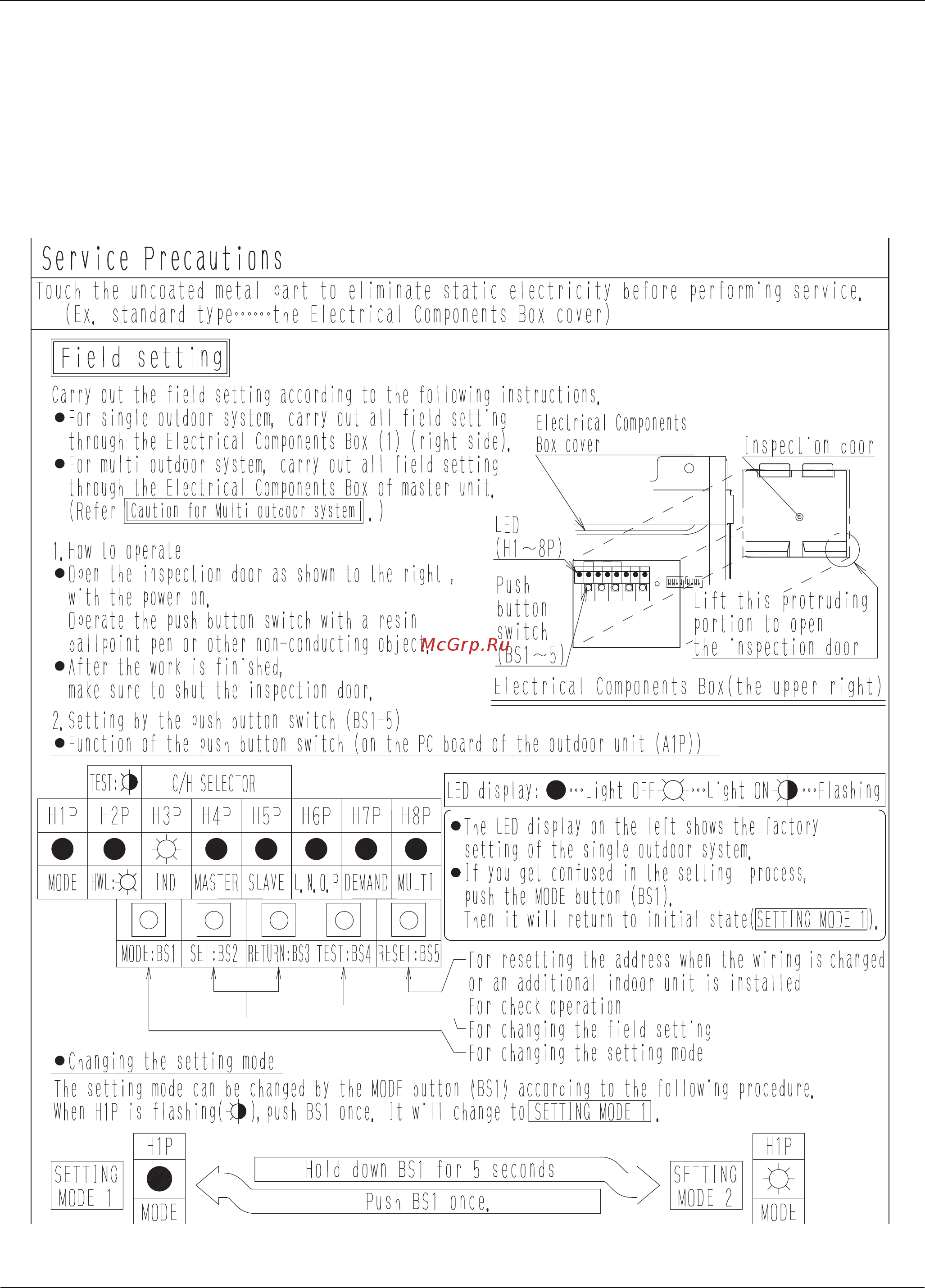

Daikin RXYQ96PATJ [103/108] How to set the unit to high esp

Содержание

Похожие устройства
