96 Installation of Outdoor Units
13-3 Checks After Test Run
Perform the following checks after the test run is complete.
• Record the contents of field setting.
→ Record them on the accessory “REQUEST FOR THE INDICA-
TION” label.
And attach the label on the back side of the front panel.
• Record the installation date.
→ Record the installation date on the accessory “REQUEST FOR
THE INDICATION” label in accordance with the IEC60335-2-
40.
And attach the label on the back side of the front panel.
NOTE
After the test run, when handing the unit over to the customer, make
sure the electrical components box lid, the inspection door, and the
unit casing are all attached.
CAUTION FOR REFRIGERANT LEAKS
(Points to note in connection with refrigerant leaks)
Introduction:
The installer and system specialist shall secure safety
against leakage according to local regulations or
standards. The following standards may be applicable if
local regulations are not available.
The VRV System, like other air conditioning systems, uses
R-410A as refrigerant. R-410A is an entirely safe non-toxic,
non-combustible refrigerant. Nevertheless care must be taken
to ensure that air conditioning facilities are installed in a room
that is sufficiently large. This assures that the maximum
concentration level of refrigerant gas is not exceeded, in the
unlikely event of major leak in the system and this in
accordance to the local applicable regulations and standards.
Maximum concentration level
The maximum charge of refrigerant and the calculation of the
maximum concentration of refrigerant is directly related to the
humanly occupied space in to which it could leak.
The unit of measurement of the concentration is lb/ft
3
(the
weight in lb of the refrigerant gas in 1 ft
3
volume of the
occupied space).
Compliance to the local applicable regulations and standards
for the maximum allowable concentration level is required.

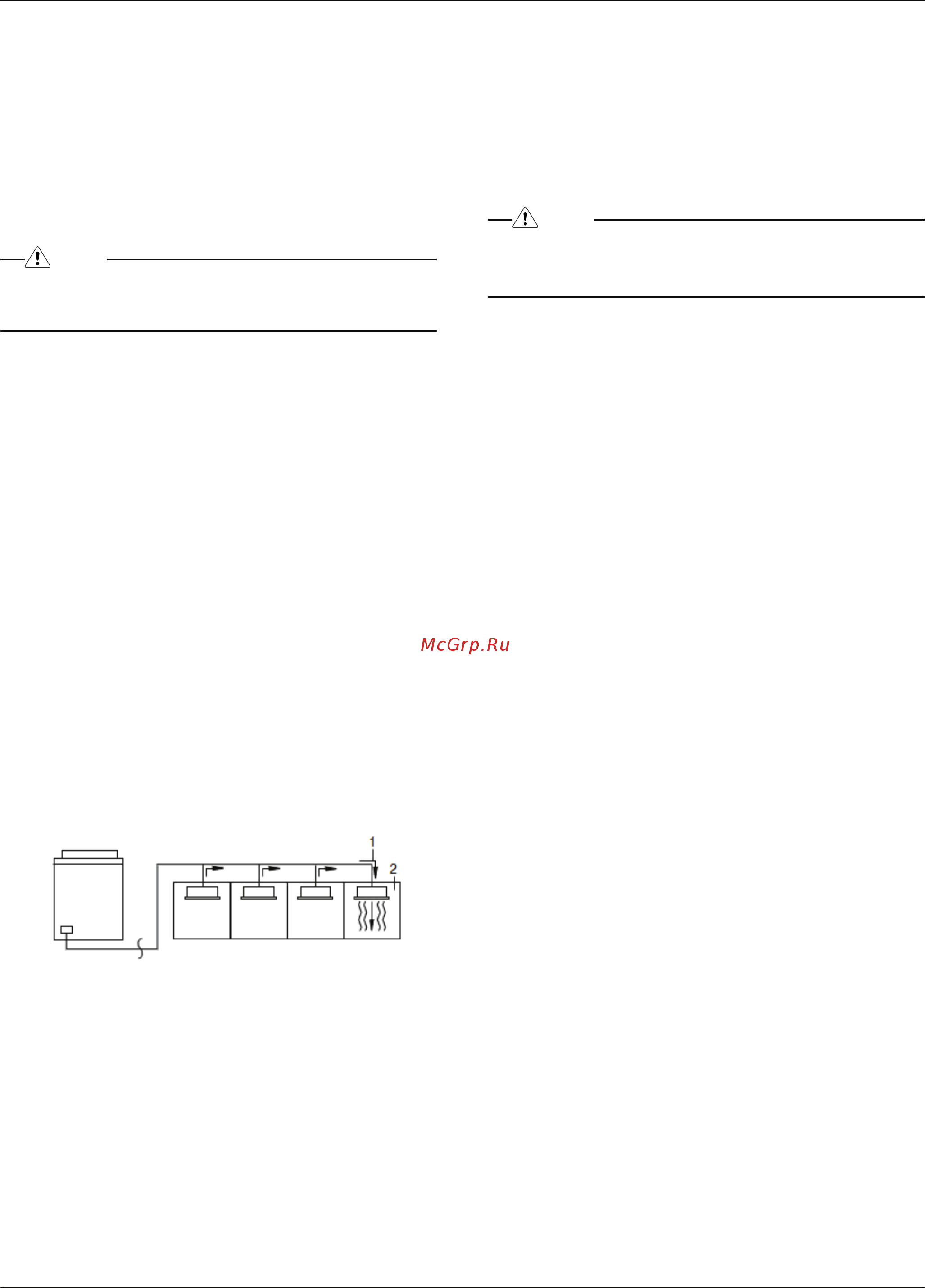

1. direction of the refrigerant flow
2. room where refrigerant leak has occurred (outflow of all
the refrigerant from the system)
Pay special attention to the place, such as a basement,
etc., where refrigerant can stay, since refrigerant is
heavier than air.
Procedure for checking maximum concentration
Check the maximum concentration level in accordance with
steps 1−2 below and take whatever action is necessary to
comply.
1. Calculate the amount of refrigerant (lb) charged to each
system separately.
NOTE
• Where a single refrigerant facility is divided into 2 entirely
independent refrigerant systems then use the amount of
refrigerant with which each separate system is charged.
2. Follow local code requirements (ASHRAE-15 2007 &
ASHRAE-34 2007).
amount of refriger-
ant in a single unit
system (amount of
refrigerant with
which the system is
charged before
leaving the factory)
+
additional charging
amount (amount of
refrigerant added
locally in accordance
with the length or
diameter of the refrig-
erant piping)
=
total amount
of refrigerant
(lb) in the
system
