Daikin RXYQ96PATJ [21/108] Installation of outdoor units

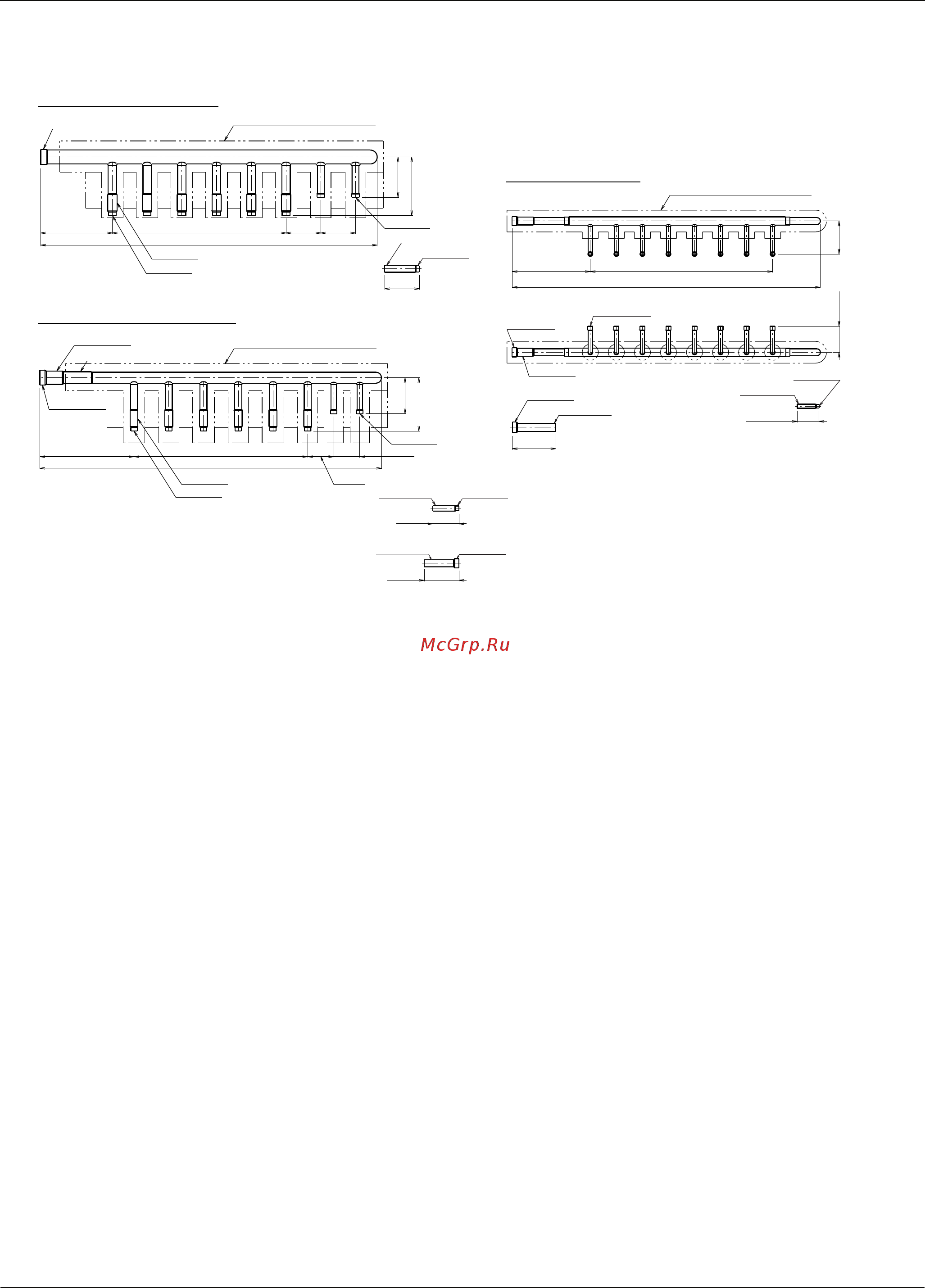

REFNET Pipe System EDUS391000-N_a

20 Installation of Outdoor Units

KHRP25M73HU

SUCTION GAS SIDE HEADER

DISCHARGE GAS SIDE HEADER

× 6

LIQUID SIDE HEADER

O. D. 3/4

7 × 2-3/8 = 16-1/2

8-9/16

I. D. 5/8

O. D. 5/8

I. D. 5/8

30-15/16

6-1/2

I. D. 1/4

30-1/2

3-1/4

I. D. 1/2

27-15/16

15-3/4

1-15/16

I. D. 1-1/4

3-1/8

I. D. 1-3/8

8-I. D. 3/8

7-1/16

I. D. 3/4

5 × 3-1/8 = 15-3/4

I. D. 5/8

2-3/8

5-5/16

THERMAL INSULATION

O. D. 3/8

4-13/16

I. D. 1/2

I. D. 1-1/8

I. D. 7/8

I. D. 1/2

THERMAL INSULATION

O. D. 5/8

THERMAL INSULATION

I. D. 3/4

2-3/8

O. D. 1/2

3-15/16

3-1/8

I. D. 3/4

3-1/8

3-11/16

I. D. 1

I. D. 3/8

2-3/8

3-1/8

I. D. 5/8

D3K05575
