Daikin RXYQ96PATJ [8/108] Foundation drawing

EDUS391000-N_a Foundation Drawing

Installation of Outdoor Units 7

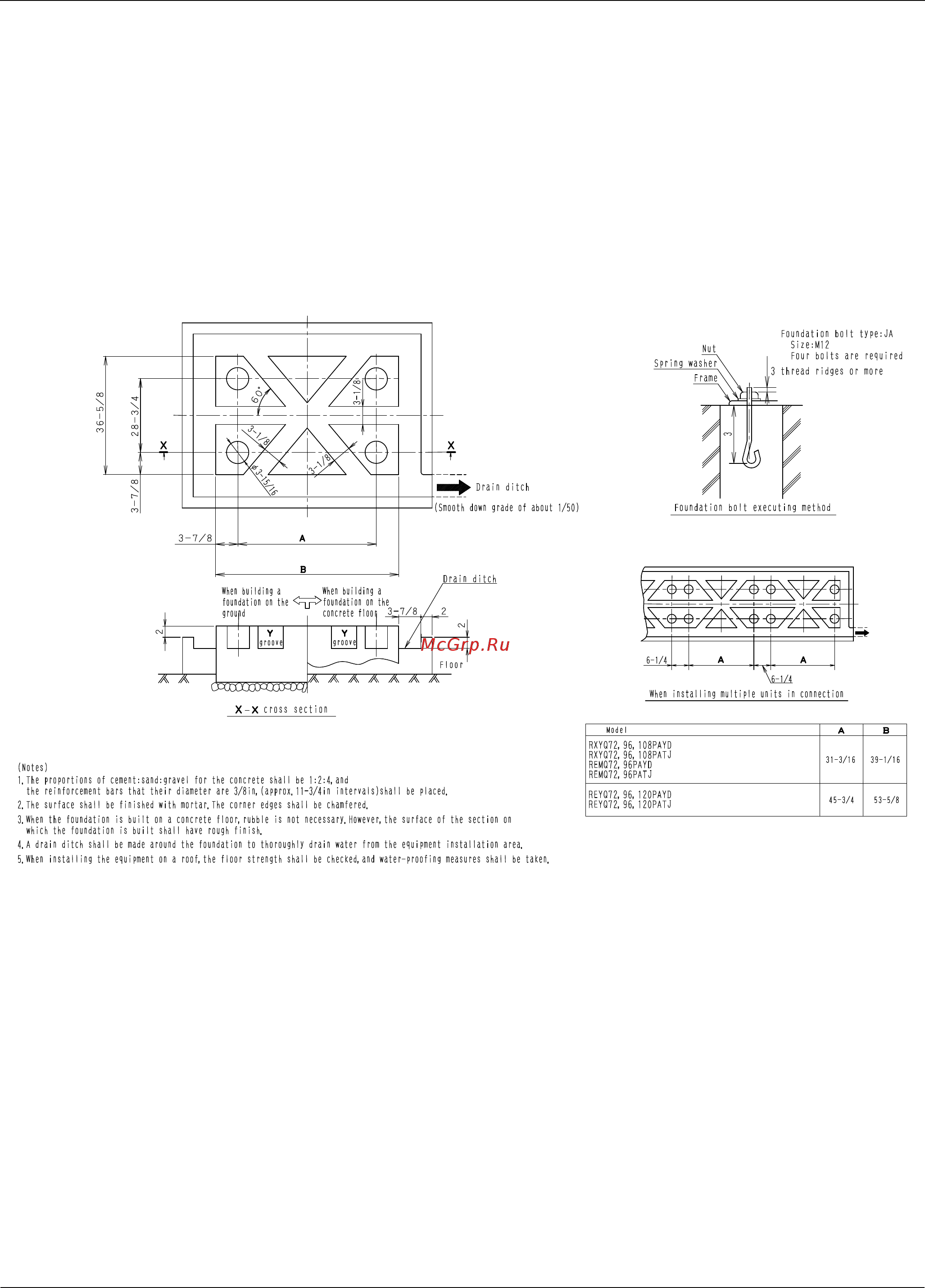

2. Foundation Drawing

 460V

RXYQ72, 96, 108PAYD / RXYQ120PYDNR

REYQ72, 96, 120PAYD

REMQ72, 96PAYD / REMQ120PYDNR

 208-230V

RXYQ72, 96, 108PATJ / RXYQ120PTJUR

REYQ72, 96, 120PATJ

REMQ72, 96PATJ / REMQ120PTJUR

3D058655A
