Installation EDUS391000-N_a

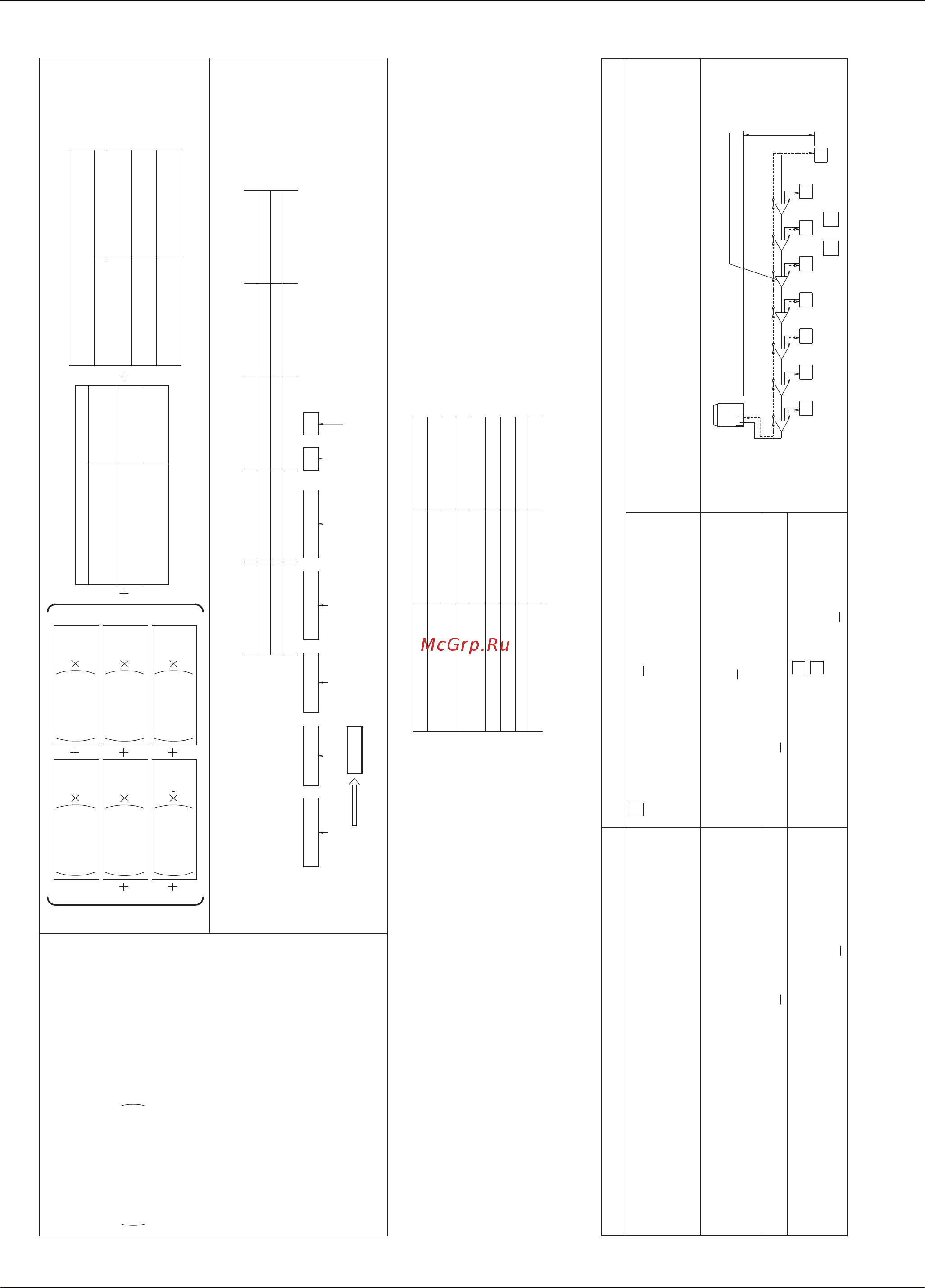

44 Installation of Outdoor Units
Required Conditions Example Drawings
1. It is necessay to increase the pipe size between the first branch
kit and the final branch kit. (Reducers must be procured on site)
If the increased pipe size is larger than the main pipe size,
increase the main pipe size to the same as the increased size.
2. For calculation of Total extension length, the actual length of
above pipes must be doubled.
(except main pipe and the pipes that are not increased)
3. Indoor unit to the nearest branch kit < 130 ft.
4. The difference between
[Outside unit to the farthest indoor unit]
and [Outside unit to the nearest indoor unit] < 130 ft.
8 b +c+d+e+f+g+p< 295 ft.
increase the pipe size of b, c, d, e, f, g
a+b×2+c×2+d×2+e×2+f×2+g×2
+h+i+j+k+l+m+n+p
<
3280 ft.
h, i, j....... p < 130 ft.
The farthest indoor unit 8
The nearest indoor unit 1
(a+b +c+d+e+f+g+p)-(a+h)< 130 ft.
Increase the pipe size as follows:
φ3/8 > φ1/2
φ1/2 > φ5/8
φ5/8 > φ3/4
φ3/4 > φ7/8
φ7/8 > φ1*
φ1-1/8 > φ1-1/4*
φ1-3/8 > φ1-1/2*
a
ABCDEFG
b cdef
g
hi j kl mn
1234567
8
H1
p
Outside unit
REFNET joint (A-G)
Indoor units ( 1 - 8 )
*If the specified pipe diameter is not available on site, do NOT substitute with a pipe of greater diameter.
How to calculate the
additional refrigerant
to be charged
Additional refrigerant to
be charged : R(lb)
R should be rounded
off in units of 0.1 lb.
R =
(Total length (ft)
of liquid piping
size at φ7/8)
(Total length (ft)
of liquid piping
size at φ5/8)
(Total length (ft)
of liquid piping
size at φ3/8)
(Total length (ft)
of liquid piping
size at φ3/4)
(Total length (ft)
of liquid piping
size at φ1/2)
(Total length (ft)
of liquid piping
size at φ1/4)
0.249
0.121
0.040
0.175
0.081
0.015
HEAT PUMP SYSTEM
MODEL NAME
MODEL NAME
THE AMOUNT OF
REFRIGERANT
RXYQ72 ~ 120PAYD
RXYQ144 ~ 192PAYD
RXYQ216 ~ 1240PATJ
—
2.2 lb
REFRIGERANT AMOUNT FOR EXCEEDING
CONNECTION CAPACITY OF INDOOR UNIT
INDOOR
CONNECTION
CAPACITY
MORE THAN 100%
120% OR LESS
MORE THAN 120%
130% OR LESS
RXYQ72 ~ 240PAYD
RXYQ72 ~ 240PATJ
1.1 lb
1.1 lb
Example for refrigerant branch using REFNET joint and REFNET heder for systems and each pipe length as shown below.
Outside system : RXYQ240PAYD
Total capacity of indoor unit : 116%
a : φ3/4 × 15ft.
b : φ3/4 × 10ft.
c : φ3/8 × 5ft.
d : φ3/8 × 5ft.
e : φ3/8 × 5ft.
f : φ3/8 × 5ft.
g : φ3/8 × 5ft.
h : φ3/8 × 5ft.
i : φ3/8 × 5ft.
j : φ3/8 × 5ft.
k : φ3/8 × 10ft.
l : φ3/8 × 10ft.
m : φ3/8 × 10ft.
n : φ3/8 × 5ft.
o : φ1/4 × 5ft.
p : φ1/4 × 5ft.
r : φ1/2 × 1ft.
s : φ3/
8 × 1ft.
t : φ3/8 × 1ft.
u : φ5/8 × 1ft.
Note 1.
When the equivalent pipe length between outside and indoor units is 295 ft or more,
the size of main pipes (both gas side and liquid side (refer to figure 16)
must be increased according to the right table.
(Refer to figure 16)
1.Outdoor unit
2.Main pipes
3.Increase
4.First refrigerant branch kit
5.Indoor unit
Note 2.
Allowable length after the first refrigerant branch kit to indoor units is 130 ft or less, however it can be extended up to 295 ft
if all the following conditions are satisfied. (In case of “Branch with REFNET joint”)
System
RXYQ72PA type
RXYQ96PA type
RXYQ108PA type
RXYQ144PA type
RXYQ168PA type
RXYQ192PA type
Gas pipe
φ3/4 > φ7/8
φ
7/8 > φ1
Not Increased
φ1-1/8 > φ1-1/4
φ1-1/8 > φ1-1/4
φ1-1/8 > φ1-1/4
Liquid pipe
φ3/8 > φ1/2
φ3/8 > φ1/2
φ1/2 > φ5/8
φ1/2 > φ5/8
φ5/8 > φ3/4
φ5/8 > φ3/4
R
=
(
25 × 0.175 + 1 × 0.121 + 1 × 0.081 + 75 × 0.040 + 10 × 0.015 ) 3.3 + 1.1
a, bu rc~n, s, t o, p
RXYQ240PATJ
116%
= 11.027 11.0lb
Round off in units of 0.1 lb.
RXYQ216PR type
RXYQ240PR type
φ1-1/8 > φ1-1/4
Not Increased
φ5/8 > φ3/4
φ5/8 > φ3/4
—
3.3 lb
