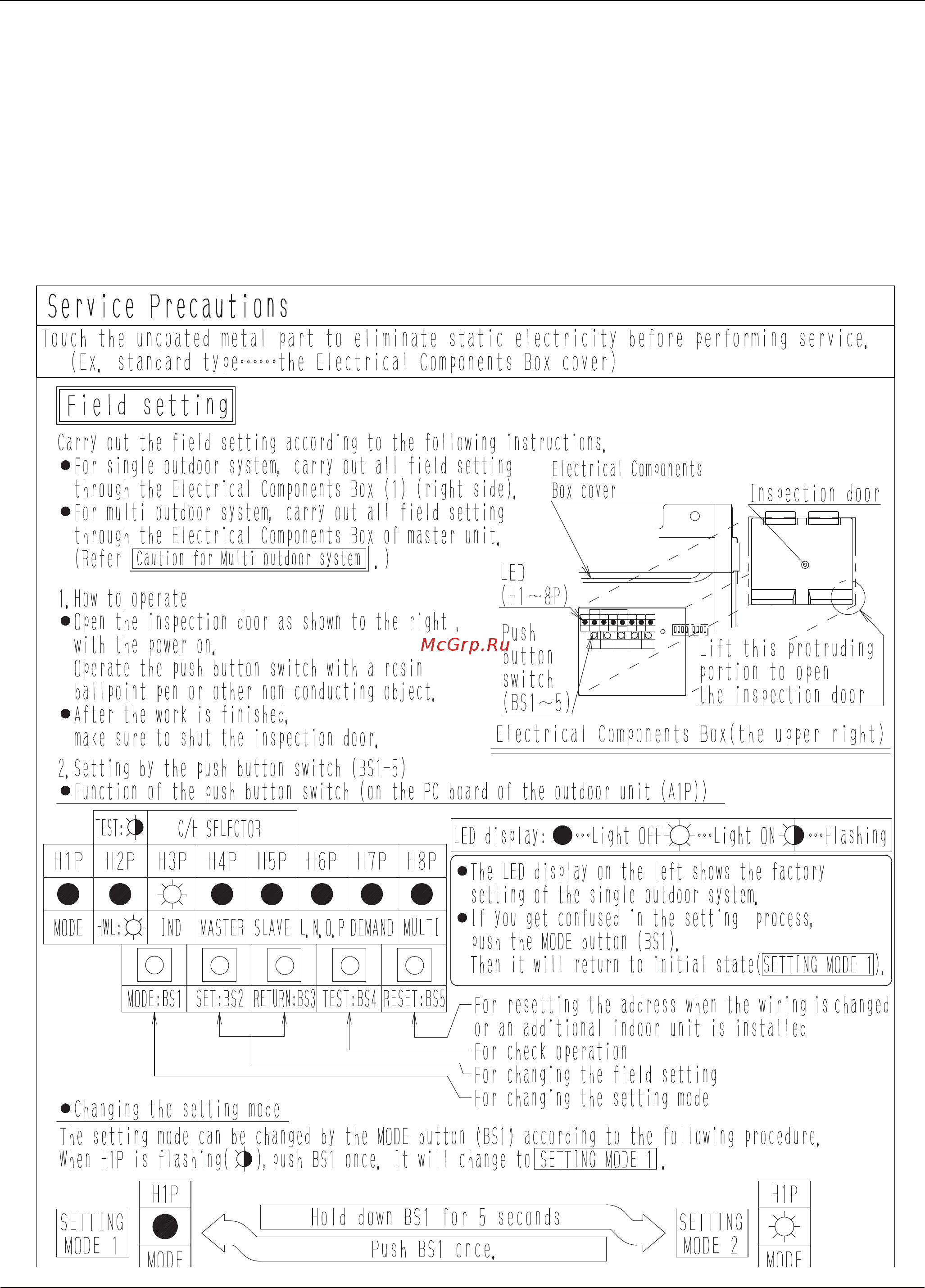

External Static Pressure Setting EDUS391000-N_a

Installation of Outdoor Units 97

6. External Static Pressure Setting

6.1 460V

How to set the unit to high ESP.

(1) Standard external static pressure for VRV is 0.12” wg.

(2) High external static pressure of 0.32” wg is available by field setting as shown below.

In this case a kind of sound proof device should be considered because of

increasing the operation sound.

Set the unit along the operation name plate attached to the face of the switch box.
