Daikin RQYQ22PY1 [123/194] Refrigerant overcharged
![Daikin RQYQ20PY1 [123/194] Refrigerant overcharged](/views2/1718492/page123/bg7b.png)

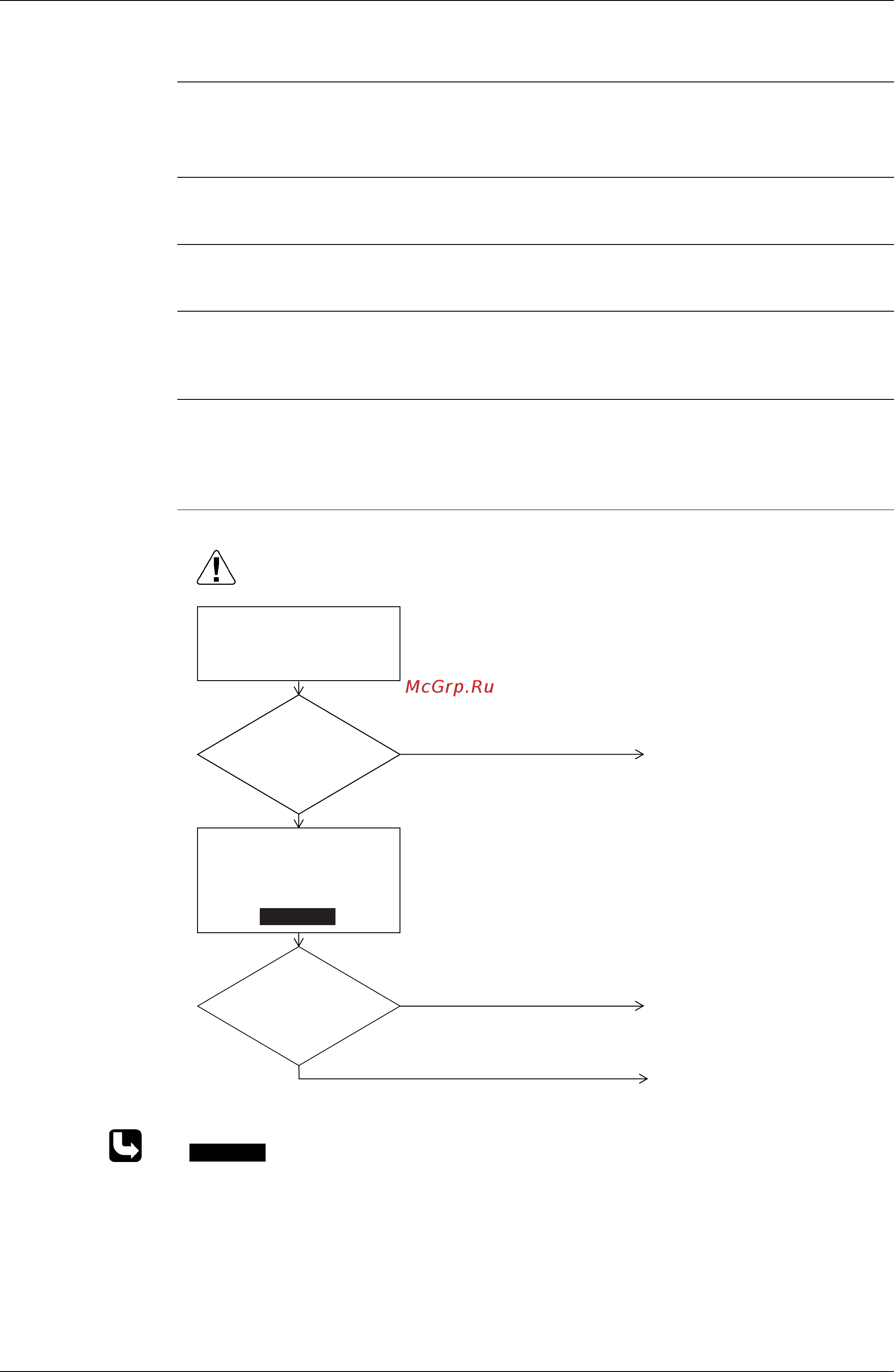

Si341009 Troubleshooting by Remote Controller
Troubleshooting 114
2.14 Refrigerant Overcharged
Remote
Controller
Display
F6
Applicable
Models
RQYQ8-48PY1
Method of Error
Detection
Excessive charging of refrigerant is detected by using the outdoor air temperature, heat
exchanging deicer temperature and liquid pipe temperature during check operation.
Error Decision
Conditions
When the amount of refrigerant, which is calculated by using the outdoor air temperature, heat
exchanging deicer temperature and liquid pipe temperature during check operation, exceeds
the criteria.
Supposed
Causes
Refrigerant overcharge
Disconnection of outdoor air thermistor
Disconnection of heat exchanging deicer thermistor
Disconnection of liquid pipe thermistor
Troubleshooting
Refer to P.174
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Are the
above thermistor
installed on pipes
correctly?
Check the mounting condition of
the temperature sensors of the
outdoor air thermistor, heat
exchanging deicer thermistor and
liquid pipe thermistor in the piping.
Remove the outdoor air thermistor,
heat exchanging deicer thermistor
and the liquid pipe thermistor from
the outdoor unit PCB and measure
resistance with a tester.
Is the
characteristic of the
above thermistor
normal?
Rectify the overcharge of
refrigerant.
YES
NO
NO
Replace the thermistor.
Install the thermistor correctly.
YES
CHECK 11
CHECK 11
