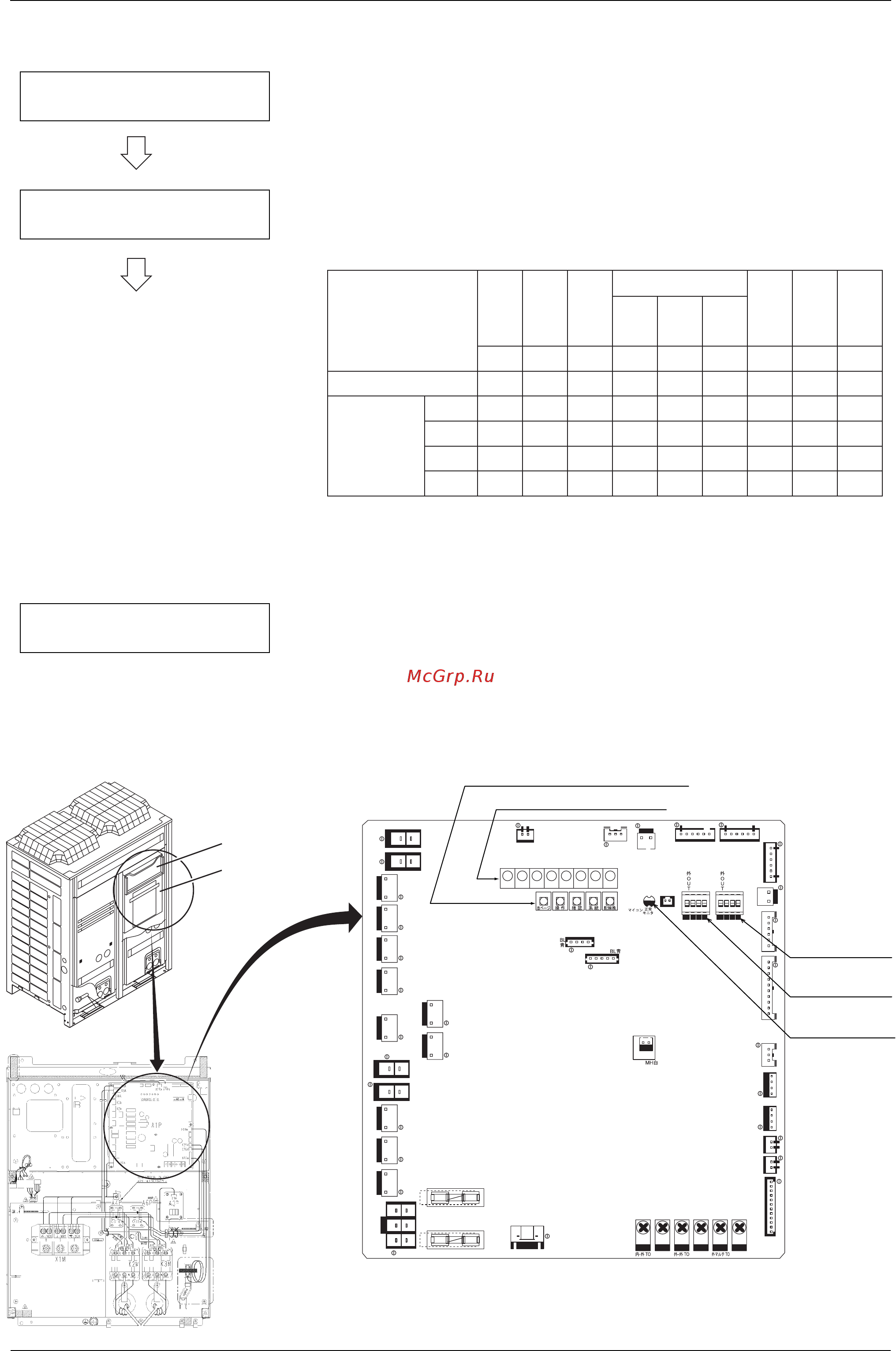

Test Operation Si341009
55 Test Operation
1.1.2 Turn power on
{ Be sure to turn the power on 6 hours before starting operation to protect
compressors. (to power on crankcase heater)
{ Check to be sure the transmission is normal.
The transmission is normal if the LEDs display conditions as shown in
table below.
(*) The master unit is the outdoor unit to which the transmission wiring for
the indoor units is connected.
The other outdoor units are slave units.
{ Make field settings if needed.
(For the setting procedure, refer to information in "Field Setting from
Outdoor Unit" on P. 60 onward.)
For the outdoor-multi system, make field settings with the master unit.
(Field settings made with the slave unit will be all invalid.)
Turn outdoor unit and indoor
unit power on.
Check the LED display of the
outdoor unit PCB.
Make field settings with outdoor
unit PCB.
LED display
(Default status before
delivery)
Micro-
computer
operation
monitor
MODE
HAP
l
l
l
l
l
H1P
h
h
h
h
h
H2P
h
h
h
h
h
H3P
k
k
h
h
h
H4P
h
h
h
h
h
H5P
h
h
h
h
h
H6P
h
h
h
h
h
H7P
h
h
h
h
h
H8P
h
k
l
l
l
Master
Slave 1
Slave 2
Slave 3
One outdoor unit installed
When
multiple
outdoor unit
installed (*)
TEST
IND
COOL / HEAT select
LED display k ON h OFF l Blinking
MASTER
SLAVE
Low
noise
Demand
Multi
X6A
X5A
X4AX3AX2AX7AX15AX11AX12AX13A
X10A
X9A
X1A
F1U
F2U
X77A
IN/D UNIT
MULTI
UNIT
OUT/D UNIT
X66A
X26A X25A
X32A X31A X18A
X30A X29A
X36A
X21A
X22AX23AX20A
X28A
X34A
X37A
H1P H2P H3P
BS1 BS2 BS3 BS4 BS5
H4P H5P H6P H7P H8P
HAP
ON
X100A
X27A
SERV.
MONITOR
1234
X24A
X8AX14A
F1 F2 F1 F2 Q1 Q2
12
3
4
ON
1234
12
3
4
Push button switch (BS1~BS5)
LED lamp (H1P~H8P)
Dip switch
(DS2-1~2-4)*2
*2: Only with
spare PCB
Dip switch
(DS1-1~1-4)
Micro-computer
service monitor (HAP)
[Main PCB]
[El. comp. box lid (upper)]
Main PCB
(A1P)
Main PCB
(A1P)
[Outdoor unit]
El. comp. box lid
[Service Precaution label]
