Si341009 Troubleshooting by Remote Controller
Troubleshooting 154
Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
C/H SELECT of the external
control adaptor for outdoor unit
is set to “IND”.
Cool/Heat selection
is unified.
Confirmation of error 3 Confirmation of error 4

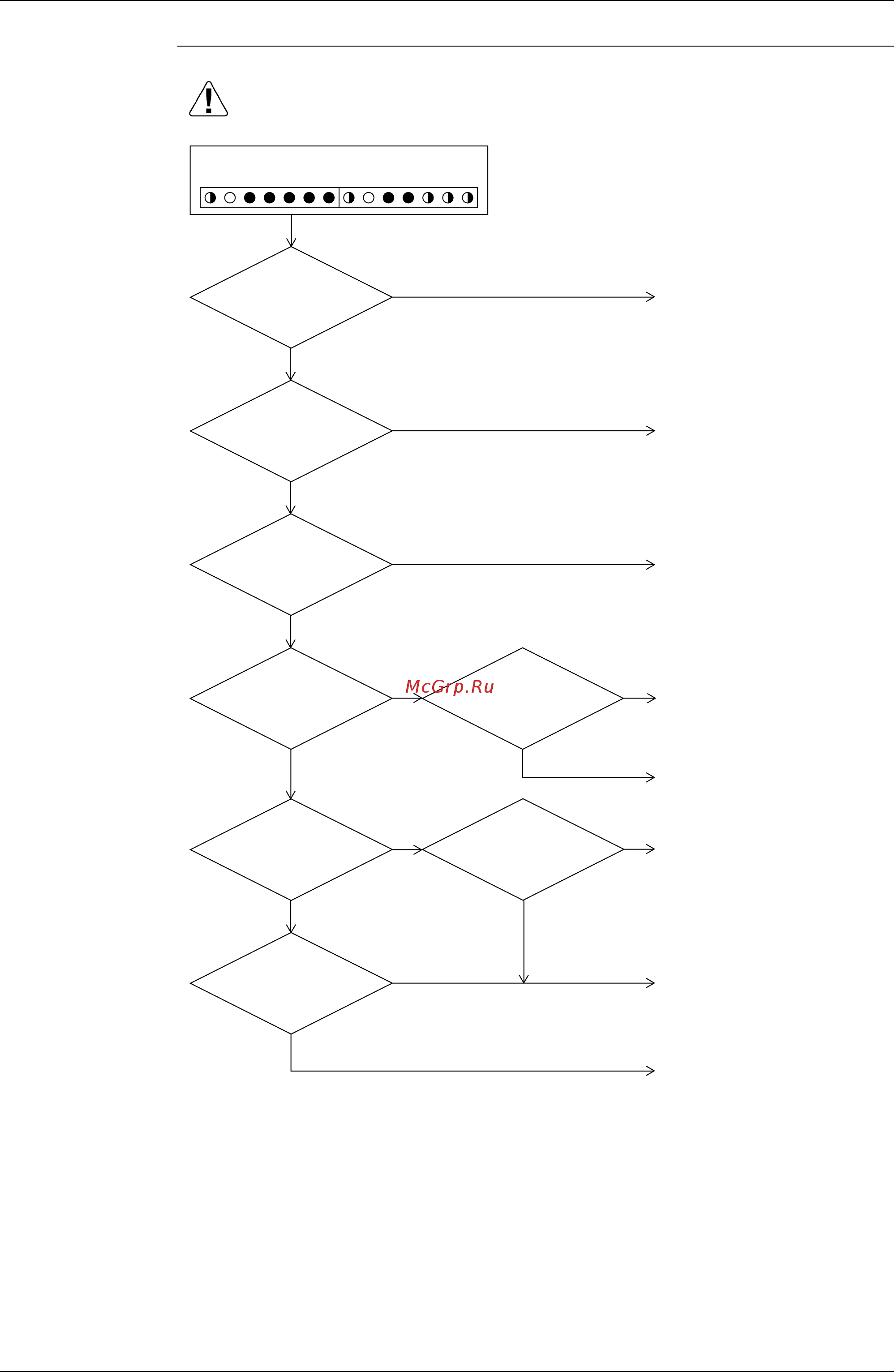

Diagnosis Flow 2
Setting of C/H SELECT
of the external control
adaptor for outdoor unit
is “MASTER”.
Setting of C/H SELECT
of the external control
adaptor for outdoor unit
is “SLAVE”.
NO
YES
YES
NO
NO
YES
The unified addresses for cool/
heat within the outdoor/outdoor
transmission are duplicated. Set
the address again.
Replace the outdoor unit main
PCB.
Supply the power to the outdoor
unit.
Replace the outdoor unit main
PCB.
Connect the power supply wire
for the external control adaptor
for outdoor unit to 5V supply
line.
Check if power is
supplied to the
outdoor unit.
Check if the power supply
wire for the external
control adaptor for outdoor
unit is connected to 5V
supply line.
Check if the normal
condition monitor
LED for the outdoor
unit main PCB
blinks.
Check if the normal
condition monitor LED
for the external control
adaptor for outdoor unit
blinks.
Set the C/H SELECT of the
external control adaptor for
outdoor unit to “IND”. Then
check if the failure occurs
again.
YES
NO NO
NONO
YES
YES
YES
NO
YES
Replace the PCB of the external
control adaptor for outdoor unit.
Replace the outdoor unit main
PCB.
