Si341009 Field Setting from Outdoor Unit
Test Operation 76

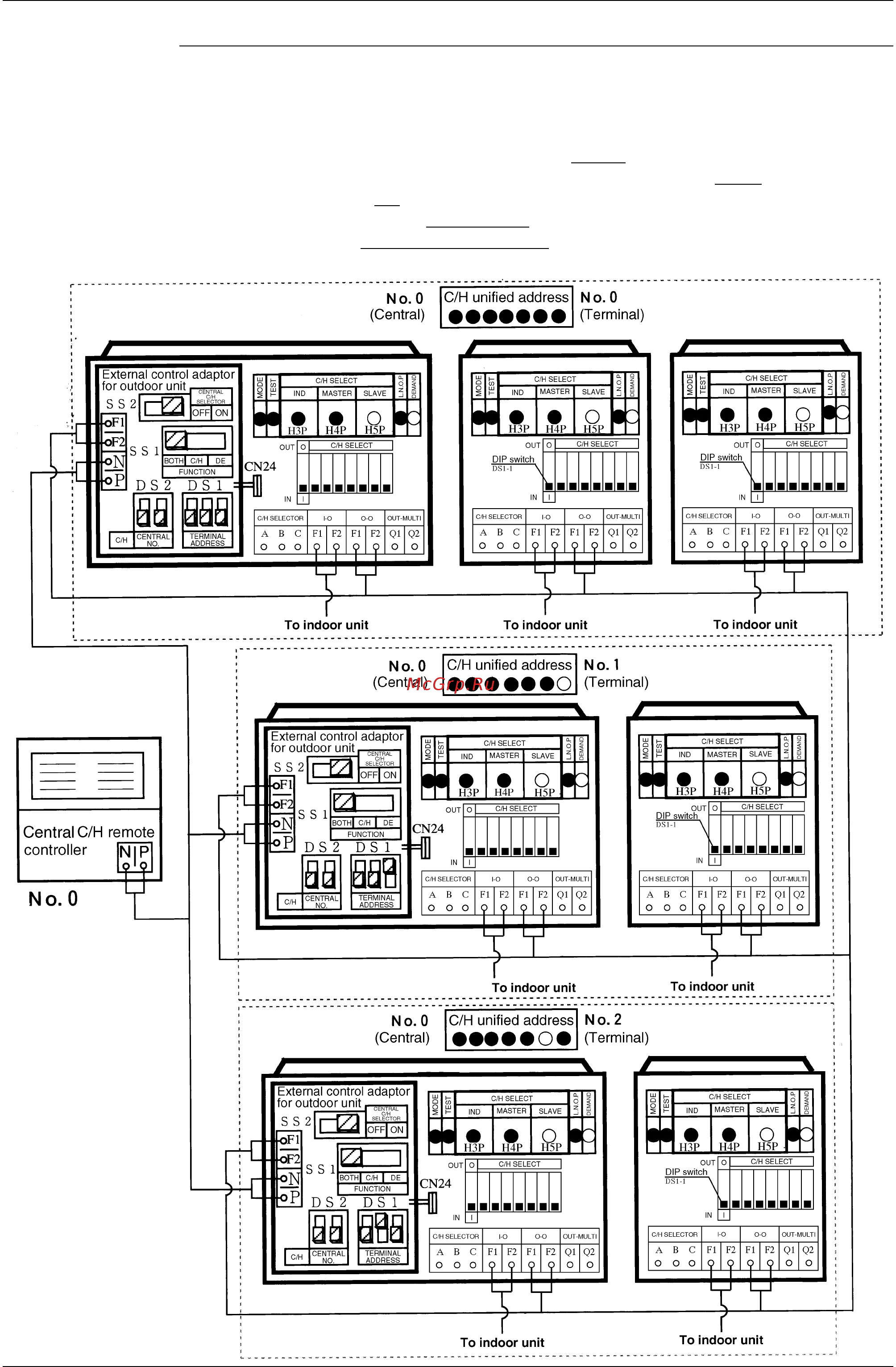

g Set cool/heat at all outdoor unit systems simultaneously for each outdoor unit external control adaptor
by using the centralized remote controller.
Install the outdoor unit external control adaptor for outdoor unit (optional) onto the outdoor-
outdoor, indoor-outdoor, or indoor-indoor transmission line.
Use "setting mode 1" and set all outdoor units to SLAVE.
Set the outdoor unit external control adaptor for outdoor unit SS1 to BOTH (factory setting)
or C/H and set SS2 to ON
.
Use "setting mode 2" and set DS1 and DS2 on the outdoor unit external control adaptors for
outdoor unit and the unified heat/cool address
on the outdoor unit main PCB to the same
address. (The factory setting addresses are all "0".)
