SiBE041029_A Indoor Unit
Printed Circuit Board Connector Wiring Diagram 11

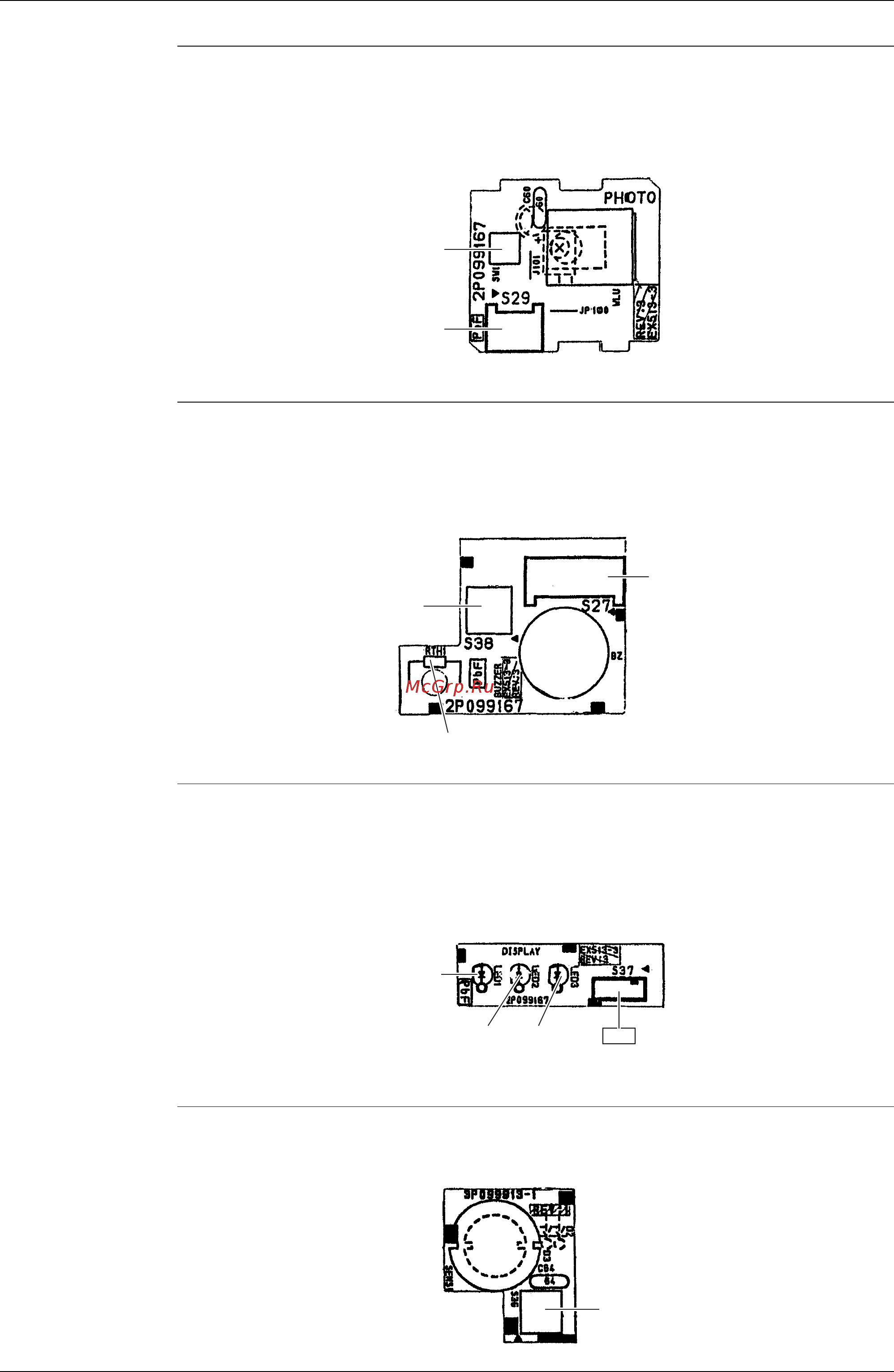

PCB (2): Signal
Receiver PCB
PCB (3): Buzzer
PCB
PCB (4): Display
PCB
PCB (5):
INTELLIGENT
EYE Sensor PCB
1) S29 Connector for control PCB
2) SW1 (S1W) Forced cooling operation [ON/OFF] button
∗ Refer to page 107 for detail.
SW1
S29
2P099167-1
1) S27 Connector for control PCB
2) S38 Connector for display PCB
3) RTH1 (R1T) Room temperature thermistor
2P099167-1
RTH1
S38
S27
1) S37 Connector for buzzer PCB
2) LED1 (H1P) LED for operation (green)
3) LED2 (H2P) LED for timer (yellow)
4) LED3 (H3P) LED for HOME LEAVE operation (red)
LED2 LED3
S37
2P099167-1
LED1
1) S36 Connector for control PCB
S36
3P099913-1
