Indoor Unit SiBE041029_A
10 Printed Circuit Board Connector Wiring Diagram
1. Indoor Unit

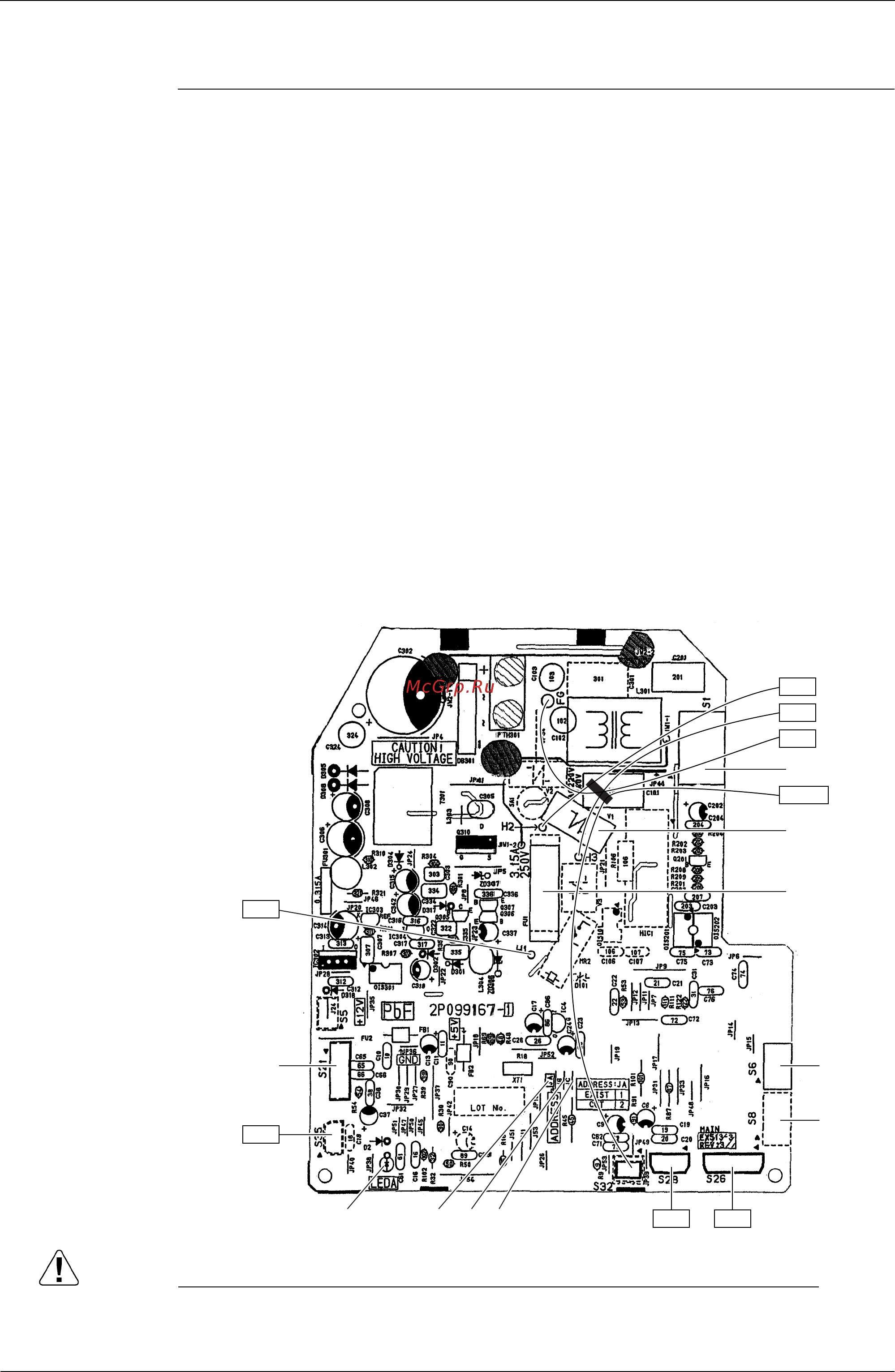

PCB (1): Control
PCB
Caution Replace the PCB if you accidentally cut the jumpers other than JA, JB, and JC.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
1) S1 Connector for fan motor
2) S6 Connector for swing motor (horizontal blades)
3) S8 Connector for swing motor (vertical blades)
4) S21 Connector for centralized control (HA)
5) S26 Connector for buzzer PCB
6) S28 Connector for signal receiver PCB
7) S32 Connector for indoor heat exchanger thermistor
8) S35 Connector for INTELLIGENT EYE sensor PCB
9) H1, H2, H3 Connector for terminal board (indoor - outdoor transmission)
10)FG Connector for terminal board (frame ground)
11)JA Address setting jumper
∗ Refer to page 109 for detail.
12)JB Fan speed setting when compressor stops for thermostat OFF
JC Power failure recovery function (auto-restart)
∗ Refer to page 111 for detail.
13)LED A LED for service monitor (green)
14)FU1 Fuse (3.15 A, 250 V)
15)V1 Varistor
S1
V1
FU1
S6
S8
2P099167-1
JCJBJALED A
S21
S35
H1
S26S28
H2
H3
FG
S32
