FTX50/60/71GV1B SiBE041029_A

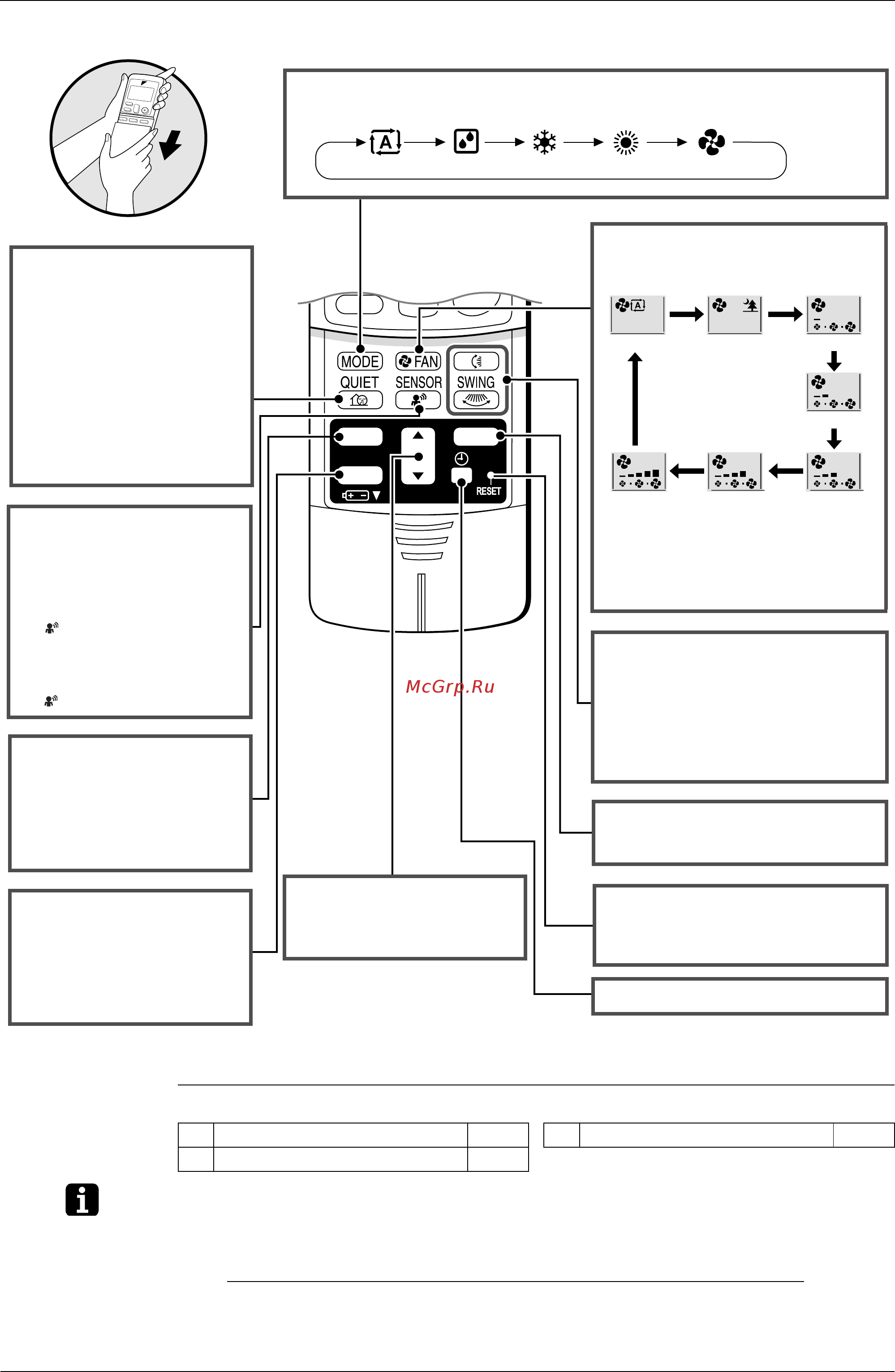

48 Remote Controller
Open the Front Cover
Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manuals from ‘DISTRIBUTOR’S PAGE’:
DISTRIBUTOR’S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php
)
TIMER
ON
CANCEL
OFF
RESET button
• Restarts the unit if it freezes.
• Use a thin object to push.
Low
Middle low
MiddleMiddle highHigh
QUIET button
• OUTDOOR UNIT QUIET
operation
• QUIET operation is not
available in FAN and DRY
operation
• QUIET operation and
POWERFUL operation
cannot be used at the same
time. Priority is given to the
function you pressed last.
ON TIMER button
• Press this button and adjust
the day and time with the
TIMER setting button.
Press this button again to
complete TIMER setting.
OFF TIMER button
• Press this button and adjust
the day and time with the
TIMER setting button.
Press this button again to
complete TIMER setting.
TIMER Setting button
• Changes the ON/OFF TIMER
settings.
CLOCK
5
button
TIMER CANCEL button
• Cancels the timer setting.
SENSOR
button
(
INTELLIGENT EYE operation
3
)
• To start INTELLIGENT EYE
operation, press the SENSOR
button.
" " is displayed on the LCD.
SWING
4
button
• Adjusts the airflow direction.
• When you press the SWING button,
the flap moves up and down, or
(and) the louver moves right and left.
The flap (louver) stops when you
press the SWING button again.
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
Auto
Indoor unit quiet
FAN setting button
• Selects the airflow rate setting
every time you press this button.
MODE button
• Selects the operation mode.
(R18205)
•
To cancel the INTELLIGENT
EYE operation, press the
SENSOR button again.
" "
disappears from the LCD.
3
INTELLIGENT EYE operation
P.27 5 Clock setting P.29
4 Auto swing setting P.19
