MAINTENANCE
■ Troubleshooting (continued)
D Scanning
PROBLEM POSSIBLE CAUSE SOLUTION REF.
A programmed scan does not
stop.
•Squelchisopen. •Set the [RF/SQL] control to the threshold
point.
p. 32
A programmed scan does not
start.
•
The same frequencies are programmed into the
Scan Edge Memory channels
“P1” and “P2.”
•Program different frequencies into
the Scan
Edge Memory channels
“P1” and “P2.”
p. 70
A memory scan does not start. •Twoormorememorychannelshavenotbeen
programmed.
•Programmorethantwomemorychannels. p. 70
A select memory scan does
not start.
•Twoormorememorychannelshavenotbeen
designated as select channels.
•Designatemorethantwomemorychannelsas
select channels for the scan.
p. 80
A ∂F scan does not start. •The center frequency for the ∂F scan is not
programmed.
•Programthecenterfrequencyforthe∂F scan. p. 81
D Display
PROBLEM POSSIBLE CAUSE SOLUTION REF.
The displayed frequency does
not change properly.
•TheDialLockfunctionisturnedON.
•TheSetmodescreenisselected.
•TheinternalCPUhasmalfunctioned.
•Push[LOCK]toturnOFFthefunction.
•Push[MENU] to exit the Set Mode.
•ResettheCPU.
p. 61
p. 85
p. 100

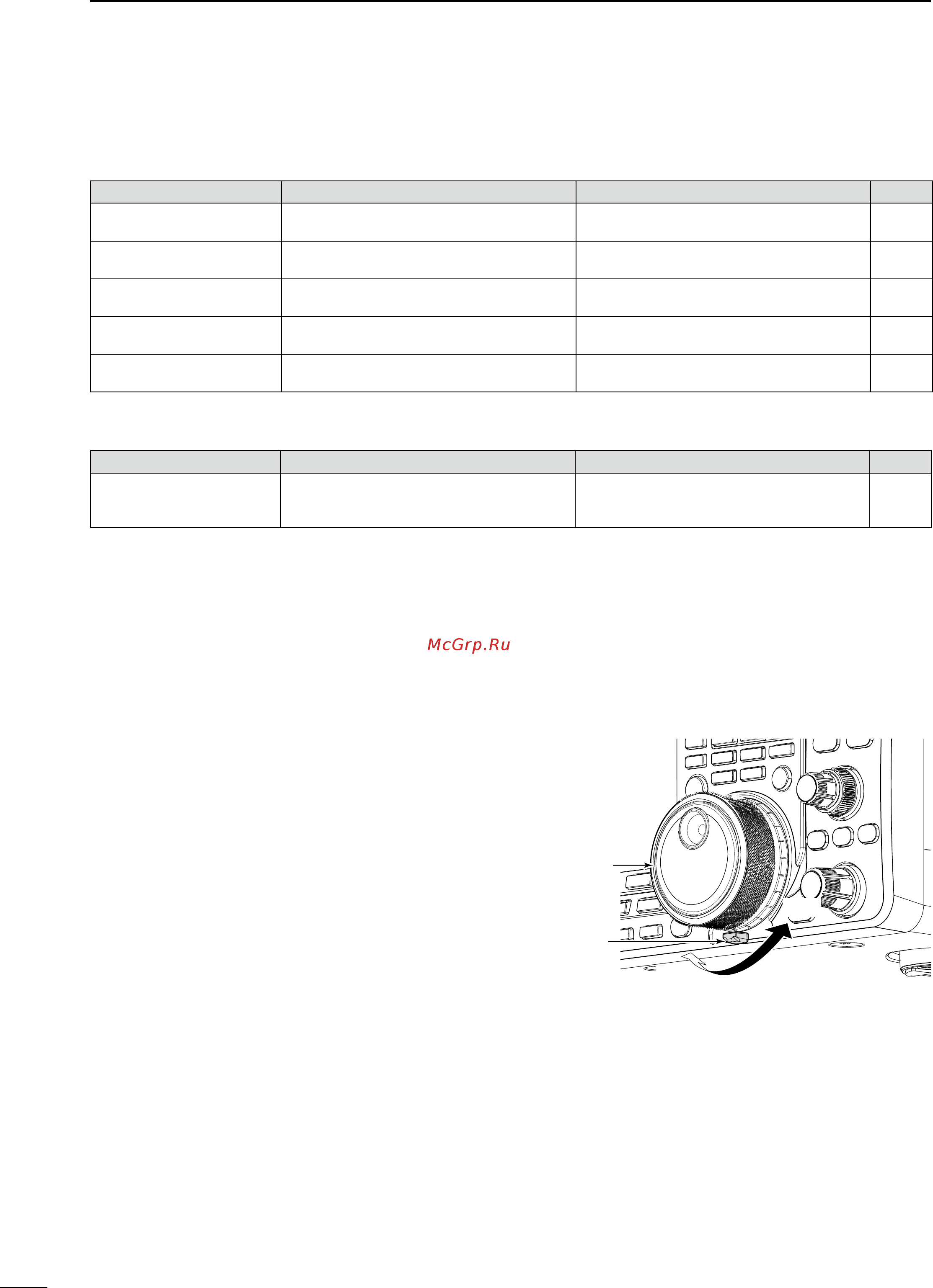

The tuning tension of [DIAL] may be adjusted to suit
your preference.
The tension adjustment is located on the bottom side
of the front panel. See the figure to the right.
Slide the tension adjustment to a comfortable level
while turning the dial continuously and evenly in one
direction.
DIAL
Tuning tension
adjustment
Light
Firm
■ Dial tuning tension adjustment
