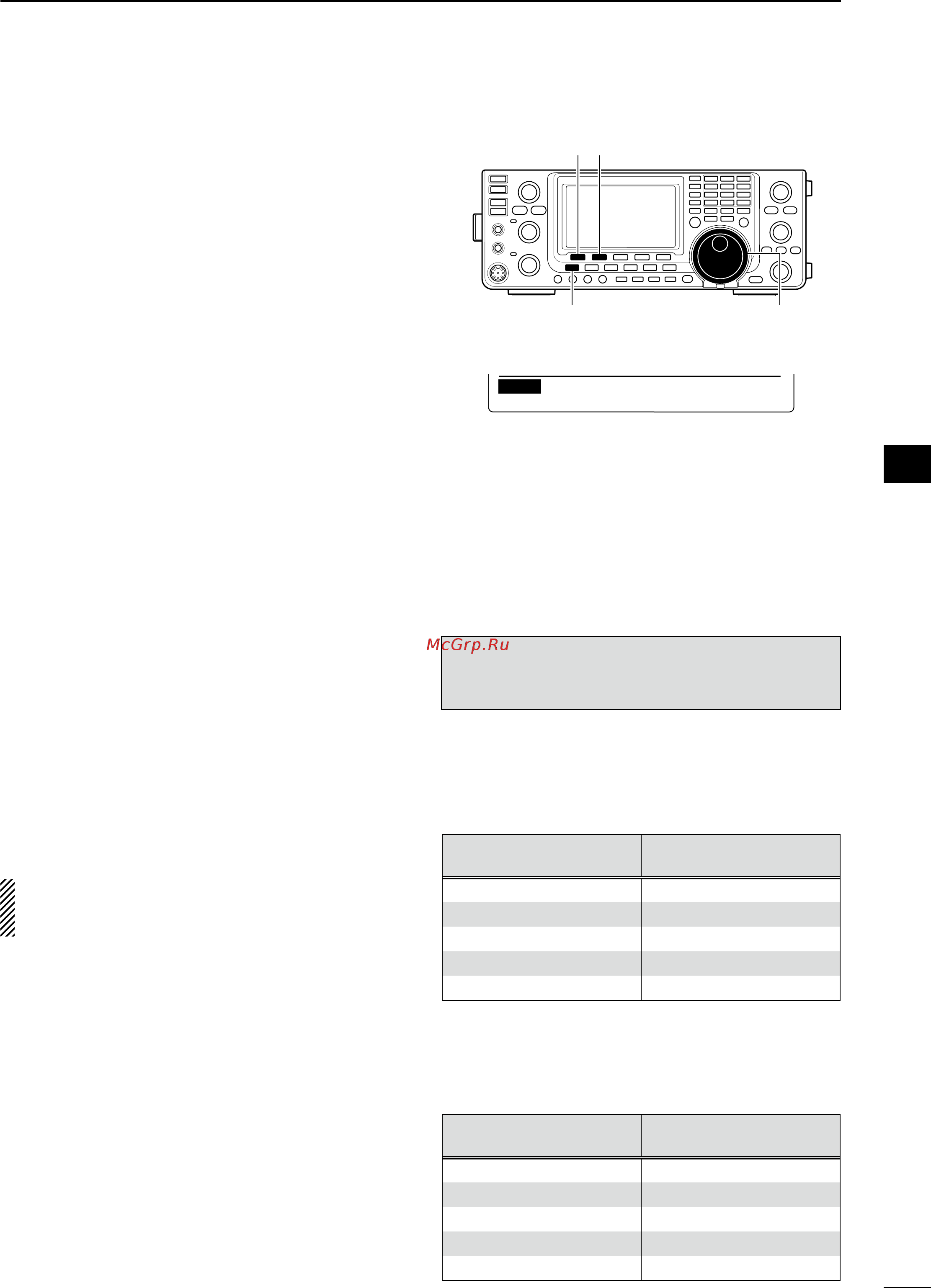

D Auto Tuning Step function
When you rotate [DIAL] rapidly, the tuning speed can
automatically accelerate, depending on the “MAIN
DIAL Auto TS” setting in the Set mode.
q Hold down [MENU] for 1 second to enter the Set
mode.
w Push [Y](F-1) or [Z](F-2) to select “MAIN DIAL
Auto TS.”
e Rotate [DIAL] to select the HIGH or LOW tuning
speed acceleration, or to turn OFF the function.
•HIGH:When thetuningstepisset to1 kHz or
smaller steps, the tuning speed is approxi-
mately five times faster.
When the tuning step is set to 5 kHz or
larger steps, the tuning speed is approxi-
mately two times faster. (default)
•LOW:Approximatelytwotimesfaster.
•OFF :TurnsthefunctionOFF.
•Holddown[F-3]for1secondtoresettothedefaultset-
ting, if desired.
r Push [MENU] to save, and exit the Set mode.
Operation on the 5 MHz frequency band is allowed on
5 discrete frequencies and must adhere to the follow-
ing:
•TheUSB,USBDataandCWmodes
•
Maximum of 100 watts ERP (Effective Radiated Power)
•2.8kHzbandwidth(maximum)
It is your responsibility to set all controls so that trans-
mission in this frequency band meets the stringent
conditions under which amateur operations may use
these frequencies.
NOTE: We recommend that you store these fre-
quencies, modes and filter settings into memory
channels, for easy recall.
[∫][√]
[DIAL][MENU]
HIGH (default)
Ù 26 Ú HIGH
SET MAIN DIAL Auto TS
•For the USB and USB Data modes
The FCC specifies center frequencies on the 5 MHz fre-
quency band. However, the transceiver displays carrier
frequency. Therefore, tune the transceiver to 1.5 kHz
below the specified FCC channel center frequency.
Transceiver Displayed
Frequency
FCC Channel
Center Frequency
5.33050 MHz 5.33200 MHz
5.34650 MHz 5.34800 MHz
5.35700 MHz 5.35850 MHz
5.37150 MHz 5.37300 MHz
5.40350 MHz 5.40500 MHz
•For the CW mode
The transceiver displays the center frequency. There-
fore, tune the transceiver to the specified FCC channel
frequency when you operate in these modes.
Transceiver Displayed
Frequency
FCC Channel
Center Frequency
5.33200 MHz 5.33200 MHz
5.34800 MHz 5.34800 MHz
5.35850 MHz 5.35850 MHz
5.37300 MHz 5.37300 MHz
5.40500 MHz 5.40500 MHz
D About the 5 MHz frequency band operation (USA version only)
To assist you in operating within the rules specified
by the FCC, transmission is illegal on any frequen-
cies other than the five shown in the tables below.
