63
6

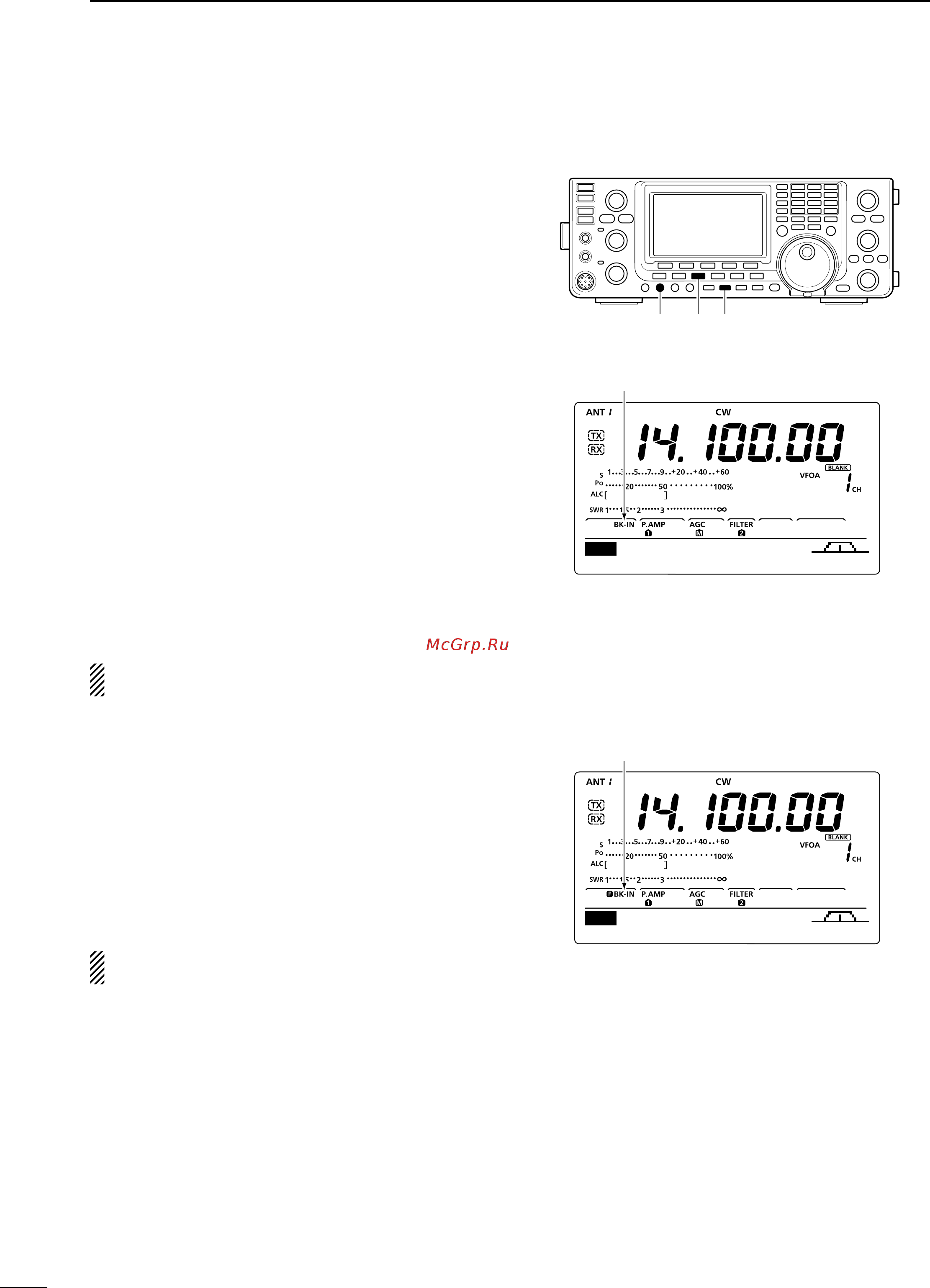

FUNCTIONS FOR TRANSMIT
■ Break-in function
(Mode: CW
)
The Break-in function is used in the CW mode to auto-
matically toggle the transceiver between transmit and
receive when keying. The IC-7410 is capable of Full
Break-in or Semi Break-in.
D Semi Break-in operation
During Semi Break-in operation, the transceiver imme-
diately transmits when you key down, then returns to
receive after a pre-set delay time has passed after you
stop keying.
q Push [CW] to select the CW or CW-R mode.
w Push [VOX/BK-IN] one or more times to turn ON
the Semi Break-in function.
•“BK-IN”appears.
e Rotate the [BK-IN DELAY] control to adjust the
break-in delay time (the delay from transmit to re-
ceive).
When using a paddle, rotate the [KEY SPEED] con-
trol to adjust the keying speed.
D Full Break-in operation
During Full Break-in operation, the transceiver trans-
mits when you key down, then immediately returns to
receive when you release.
q Push [CW] to select the CW or CW-R mode.
w Push [VOX/BK-IN] one or more times to turn ON
the Full Break-in function.
•“FBK-IN” appears.
When using a paddle, rotate the [KEY SPEED] con-
trol to adjust the keying speed.
Appears
Appears
AGC 1/4 KEY SCP
M1
[VOX/BK-IN][BK-IN DELAY] [CW]
AGC 1/4 KEY SCP
M1
