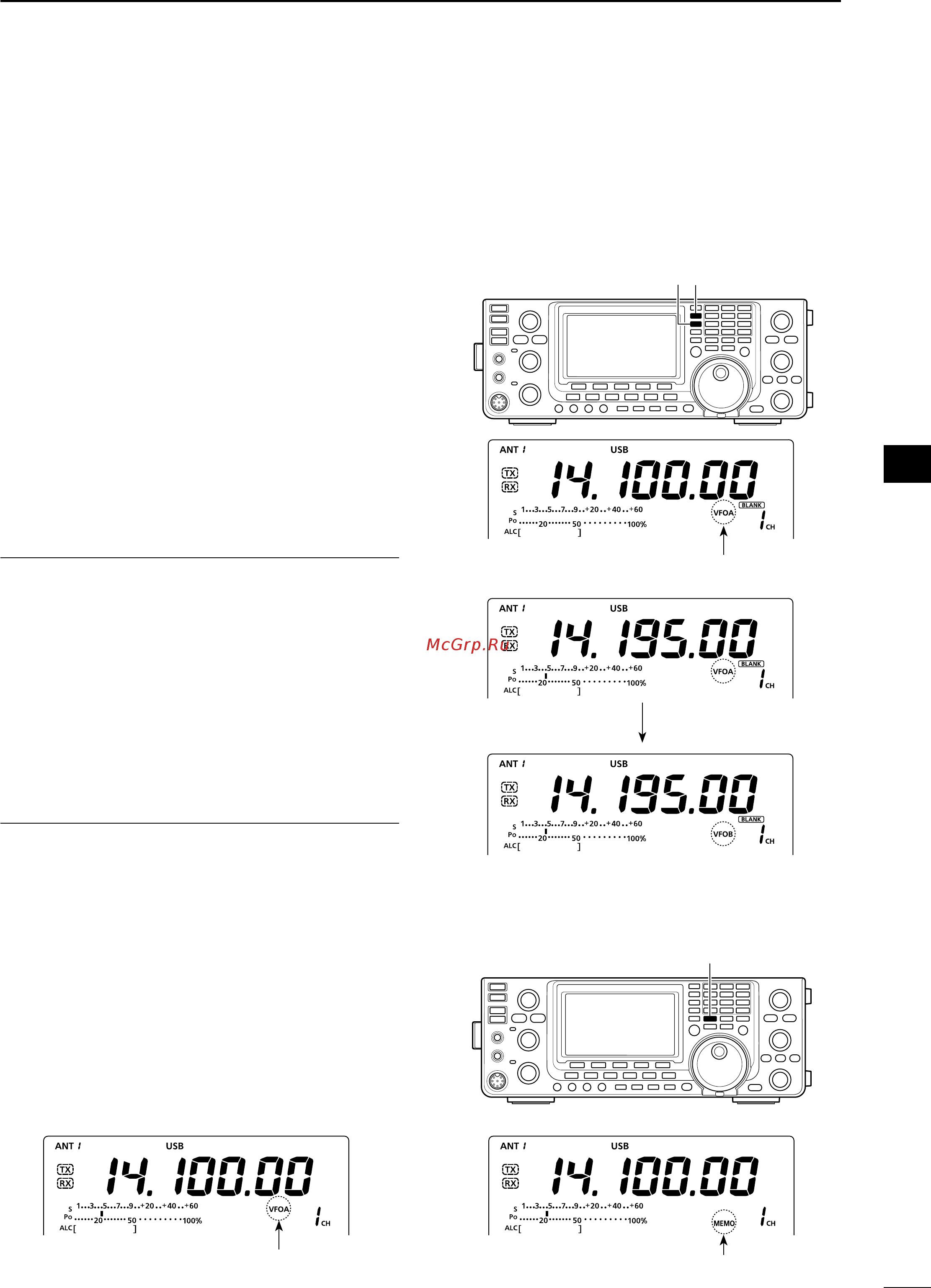

■ VFO description
The IC-7410 has two VFOs; “A” and “B,” that are con-
venient for quickly selecting two frequencies, or split
frequency operation. You can use either VFO to call up
a frequency and operating mode.
VFO is an abbreviation of Variable Frequency Oscil-
lator.
D Selecting the VFO A/B
➥ Push [A/B] to switch between the VFO A and
VFO B.
•“VFOA”or“VFOB”appearswhentheVFOisselected.
D VFO equalization
➥ Hold down [A=B] for 1 second to equalize the data
in both VFOs.
•Threebeepssoundwhentheequalizationiscomplete.
CONVENIENT!
Use two VFOs as quick memories:
When you find a new station, but wish to continue
searching, the dual VFO system can be used for quick
memory storage.
q Hold down [A=B] for 1 second to store the displayed
data into the undisplayed VFO.
w Continue searching for stations.
e Push [A/B] to show the stored data on the undis-
played VFO.
r To continue searching for stations, push [A/B] again
to show the displayed VFO.
■ Selecting VFO/Memory mode
➥ Push [VFO/MEMO] to toggle between the VFO
and Memory modes.
•“VFOA” or “VFOB” appears when in the VFO mode.
“MEMO” appears when in the Memory mode.
•Holding down [VFO/MEMO] for 1 second copies the
contents of the selected Memory channel into the dis-
played VFO. (p. 72)
AGC TBW SCP
M1
AGC TBW SCP
M1
The selected VFO icon The memory icon
[A/B] [A=B]
AGC TBW SCP
M1
AGC TBW SCP
M1
AGC TBW SCP
M1
q Hold down [A=B]
e Push [A/B]
Displayed VFO
Undisplayed VFO
[VFO/MEMO]
The selected VFO icon
