#3
TRANSMIT FREQUENCY CHECK SWITCH [XFC]
➥ During split frequency or repeater operation,
hold down to listen to the transmit frequency.
(pp. 52, 56)
•While holding down this switch, the transmit fre-
quency can be changed with [DIAL], keypad or
memo pad.
•When the Split Lock function isturnedON, push
[XFC] to cancel the Dial Lock function. (p. 67)
➥ When the RIT function is turned ON, hold down
to listen to the displayed frequency (RIT is
temporarily cancelled). (p. 53)
➥ When the ∂TX function is turned ON, hold down
to listen to the transmit frequency (including ∂TX
frequency offset). (p. 65)
#4 UP/DOWN SWITCHES [Y]/[Z]
➥ Push to change the operating channel. (p. 69)
➥ Hold down to continuously change the operating
channel.
#5 VFO EQUALIZE SWITCH [A=B] (p. 24)
Hold down for 1 second to equalize frequencies of
VFO A and B.
#6 VFO SELECT SWITCH [A/B] (p. 24)
Push to select either VFO A or VFO B to display.
•“VFOA”or“VFOB”isdisplayed,dependingonthese-
lection.
#7 SPLIT SWITCH [SPLIT]
➥ Push to turn the Split function ON or OFF. (p. 66)
•“SPLIT”appearswhentheSplitfunctionisON.
➥ Hold down for 1 second to activate the Quick
Split function.
(p. 67)
•Thetransmitfrequencyshiftsfromthereceivefre-
quency according to the “FM SPLIT Offset HF/50”
setting in the Set mode. (p. 86)
•TheQuickSplitfunctioncanbeturnedOFFinthe
“Quick SPLIT” item of the Set mode. (p. 86)
#8 BAND KEYS/KEYPAD
BAND KEYS Operation (p. 25)
➥ Push to select the operating band.
•[GENE•]selectsthegeneralcoverageband.
➥ Pushing the same key two or three times calls
up other stacked frequencies in the frequency
band.
•Icom’striplebandstackingregistermemorizesthree
frequencies in each frequency band.
KEYPAD Operation (p. 26)
After pushing [F-INP ENT], push the keys on the
keypad to enter a frequency. After entering, push
[F-INP ENT] to set the frequency.
•Example;toenter14.195MHz:
Push[F-INPENT][1][4][•][1][9][5][F-INPENT].
#9 PBT CLEAR SWITCH [PBT-CLR] (p. 59)
(Mode: SSB/CW/RTTY/AM)
➥Push to display the filter passband width and
shifting value for 2 seconds on the function dis-
play.
➥Hold down for 1 second to reset the PBT set-
tings.
$0 PASSBAND TUNING CONTROLS [TWIN-PBT]
(p. 59)
(Mode: SSB/CW/RTTY/AM)
Adjusts the receiver’s IF filter passband width using
the DSP circuit.
•Rotate this control or push [PBT-CLR] to display the
PBT settings (passband width and shifting value) for 2
seconds on the function display.
•Holddown[PBT-CLR]for1secondtoclearthePBT
settings.
•Theadjustmentrangeishalfofthepassbandwidth,and
the value is adjustable in 25 Hz steps in the SSB, CW,
and RTTY modes, and 100 Hz steps in the AM mode.
•ThesecontrolsfunctionasanIFshiftcontrol.

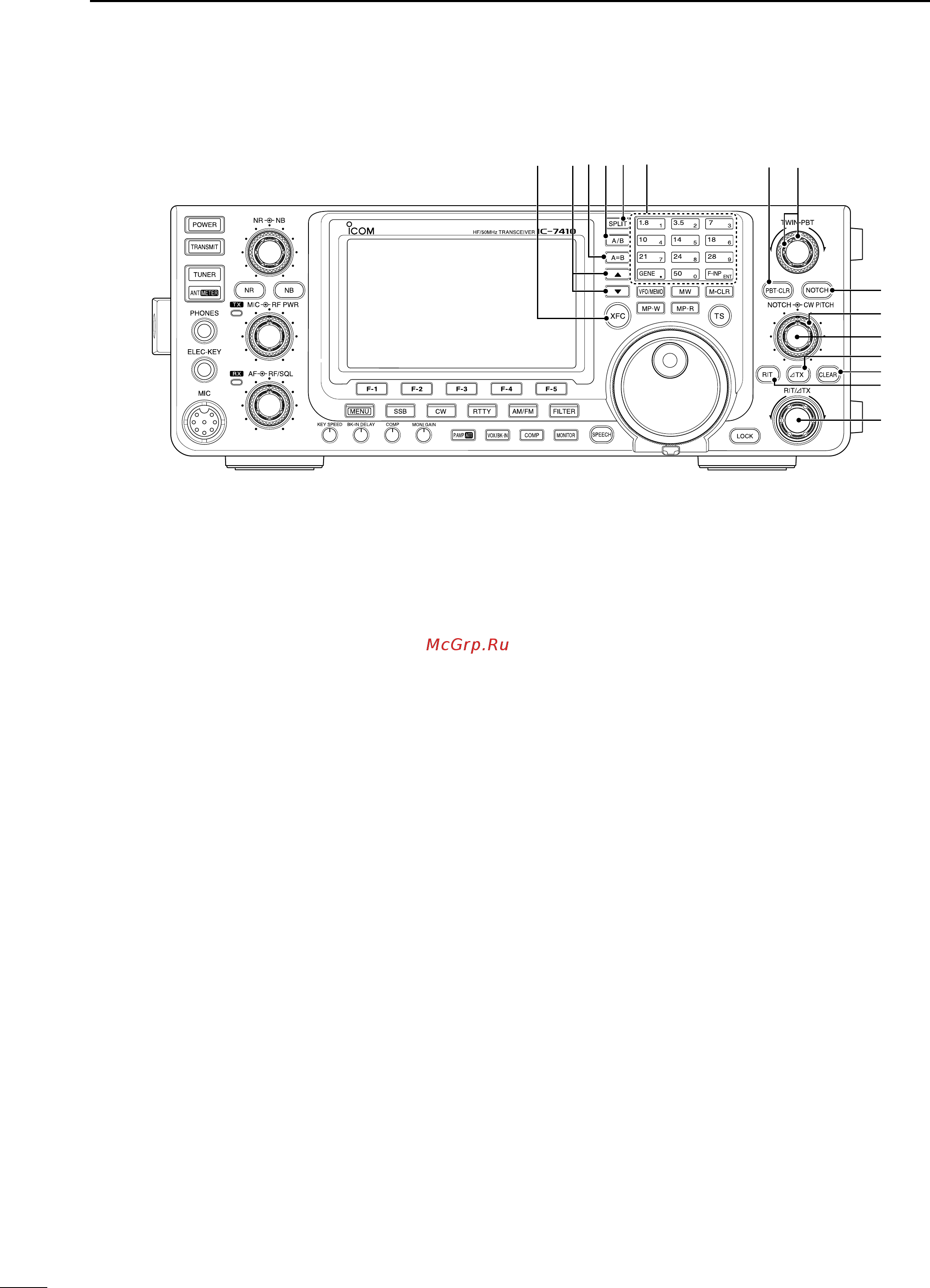

■ Front panel (continued)
5
1
PANEL DESCRIPTION
#6 #7 #8#83 #4#5
#9
$0
$2
$3
$1
$5
$6
$4
$7
