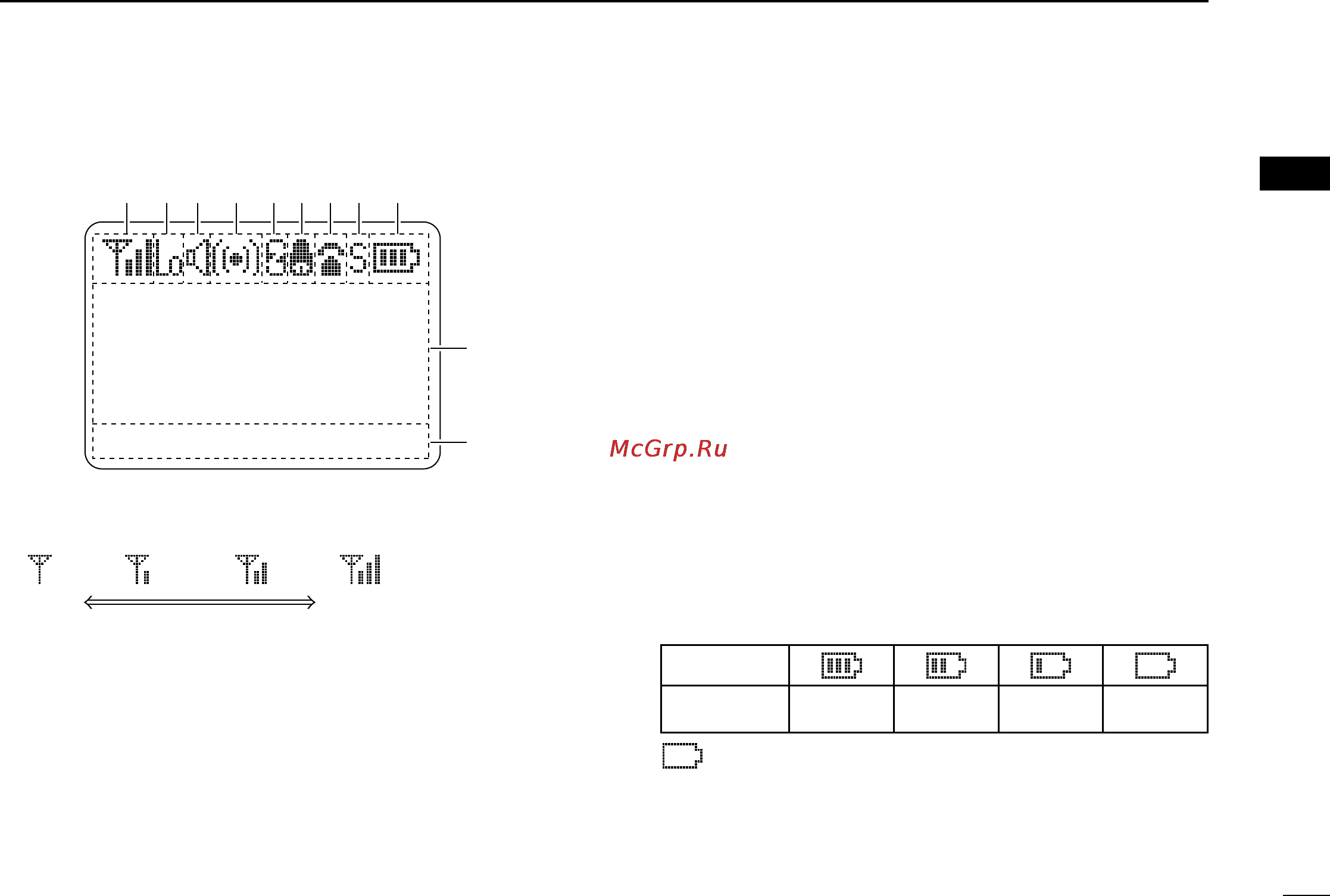

Function display
001
ch
-01
IC
-
F
9011
MON CLCK ZONE
!1
q e y ou itrw
!0
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
StrongWeak
w LOW POWER INDICATOR
Appears when low output power is selected.
• When high output power is selected, no indicator appears.
e AUDIBLE INDICATOR
Appears when the channel is in the ‘audible’ (unmute) con-
dition.
r COMPANDER INDICATOR
Appears when the compander function* is activated.
* Analog mode operation only.
t SCRAMBLER INDICATOR
Appears when the voice scrambler or encryption function
is activated.
y BELL INDICATOR
Appears/blinks when the specific page call* is received,
according to the pre-programming.
* P25 operation only.
u TELEPHONE INDICATOR
Appears when a phone call* is received.
* P25 operation only.
i SHORT MESSAGE INDICATOR
Appears when an Status message or Short message is
received.
o BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
Indication
Battery level Full Middle
Charging
required
No battery
blinks when the battery is exhausted.
