■ Optional battery case (BP-237)

The optional battery case uses 6 × AA (LR6) size alkaline

batteries. The battery case offers low output power.

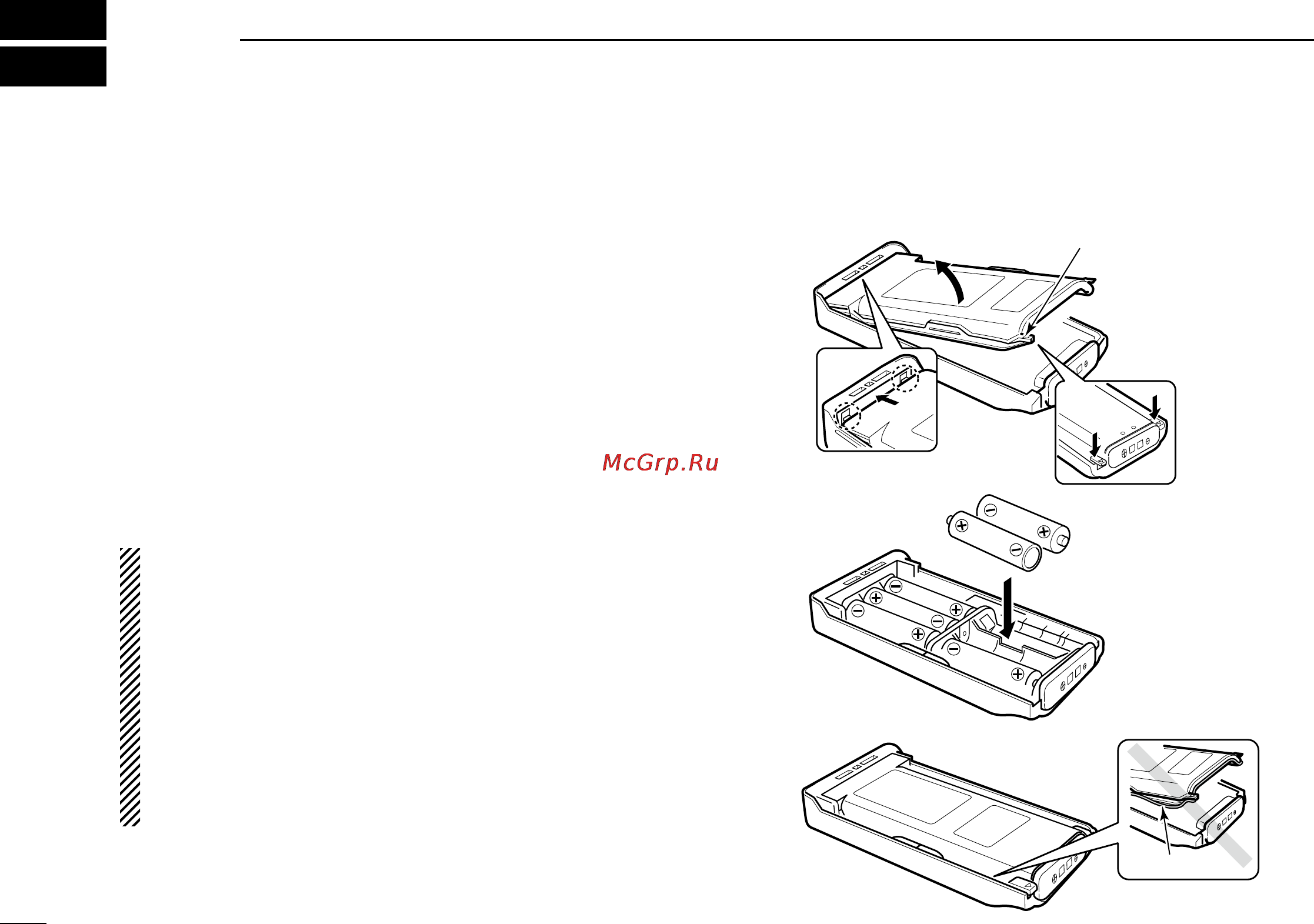

q Hook your ﬁnger under the latch, and open the cover in

the direction of the arrow (q). (Fig.1)

w Then, install 6 × AA (LR6) size alkaline batteries. (Fig.2)

• Install the alkaline batteries only.

• Be sure to observe the correct polarity.

• Do not pin the ribbon under the batteries.

e Close the cover by ﬁtting in the direction of the arrow (w)

ﬁrst, then check the latch is in place (e). (Fig.1)

• Be sure the gasket is set correctly, and do not protrude from the

battery case. (Fig.3)

CAUTION:

• When installing batteries, make sure they are all the

same brand, type and capacity. Also, do not mix new and

old batteries together.

• Keep battery contacts clean. It’s a good idea to clean

battery terminals once a week.

• Never incinerate used battery cells since internal battery

gas may cause them to rupture.

• Never expose a detached battery case to water. If the

battery case gets wet, be sure to wipe it dry before using

it.

BP-237

Fig.1

Fig.2

Fig.3

Latch

Gasket

BATTERY CASE
