PANEL DESCRIPTION

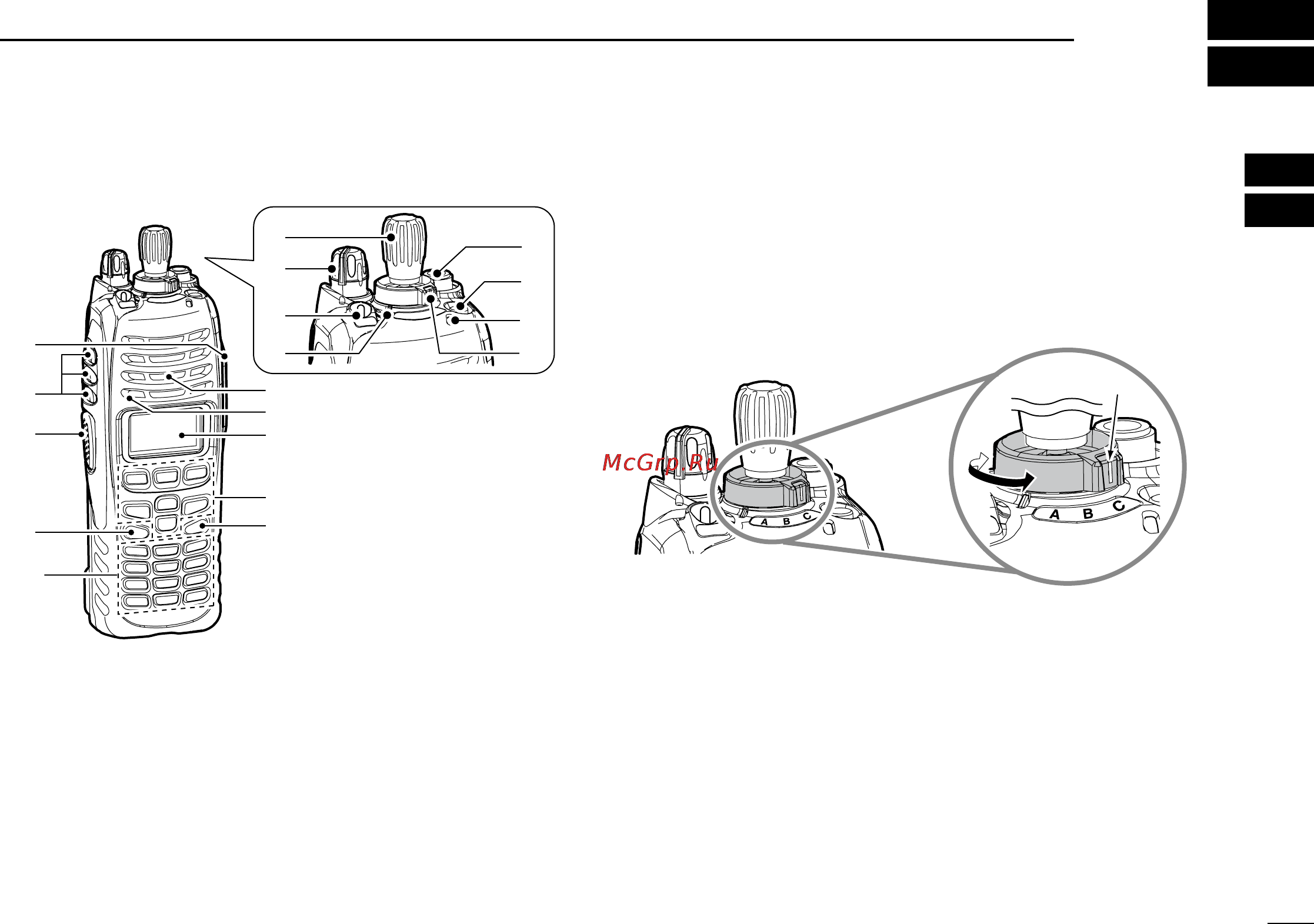

■ Front panel

* IC-F9011T only

Speaker

Microphone

Function display

(p. 6)

!1*

q ANTENNA CONNECTOR

 Connects the supplied antenna. (p. 1)

w DEALER-PROGRAMMABLE KEY [EMR]

 Desired function can be programmed by your dealer. (p. 7)

• [Emergency] is pre-programmed as default. (See the operating

guide for details.)

e BUSY/TRANSMIT INDICATOR

 ➥

Lights green while receiving a signal, or when the

squelch is open.

 ➥

Lights red while transmitting.

r DEALER-PROGRAMMABLE ABC SWITCH

 Desired function can be programmed to each position

(A, B or C) independently by your dealer. (p. 10)

To activate the pre-programmed function, set the white line

of the ABC switch to the position A, B or C.

When the white line of the ABC switch is

set to the position C, the pre-programmed

function at position C will be activated.

White line

t CHANNEL INDICATOR

 ➥

Lights white according to the “Backlight” setting of the

user set mode.

 ➥ When you rotate [Rotary selector] to select the channel

or zone, set the desired channel/zone number to this

point.
