Icom IC-F9011 [24/32] Optional battery chargers

BATTERY CHARGING

■ Optional battery chargers

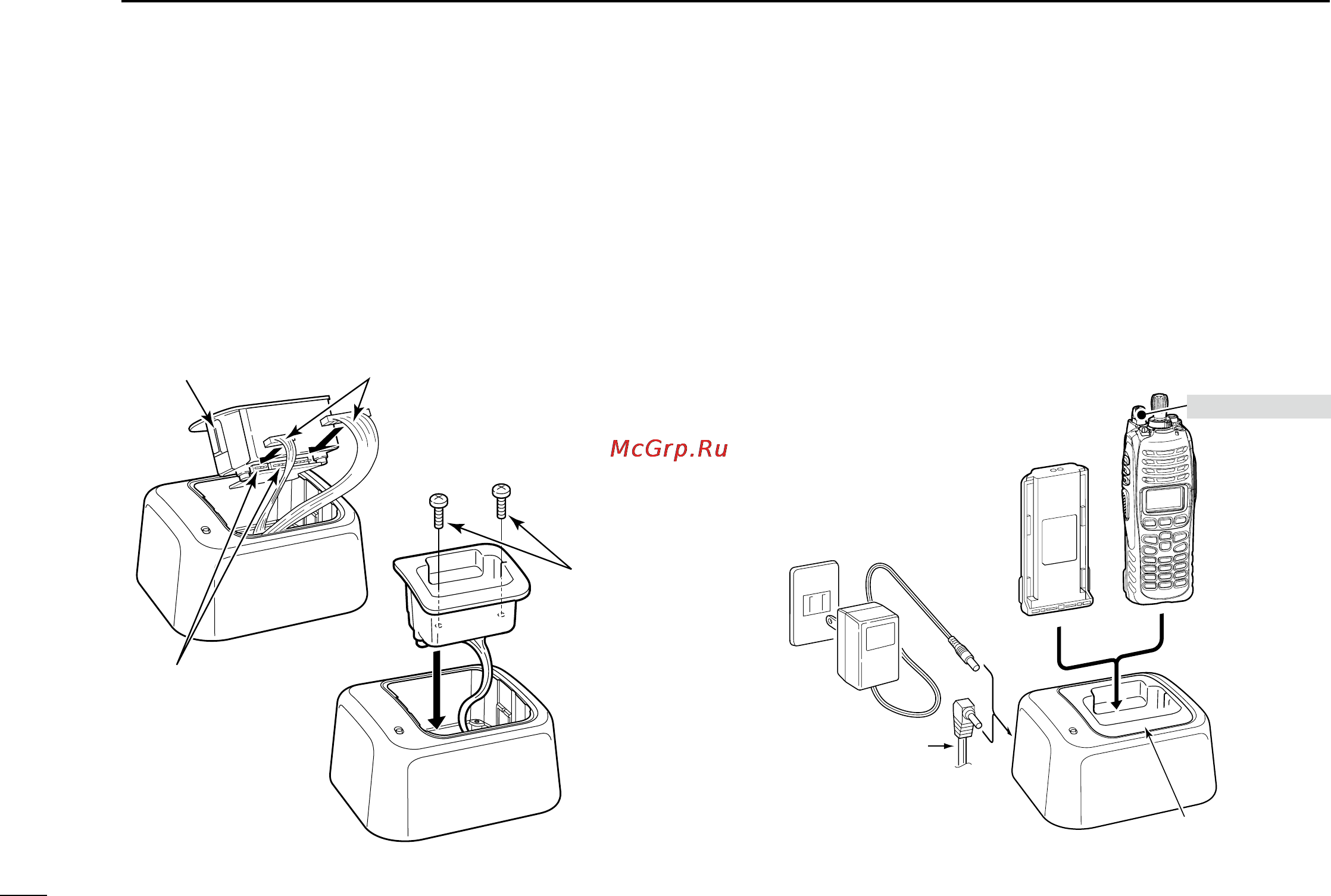

D AD-110 installation

The AD-110 charger adapter must be installed into the BC-

119N or BC-121N before battery charging.

➥ Connect the AD-110 charger adapter and the BC-119N/

BC-121N as below, then install the AD-110 into the holder

space of the BC-119N or BC-121N with the supplied

screws.

AD-110

Screws supplied

with the charger

adapter

Plugs

Connectors

This illustration shows the BC-119N.

D Rapid charging with the BC-119N+AD-110

The optional BC-119N provides rapid charging of the Li-Ion

battery pack. Charging period: Approx. 4 hours (with BP-254)

The following items are additionally required.

• AD-110 charger adapter (purchase separately)

• An AC adapter (may be supplied with BC-119N depending

on version) or the DC power cable (OPC-515L/CP-17L).

AD-110 charger

adapter is installed

in BC-119N.

BATTERY

PACK

TRANSCEIVER

AC adapter

(Not supplied

with some

versions.)

Optional OPC-515L

(for 13.8 V power

source) or CP-17L

(for 12 V cigarette

lighter socket) can

be used instead of

the AC adapter.

Turn power OFF
