BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

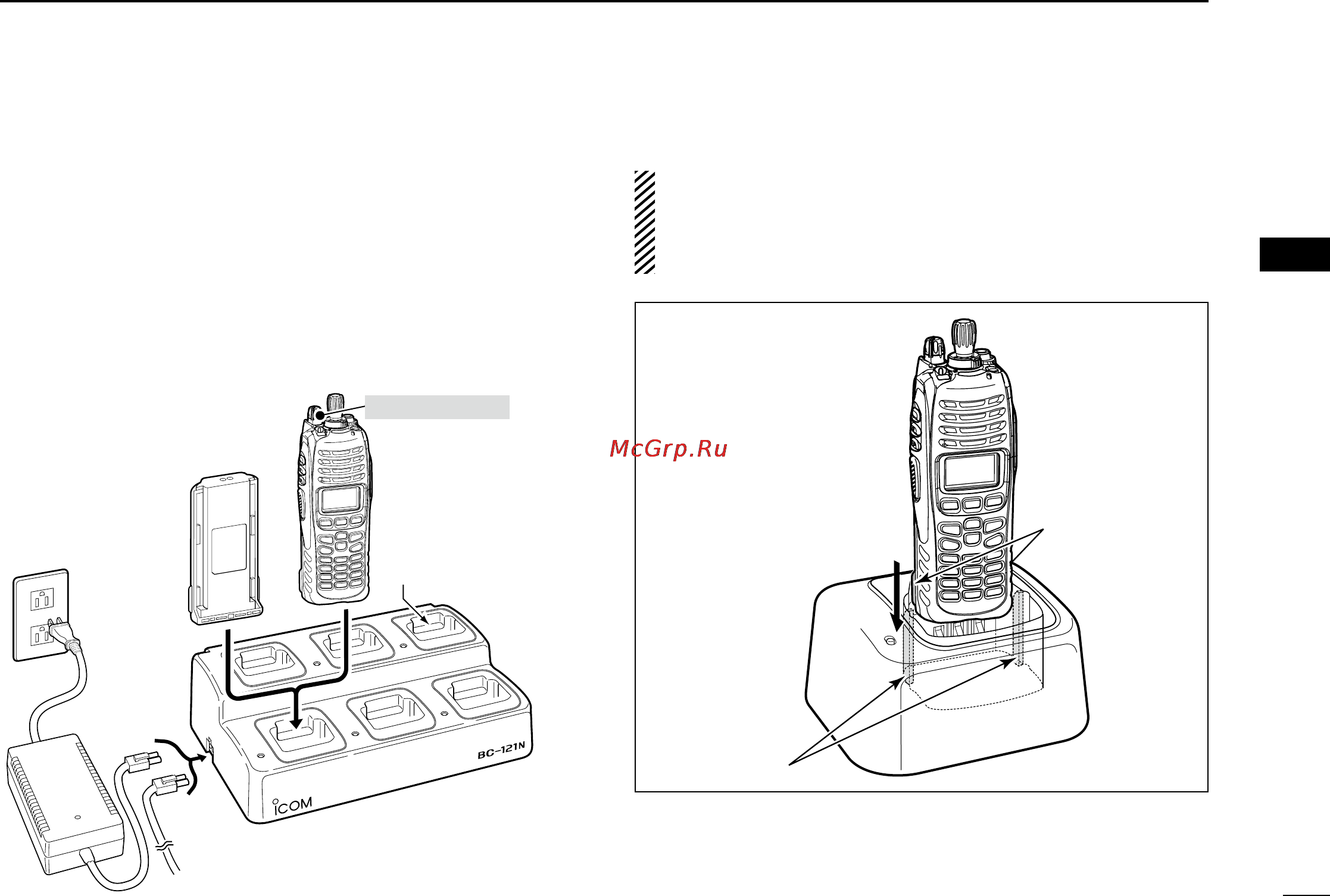

D Rapid charging with the BC-121N+AD-110
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. Charging period: Approx. 4 hours
(with BP-254)
The following items are additionally required.
• Six AD-110 charger adapters (purchase separately)
• An AC adapter (BC-157) or the DC power cable (OPC-656)
M
U
L
TI-C
H
AR
G
ER
AC adapter
(Purchased
separately)
AD-110 charger
adapters are installed
in each slot.
BATTERY
PACK
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
TRANSCEIVER
Turn power OFF
IMPORTANT: Battery charging caution
Ensure the guide lobes on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration shows the BC-119N.)
Guide rails
Lobs
