PANEL DESCRIPTION

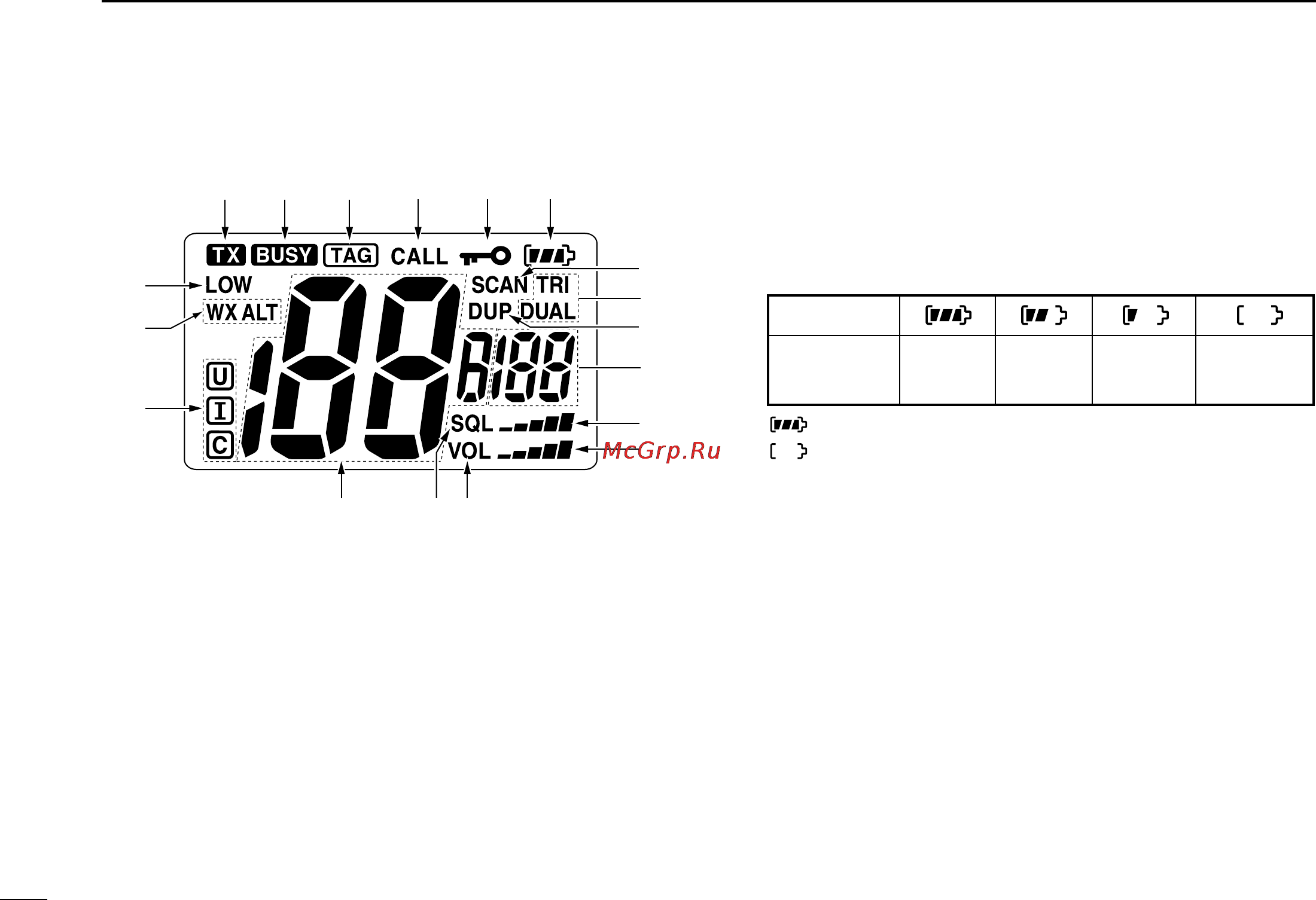

■ Function display
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR
➥
Appears when receiving a signal or when the squelch
opens. (p. 10)
➥ Blinks while monitor
ing. (p. 13)
e TAG CHANNEL INDICATOR (p. 15)
Appears when a
TAG channel is selected.
r CALL CHANNEL INDICATOR (p. 8)
Appears when the call channel is selected.
t LOCK INDICATOR (p. 13)
Appears while the loc
k function is activated.
y BATTERY INDICATOR
Indicates remaining batter
y power.
Indication
Full Middle
Charging
required
No battery
Battery level
blinks when the battery is exhausted.
blinks when the battery is over charged.
u SCAN INDICATOR (p. 15)
Blinks during scan.
i DUALWATCH/TRI-WATCH INDICATORS (p. 16)
“DUAL” appears during Dualwatch; “TRI” appears during
Tri-watch.
o DUPLEX INDICATOR
Appears when a duple
x channel is selected.
!0 SUB CHANNEL READOUT
➥
Indicates Channel 16 during priority scan, Dualwatch or
Tri-watch. (p. 16)
➥ Indicates the set mode item while in the set mode. (p. 17)
➥ Indicates the volume level while in the volume adjust-
ment mode. (p. 11)
➥
Indicates the squelch level while in the squelch adjust-
ment mode. (p. 12)
!5 !3!4
i
u
o
!2
!1
!0
!8
!6
q e r ytw
!7
