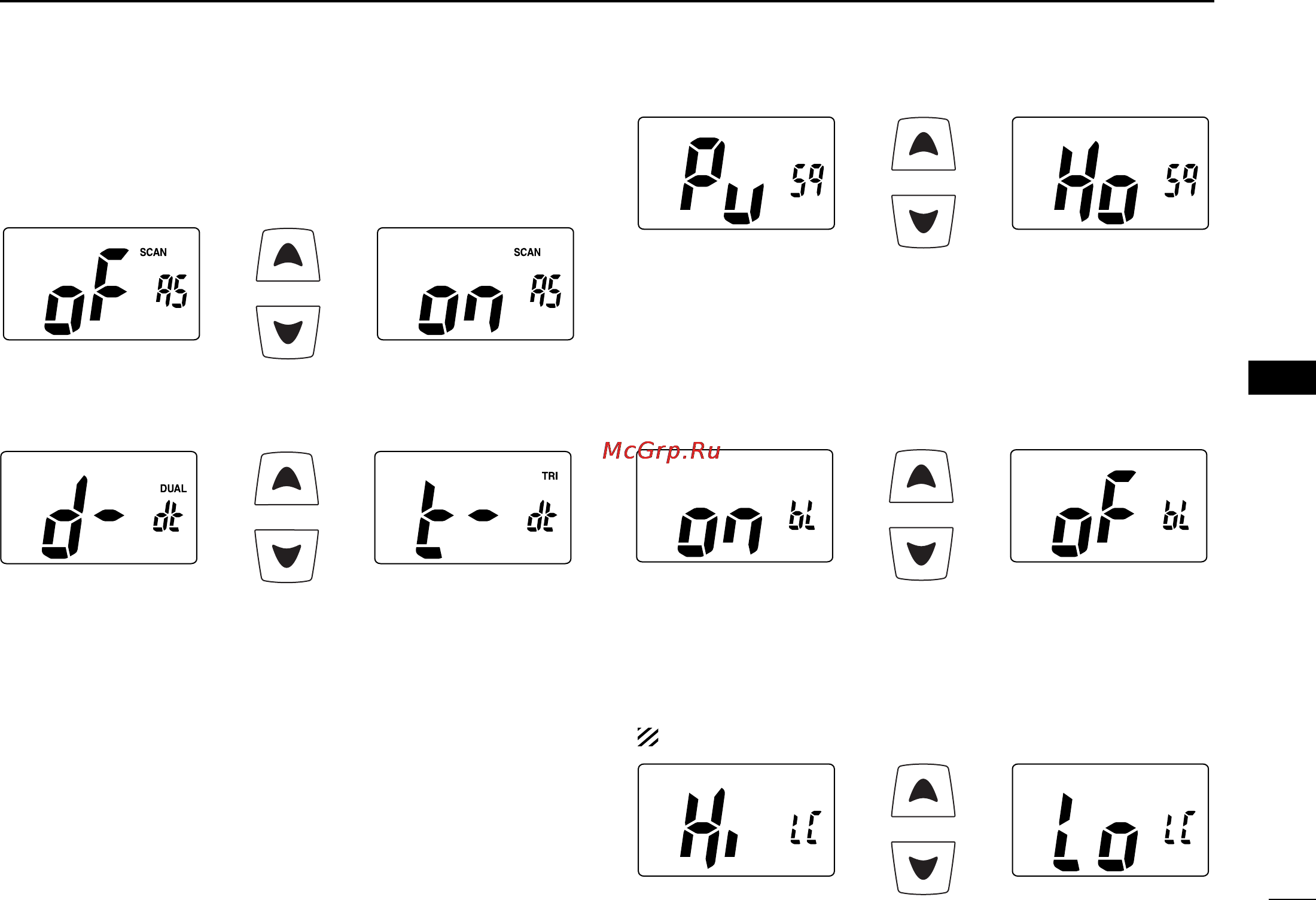

D Auto scan function “AS”
The auto scan function starts normal or priority scan auto-
matically when no signal is received, and no operation is
performed for 30 sec.
Push
Auto scan OFF (default) Auto scan ON
D Dual/Tri-watch function “dt”
This item can be set as Dualwatch or Tri-watch. (p. 16)
D Monitor key action “Sq”
The monitor key opens the squelch temporarily. This item sets
the key action.
• Pu (PUSH) : The monitor function is activated by pushing and
holding [VOL/SQL MONI] for 1 sec. The squelch
opens while holding down the key.
• Ho (HOLD) : The monitor function is activated by pushing and
holding [VOL/SQL MONI] for 1 sec. The squelch
stays open until any key is pushed.
D Automatic backlighting “bL”
This function is convenient for night-time operation. The
backlight can be selected from ON and OFF.
• The backlight is automatically activated when any key except for
[PTT] is pushed.
• The backlight is automatically turned OFF after 5 sec. of inactivity.
D LCD contrast setting “LC”
Set the LCD contrast level from High contrast and Low con-
trast.
The LCD contrast level makes no difference for indoor use.
19
7
SET MODE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
5
16
Push
Dualwatch function
(default)
Tri-watch function
Push
Push setting (default) Hold setting
Push
High contrast (default) Low contrast
Push
Auto backlighting ON
(default)
Auto backlighting OFF
