11
3

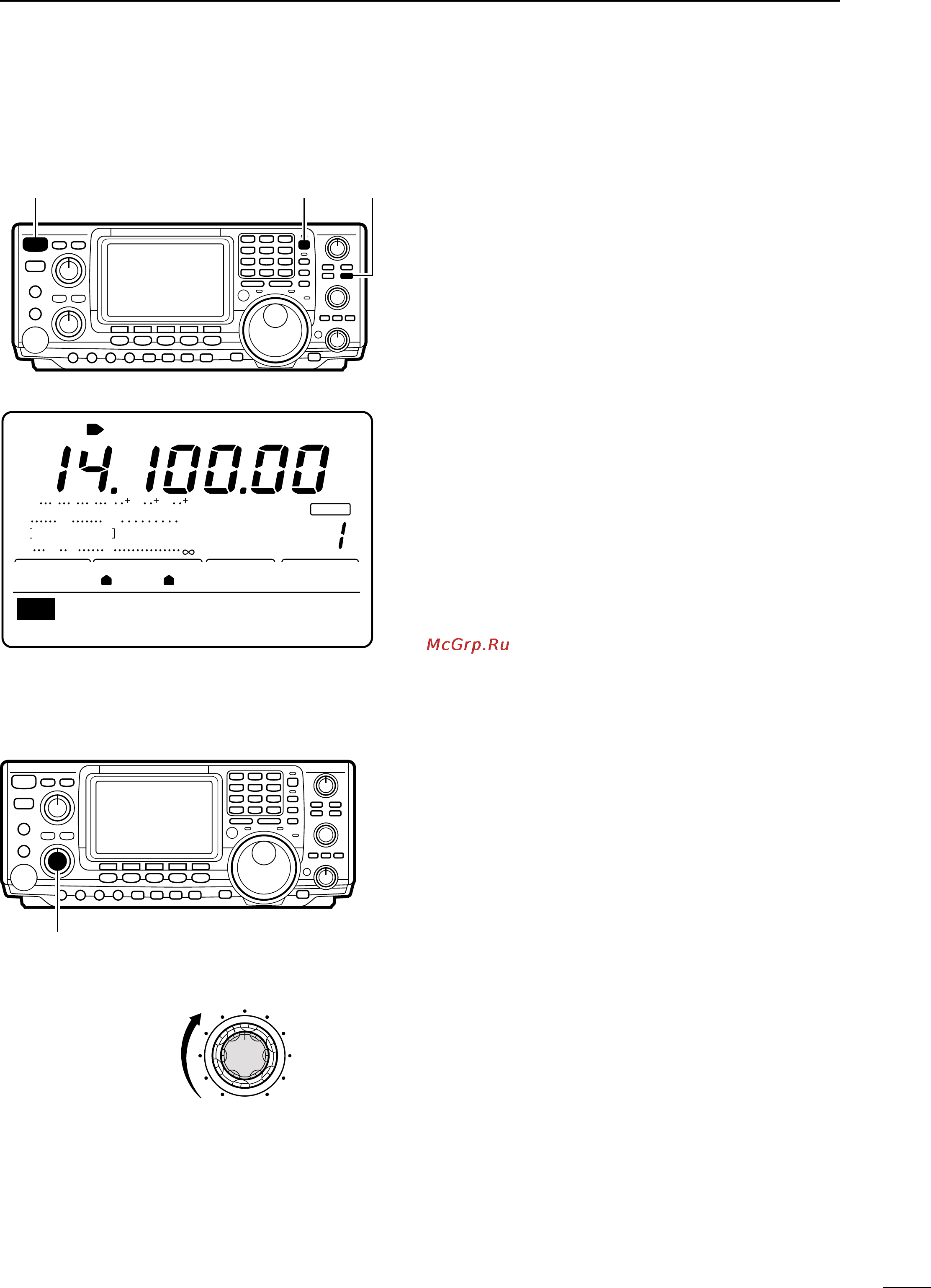

BASIC OPERATION
ı APPLYING POWER
Ç ADJUSTING VOLUME
Rotate [AF] to obtain a comfortable listening level.
• Clockwise rotation increases audio output; counterclock-
wise decreases audio output.
When applying power to the transceiver for the first
time, it’s a good idea to reset the CPU (see p. 81 for
details) as follows:
While pushing [F-INP] + [M-CL], push [POWER] to turn
power ON.
• After the CPU has been reset, turn power ON by pushing
[POWER] only.
• Push [POWER] for 1 sec.to turn power OFF.
[F-INP]
[M-CL]
[POWER]
BLANK
CH
ANT
USB
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
M1
AGCDUPCMPTCNSCP
VFOA
☞ NOTE: When first applying power or when operat-
ing in cold environments, the display may flicker or
appear faint.This is normal and will disappear once
the transceiver has warmed up.
[AF]
Increasing audio
output
