Icom IC-746 [48/88] 5 speech compressor

FUNCTIONS FOR TRANSMIT

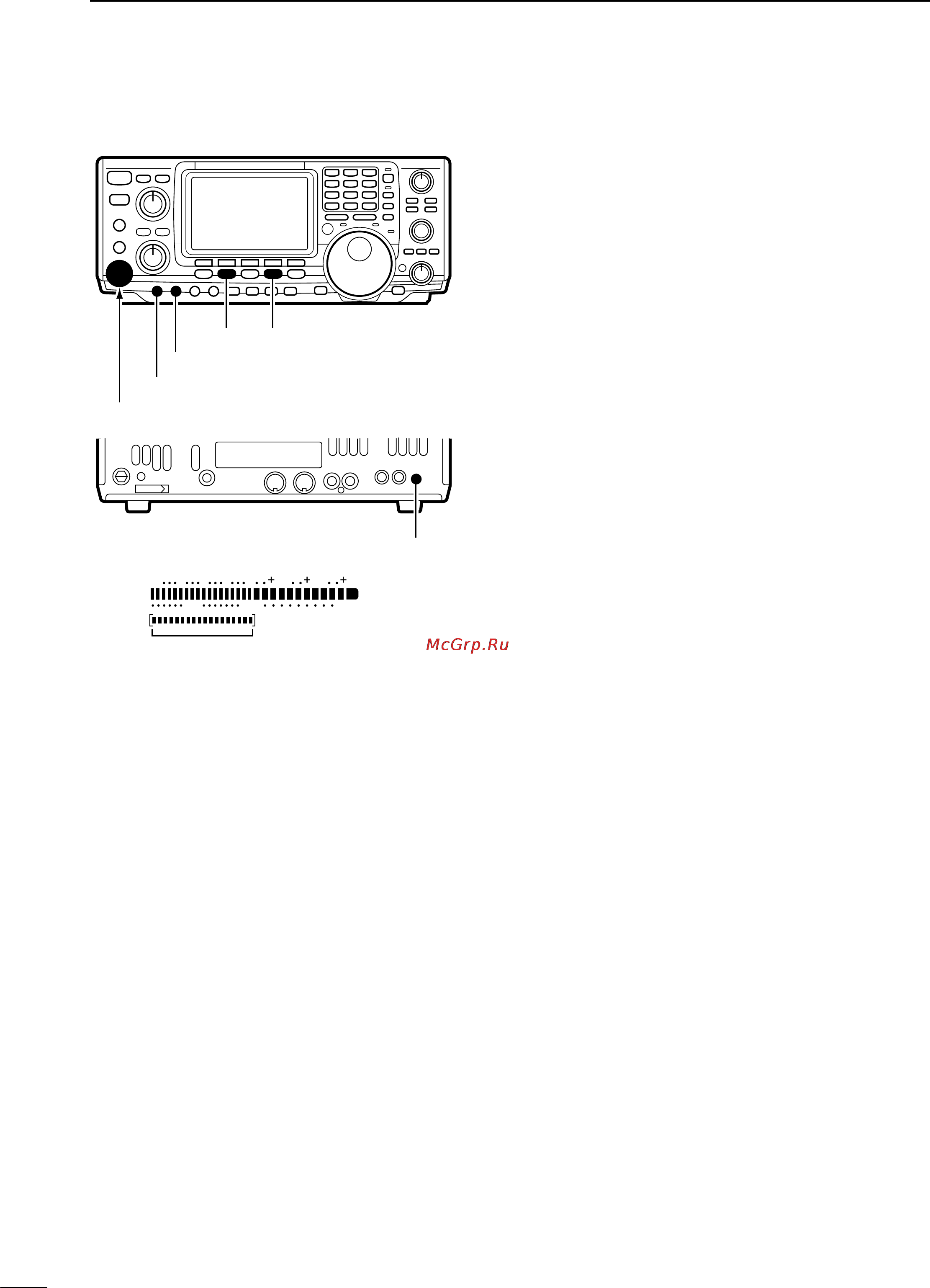

6-5 Speech compressor

[MIC GAIN]

[SSB]

[RF PWR]

Connect microphone here

ALC

20 50

3 5 7 9 20 40 60

100%

ALC zone

[AM/FM]

[COMP GAIN]

The RF speech compressor increases the average RF

output power, improving signal strength and readability

in SSB and AM modes.

➀ Push [SSB] or [AM/FM] to select SSB or AM mode.

➁ While menu set 1 is selected, push [F3](CMP) to

turn the speech compressor ON.

•“COMP” appears when the function is ON.

➂ Set the [MIC GAIN] to the 9 to 12 o’clock position.

➃ While speaking into the microphone, adjust [MIC

GAIN] so that the ALC meter reads within the ALC

zone whether you speak softly or loudly.

➄ Use the monitor function (see previous page) to

check that any distortion to your transmitted audio

is at a minimum.
