Icom IC-746 [60/88] F scan and fine

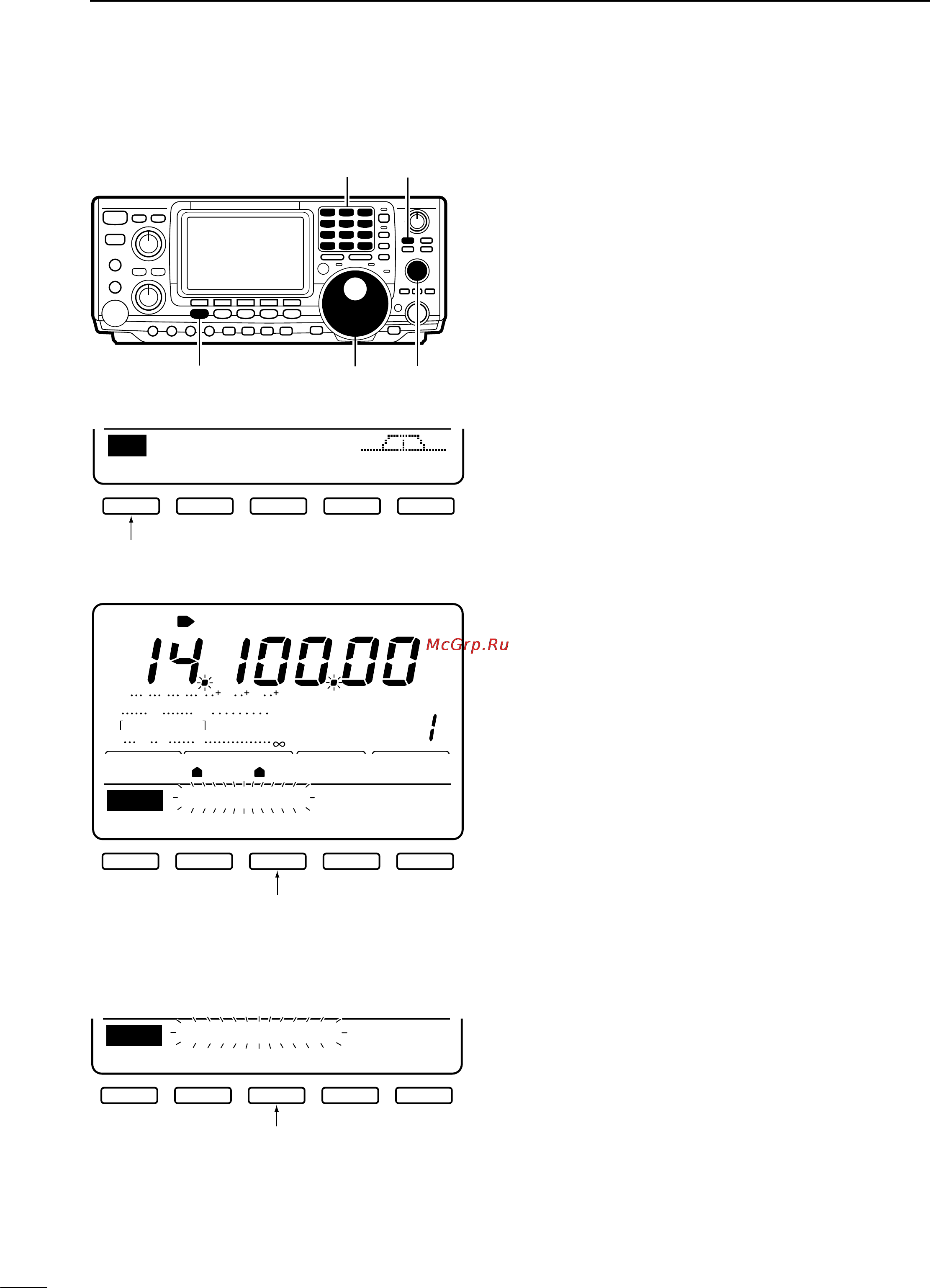

![Icom IC-746 [60/88] F scan and fine](/views2/1074396/page60/bg3c.png)
58
8
SCAN OPERATION
8-5
:
F scan and Fine
:
F scan
CH
VFOA
ANT USB
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
SCN
∂FSCAN
PRO∂FFINSPNSET
F1
F2
F3 F4 F5
Push [F-3] to toggle between
:
F scan and fine
:
F scan.
Push [F-1] to select the scan menu.
[V/M]
Tuning dial [M-CH]
[MENU]
M2
SCNMEMLCDSET
F1
F2
F3 F4 F5
Menu 2
Scan menu
Key pad
10k
+
-
SCN
10k
+
-
F-∂FSCAN
PRO∂FFINSPNSET
F1
F2
F3 F4 F5
Push [F-3] to toggle between :F scan
and Fine :F scan.
Scan menu
:F scan searches on either side of the displayed
memory channel or frequency. The frequency range
searched on either side of the center frequency (mem-
ory channel) is specified by the span.
➀ Push [V/M] to select memory mode or VFO mode,
as desired.
➁ Push [MENU] to select M2.
➂ Push [F1] to select the scan menu.
➃ Push [F4] one or more times to select the desired
span value.
• Selectable span values are ±5 kHz, ±10 kHz, ±20 kHz,
±50 kHz, ±100 kHz, ±500 kHz and ±1 MHz.
➄ In VFO mode, use the keypad or tuning dial to set
the center frequency; in memory mode, rotate [M-
CH] to set the center frequency for memory chan-
nels.
➅ Push [F2] to start/stop :F scan.
• The MHz and kHz decimal points flash during
scan.
• Rotating the tuning dial during scan cancels the
scan.
This is the same as :F scan, except that when a sig-
nal is detected, the scan tuning becomes 10 Hz.
➀ Follow steps ➀ to ➅ above to start :F scan.
➁ During :F scan, push [F3] to toggle between :F
scan and fine :F scan.
➂ Push [F2] to cancel the scan.
■ ABOUT FINE :F SCAN
