26
4
USING DIFFERENT OPERATING MODES
BLANK
CH
VFOA
ANT
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
Normal
NumberStyle
001
F1
F2
F3 F4 F5
CW
F
Set item up/down
Normal
NumberStyle
001
M2
CountUpTrig
001
CLR001
PresentNumber
001

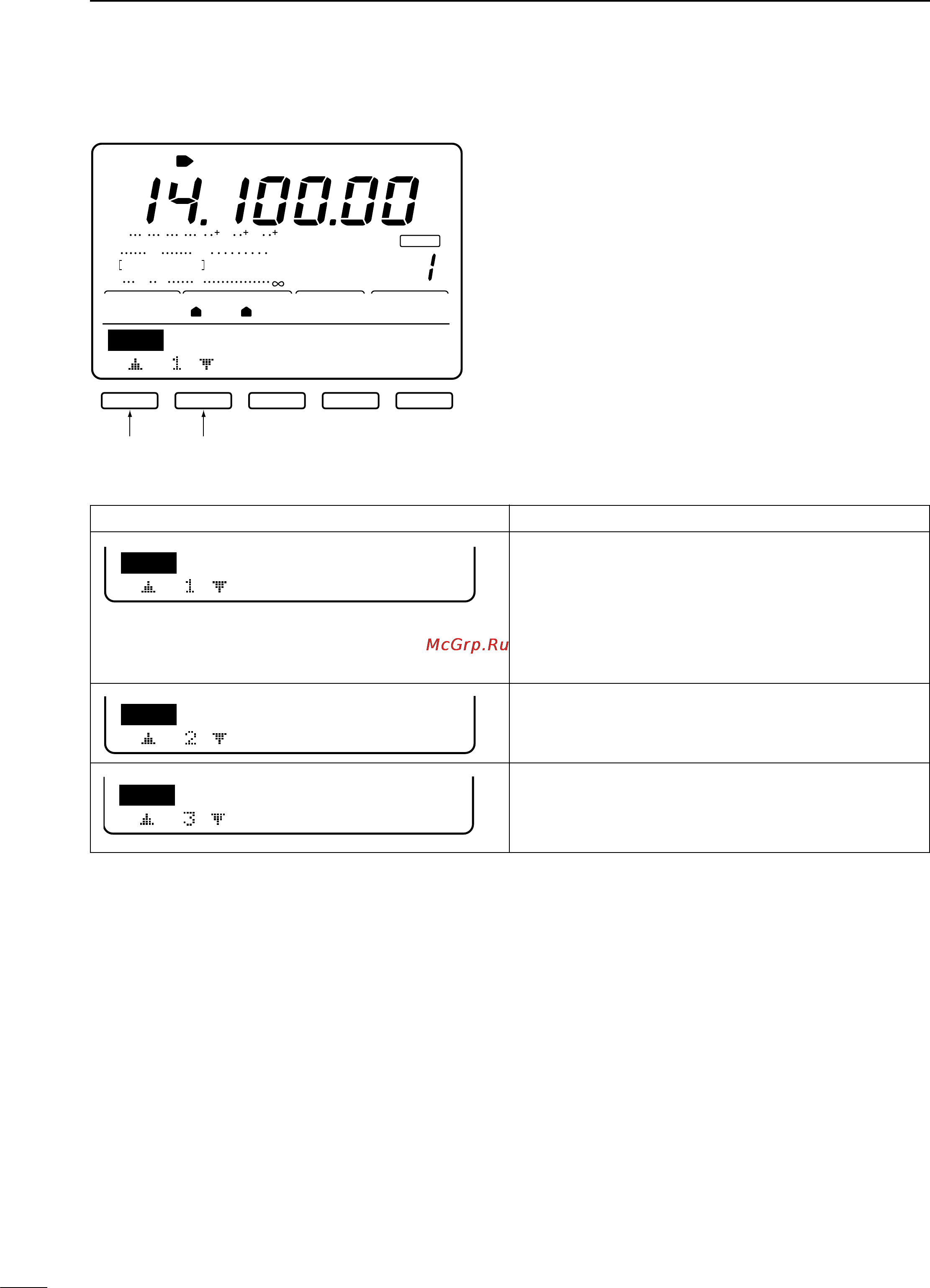

(4) Contact number menu
This menu is used to set the contact (serial) number
and count up trigger, etc.
➀ Push [F1] or [F2] to select the set contents.
➁ Rotate the tuning dial to set the condition.
• See below for details.
➂ Push [MENU] 2 times to return to regular operation
(M1).
This item sets the numbering system used for con-
tact (serial) numbers—normal or morse cut numbers.
• Normal: does not use morse cut numbers (default).
• 190➞ANO: sets 1 as A, 9 as N and Ø as O.
• 190➞ANT: sets 1 as A, 9 as N and Ø as T.
• 90➞NO: sets 9 as N and Ø as O.
• 90➞NT: sets 9 as N and Ø as T.
This item sets the count up trigger channel.
• M1, M2, M3 or M4 can be set.
This item shows the current number for the count up
trigger channel set above.
• Rotate the tuning dial to change the number, or push
[F3](CLR) for 2 sec. to reset the current number to 001.
SET MODE ITEM AND DEFAULT CONDITION DESCRIPTION
