Icom IC-746 [47/88] 4 monitor function
![Icom IC-746 [47/88] 4 monitor function](/views2/1074396/page47/bg2f.png)
45
6

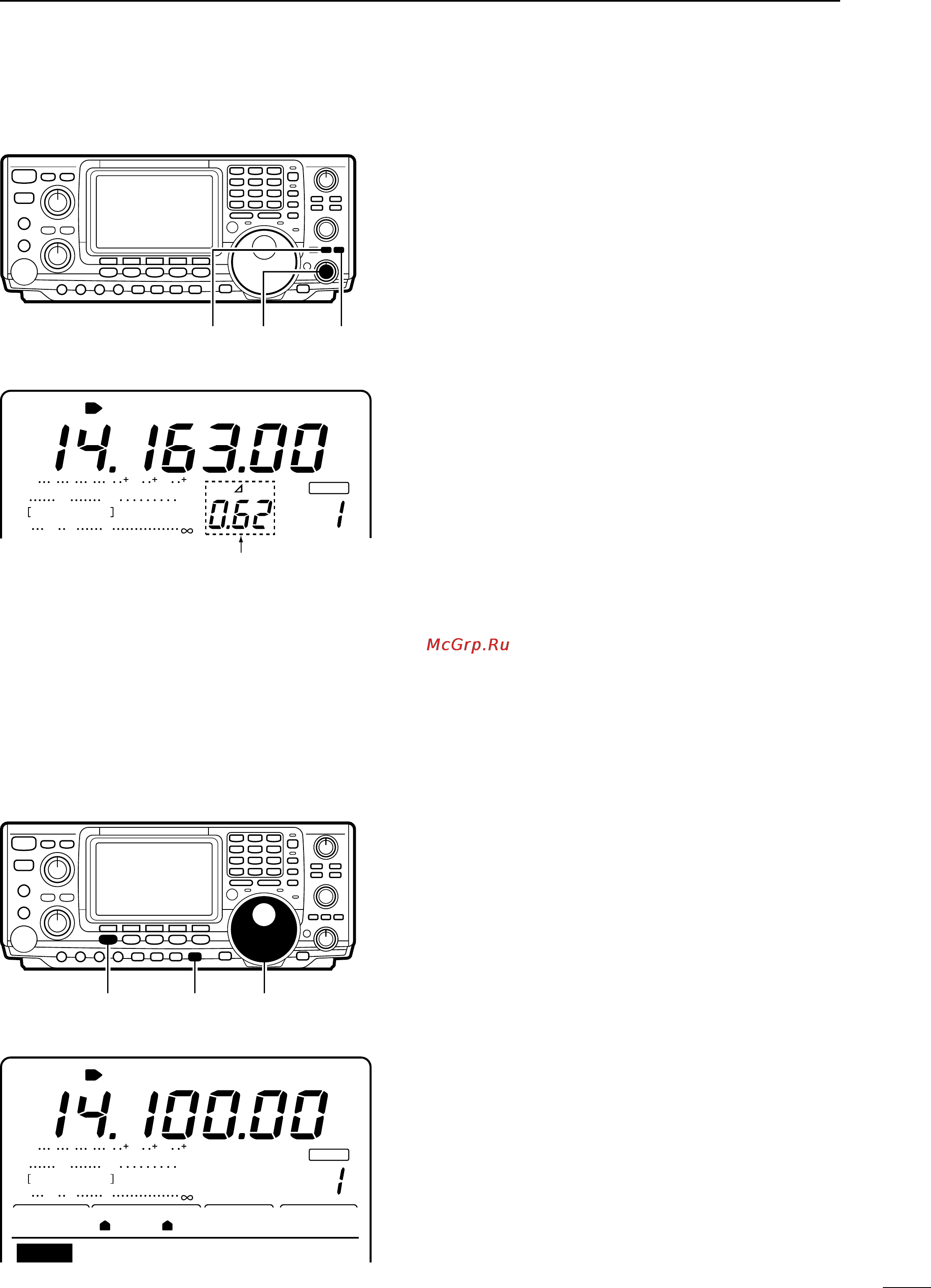

FUNCTIONS FOR TRANSMIT
6-3
:
TX function
[RIT/:TX]
[CLEAR]
[:TX]
BLANK
CH
VFOA
ANT
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
:TX indications
TX
CW
6-4 Monitor function
The monitor function allows you to adjust the quality of
your transmitted signal for maximum readability.
➀ Push [MONITOR] to toggle the monitor function ON
or OFF.
•“MONI” appears when the function is ON.
➁ Set the monitor level.
➥ Push [MONITOR] for 2 sec. to select monitor pro-
gram mode.
➥ Rotate the tuning dial for the clearest audio out-
put while pushing [PTT] and speaking into the mi-
crophone.
➂
Push [MENU] or [MONITOR] to return to menu set 1.
[MONITOR] Tuning dial[MENU]
BLANK
CH
VFOA
ANT
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
S
USB
MONITORLevel
MON
MONI
The :TX functions shifts the transmit frequency up to
±9.99 kHz in 10 Hz steps without moving the receive
frequency.
➀ Push [:TX] to toggle the :TX function ON and
OFF.
•“:TX” appears when the function is ON.
➁ Rotate the [RIT/:TX] control to set the desired :TX
frequency.
• Push [CLEAR] to set the :TX frequency to zero.
➂ To cancel the :TX function, push [:TX] again.
•“:TX” disappears.
• To add or subtract the
:TX frequency to the displayed
frequency, push [
:TX] for 2 sec.
■ :TX MONITOR FUNCTION
When the :TX function is ON, pushing and holding
[XFC] allows you to monitor the operating frequency
directly (:TX is temporarily cancelled).
