![Icom IC-746 [55/88] Assigning memory names](/img/pdf.png)
Icom IC-746 [55/88] Assigning memory names
![Icom IC-746 [55/88] Assigning memory names](/views2/1074396/page55/bg37.png)
53
7
MEMORY CHANNELS
7-9

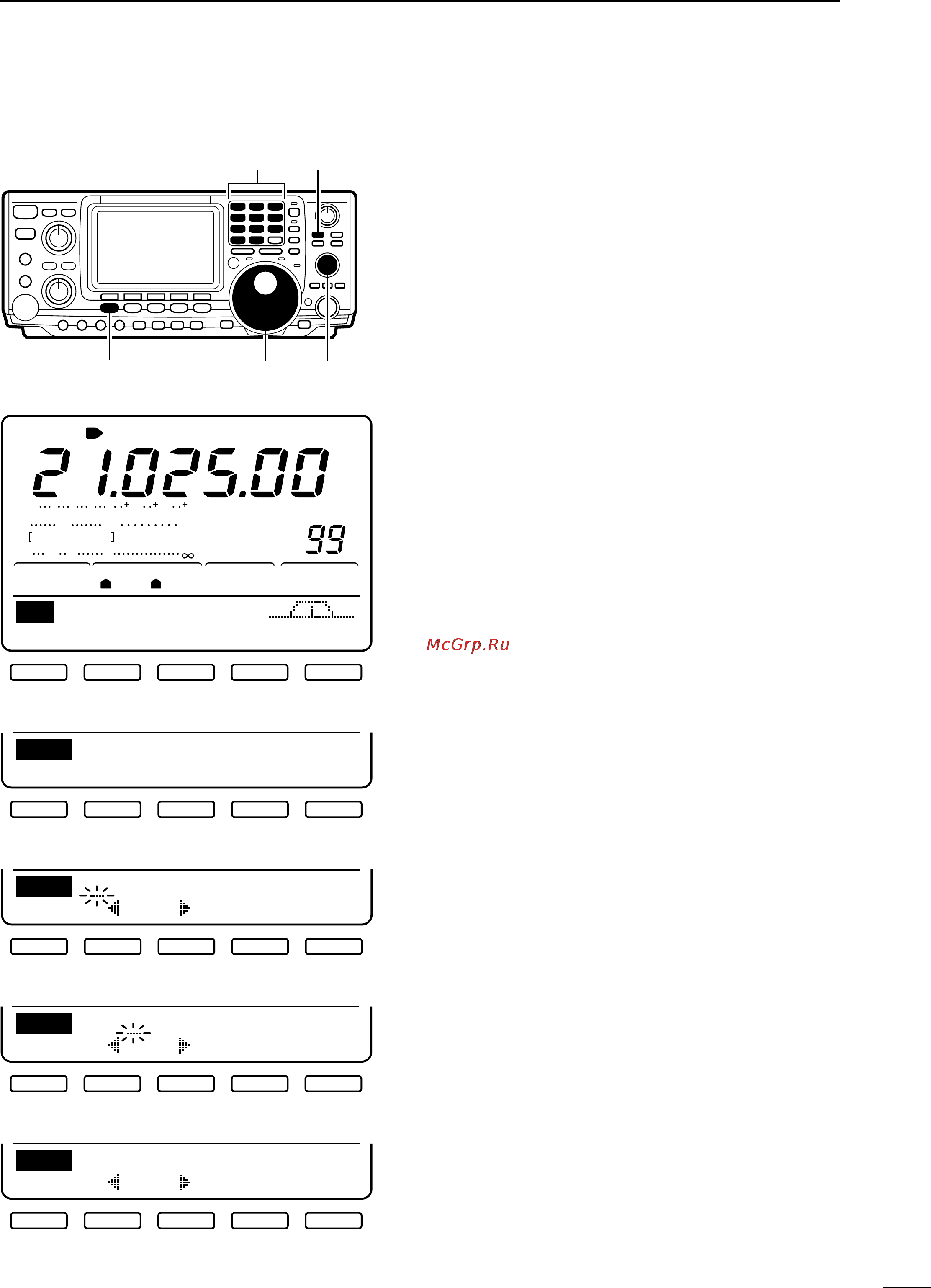

Assigning memory names
CH
ANT
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
1
1
F
CW
F1
F2
F3 F4 F5
EDT
ABC
DELSPC
F1
F2
F3 F4 F5
EDT
ABC
ABC
DELSPC
F1
F2
F3 F4 F5
M2
SCNMEMLCDSET
F1
F2
F3 F4 F5
MEM
21.02500CW
EDT()SEL
MEMO
DX
EDT
DELSPC
F1
F2
F3 F4 F5
DX SPOT
•After completing step ➂
•After completing step ➃
•After completing step ➄
•After completing step ➇
•After completing step ➈
[V/M][0]–[9], [
•
]
Tuning dial [M-CH]
[MENU]
Memory names can be assigned to any memory chan-
nel. Memory names can be up to 9 characters in
length; any of the 127 standard ASCII characters (as
on a computer keyboard) can be used.
[EXAMPLE]: Programming “DX spot” into memory
channel 99.
➀ Push [V/M] to select memory mode, if necessary.
➁ Rotate [M-CH] to select memory channel 99.
➂ Push [MENU] to select menu set 2.
➃ Push [F2](MEM) to select the memory name menu.
➄ Push [F1](EDT) to select the memory edit menu.
➅ Push [F1](ABC) one or more times to select the
type of characters for input.
•“ABC” inputs capital letters A to Z.
•“abc” inputs small letters a to z.
•“etc” is used to input other characters such as punctu-
ation.
➆ Rotate the tuning dial to select the first character for
input.
➇ Push [F3]() or [F2]() to move the cursor forwards or
backwards, respectively.
• [F5](SPC) inserts a space and [F4](DEL) deletes a
character.
➈ Repeat steps ➅ to ➇ to input the remainder of the
name.
➉ Push [MENU] to set the memory name and return
to the memory name menu.
• Push [MENU] 2 more times to return to menu set 1.
