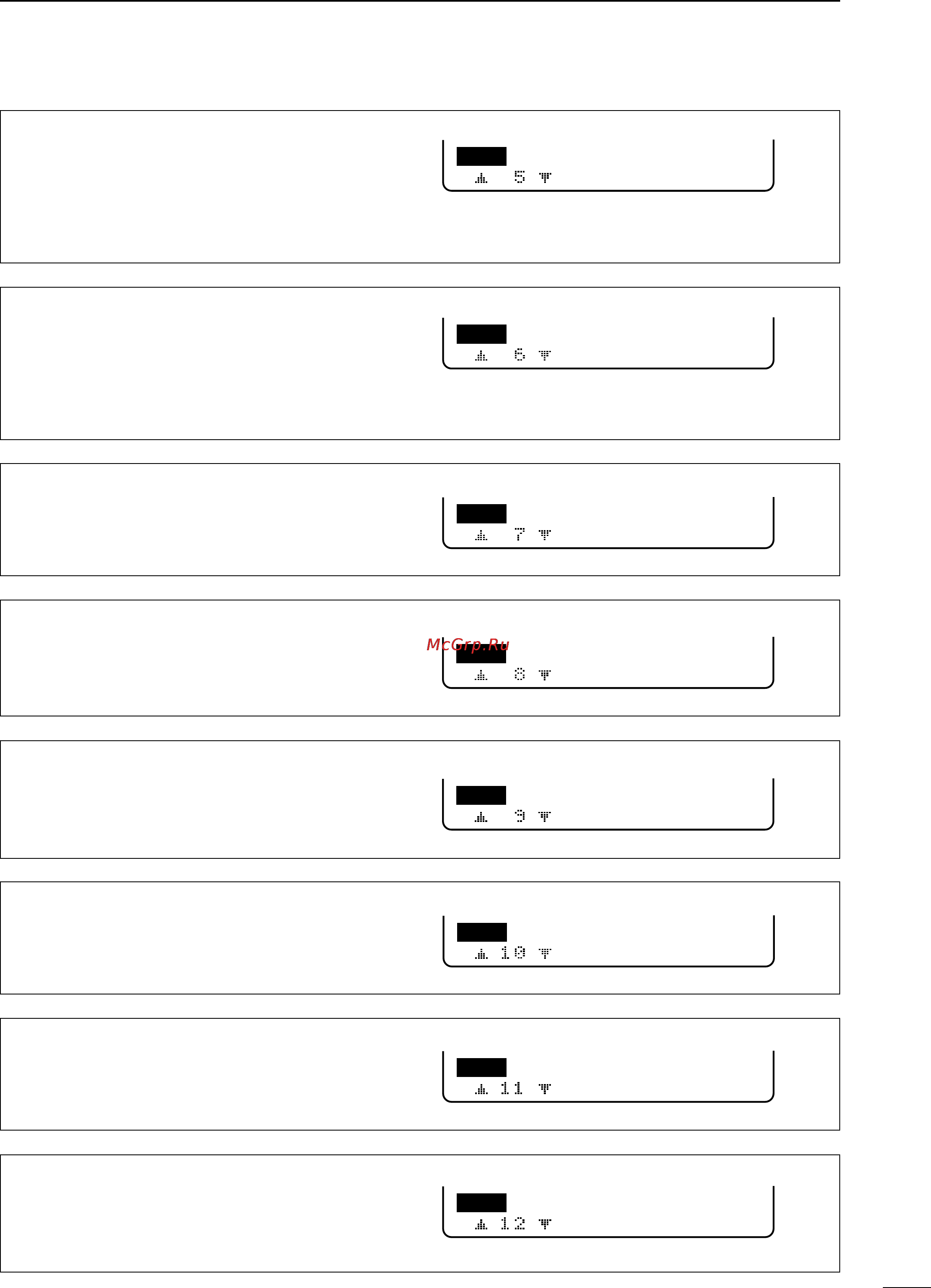

61
10
SET MODE
SET
RF/SQLVRType
RF+SQL
SET
ON
MeterPeakHold
SET
ON
QuickSPLIT
SET
SPLITOffset
0.000MHz
SET
Filter(9MHz-2)
None
SET
Filter(455kHz)
None
SET
Beep
ON
SET
BandEdgeBeep
ON
5. Filter (9MHz-2)
When an optional filter is installed in the 9 MHz filter
socket (2), this selection is necessary, otherwise the
filter cannot be selected.
FL-103, FL223, FL-100, FL-232 or FL-101 can be se-
lected. See p. 42 for details.
6. Filter (455kHz)
When an optional filter is installed in the 455 kHz filter
socket, this selection is necessary, otherwise the fil-
ter cannot be selected.
FL-257, FL-96, FL-222, FL-52A or FL-53A can be se-
lected. See p. 42 for details.
7. BeeP
A beep sounds each time a switch is pushed to con-
firm it.This function can be turned OFF for silent op-
eration. See item 1 for setting the volume level.
8. Band Edge Beep
A beep sounds each when an operating frequency
enters or exits an amateur band.This functions inde-
pendent of the confirmation beep setting (above). See
item 1 for setting the volume level.
9. RF/SQL VR Type
The [RF/SQL] control can be set as the RF/squelch
control (default), the RF gain control only (squelch is
fixed as open) or the squelch control only (RF gain is
fixed at maximum).
10. Meter Peak Hold
This item turns the meter peak hold function ON and
OFF. When set to ON, peak meter readings are dis-
played for about 0.5 sec.
11. Quick SPLIT
When this item is set to ON, pushing [SPLIT] for 2
sec. activates the quick split function (p. 48).
12. SPLIT Offset
This item sets the offset (difference between transmit
and receive frequencies) for the quick split function.
The offset can be set from –4 MHz to +4 MHz in 1
kHz steps.
